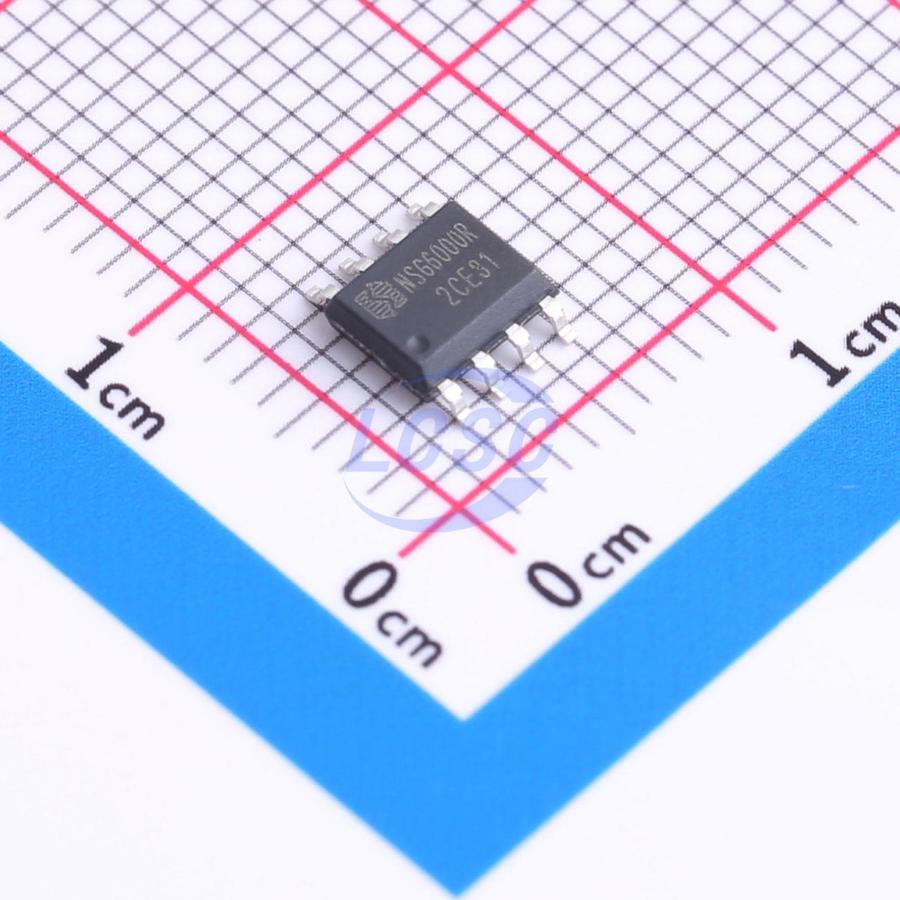

NSG6000R
Low Side High Side Gate Driver IC MOSFET SOP-8
High-voltage and high-speed power MOSFET high-side and low-side driver IC
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG6000R
- Store part #
- C41414487
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,185 in stock
#C41414487
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.58 | ₹107.90 |
| 50+ | ₹16.96 | ₹848.00 |
| 150+ | ₹14.99 | ₹2,248.50 |
| 500+ | ₹12.52 | ₹6,260.00 |
| 2,500+ | ₹11.42 | ₹28,550.00 |
| 4,000+ | ₹10.76 | ₹43,040.00 |
5 × ₹21.58
₹107.90
excl. GST
₹127.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG6000R
₹107.90 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 250ns
- High Level Delay Time
- 150ns
- Quiescent Current
- 100uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 10V~20V
- Driven Configuration
- High Side;Low Side
- Operating Temperature
- -40℃~+125℃
- Rise Time
- 2.8us
- Fall Time
- 550ns
- Features
- Dead-time control;Interleaved conduction protection
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.174 g
Overview
The NSG6000R is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC. It features independent high-side and low-side referenced output channels, suitable for direct drive of MOSFETs up to 5A. The high-low voltage compatible process enables monolithic integration of both high- and low-side gate drive circuits, with logic input levels compatible with CMOS or LSTTL logic outputs as low as 3.3V. The floating channel can be used to drive high-side N-channel power MOSFETs, with a maximum operating voltage of up to 600V on the floating ground channel. Available in SOP8 package, it operates over a temperature range of -40°C to 125°C.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Inverter Drive
Key features
- Floating high-side channel with bootstrap operation
- Maximum chip voltage rating +650V
- Compatible with 3.3V, 5V, and 15V input logic
- dV/dt immunity up to ±50 V/ns
- Vs negative bias capability down to -9V
- Integrated VCC and VBS undervoltage lockout
- VCC UVLO threshold 8.7V/7.7V
- VBS UVLO threshold 8.2V/7.3V
- Integrated gate resistor, suitable for MOSFETs up to 5A
- Cross-conduction prevention
- Dead time 540ns
- Wide temperature range -40°C ~ 125°C
- RoHS compliant
- SOP8 (S)
