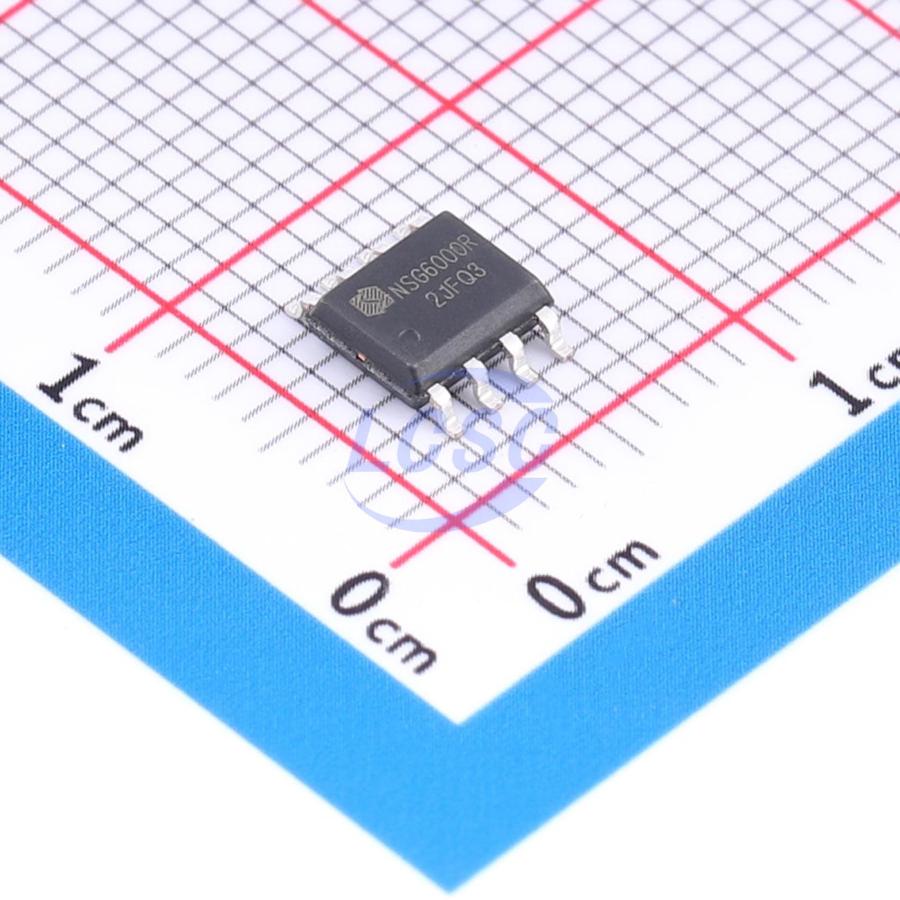

NSG6000R
10V~20V SOP-8 Gate Drivers
- Manufacturer
- NCE
- Manufacturer part #
- NSG6000R
- Store part #
- C53436445
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,800 in stock
#C53436445
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.24 | ₹66.20 |
| 50+ | ₹12.98 | ₹649.00 |
| 150+ | ₹12.79 | ₹1,918.50 |
| 500+ | ₹12.62 | ₹6,310.00 |
5 × ₹13.24
₹66.20
excl. GST
₹78.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG6000R
₹66.20 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 100uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side;High Side
- Rise Time
- 2.8us
- Fall Time
- 550ns
- Features
- Undervoltage Protection
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.337 g
Overview
NSG6000R is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC. It features independent high-side and low-side referenced output channels, suitable for direct drive of MOSFETs within 5A. Fabricated using a high- and low-voltage compatible process, the high- and low-side gate drive circuits are integrated on a single chip. Logic input levels are compatible with CMOS or LSTTL logic output levels as low as 3.3V. The floating channel can be used to drive high-side N-channel power MOSFETs, with a maximum floating supply voltage of 600V. Housed in a SOP8 package, it operates over a temperature range of -40°C to 125°C.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Inverter Drive
Key features
- Bootstrap-operated floating high-side channel
- Maximum chip voltage rating: +650V
- Compatible with 3.3V, 5V, and 15V input logic
- dVs/dt immunity up to ±50V/ns
- Vs negative bias capability down to -9V
- Integrated VCC and VBS UVLO — VCC UVLO threshold 8.7V/7.7V, VBS UVLO threshold 8.2V/7.3V
- Integrated gate resistor, suitable for MOSFETs up to 5A
- Cross-conduction prevention — dead time 540ns
- Wide temperature range: -40°C ~ 125°C
- RoHS-compliant SOP8 (S) package
