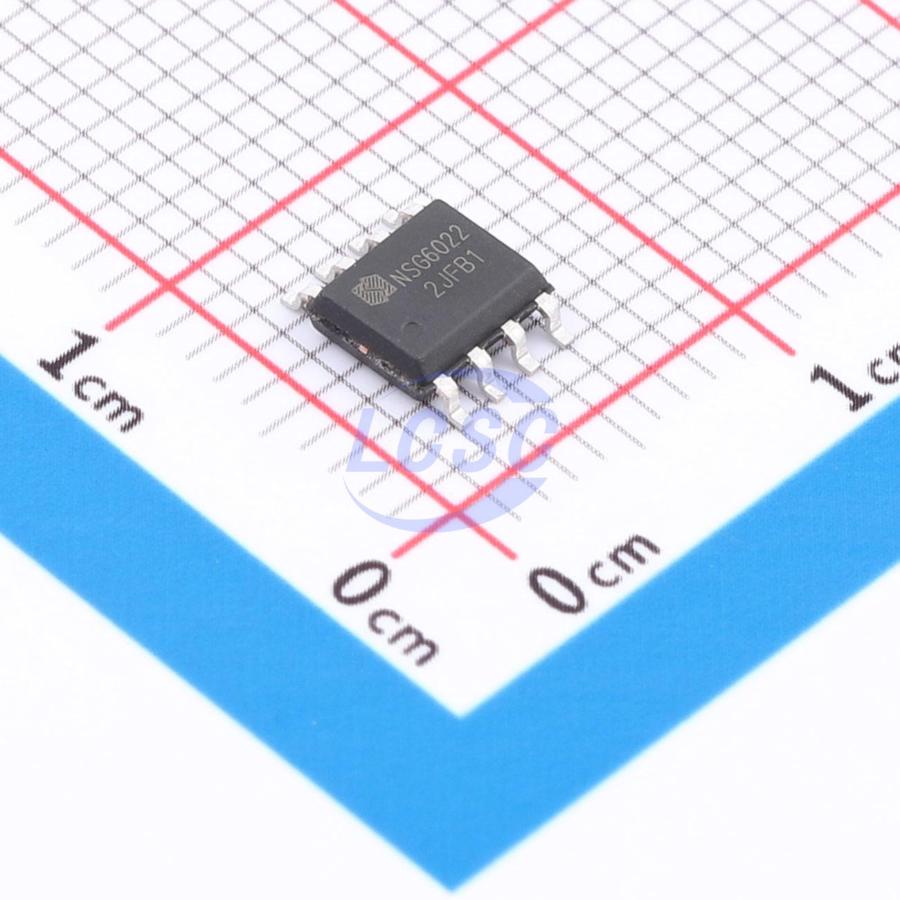

NSG6022
5V~20V 5A 4.5A SOP-8 Gate Drivers
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG6022
- Store part #
- C52975932
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,189 in stock
#C52975932
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.48 | ₹83.48 |
| 10+ | ₹67.66 | ₹676.60 |
| 30+ | ₹59.63 | ₹1,788.90 |
| 100+ | ₹51.82 | ₹5,182.00 |
| 500+ | ₹47.06 | ₹23,530.00 |
| 1,000+ | ₹44.66 | ₹44,660.00 |
1 × ₹83.48
₹83.48
excl. GST
₹98.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG6022
₹83.48 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 260uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 5V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 5A
- Rise Time
- 15ns
- Fall Time
- 10ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 4.5A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.253 g
Overview
The NSG6022 is a high-voltage, high-speed half-bridge gate driver IC featuring two independent channels for driving power MOSFETs and IGBTs. It integrates high-side and low-side UVLO, overvoltage clamp, and other protection circuits, with high-current pulse output capability. Logic inputs are compatible with CMOS or LSTTL logic levels as low as 3.3V. Peak output current reaches up to 4.5A, and the floating channel supports a maximum operating voltage of 700V. Suitable for driving N-channel high-voltage power MOSFETs, IGBTs, and similar devices.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Micro Inverter Driver
Key features
- Floating channel for bootstrap operation
- Maximum operating voltage up to 700V
- Compatible with 3.3V, 5V, and 15V input logic
- dV/dt immunity up to ±50 V/nsec
- Vs negative voltage tolerance down to -11V
- Gate drive voltage: 5V to 20V
- High- and low-side UVLO
- High-side UVLO positive threshold 4.5V
- High-side UVLO negative threshold 4.0V
- Low-side UVLO positive threshold 4.0V
- Low-side UVLO negative threshold 3.7V
- Turn-on/turn-off propagation delay: Ton/Toff = 150ns/150ns
- Cross-conduction prevention: dead time 200ns
- High- and low-side delay matched
- Drive current capability: source/sink = 4.5A/5.0A
- RoHS-compliant SOP8 (S) package
