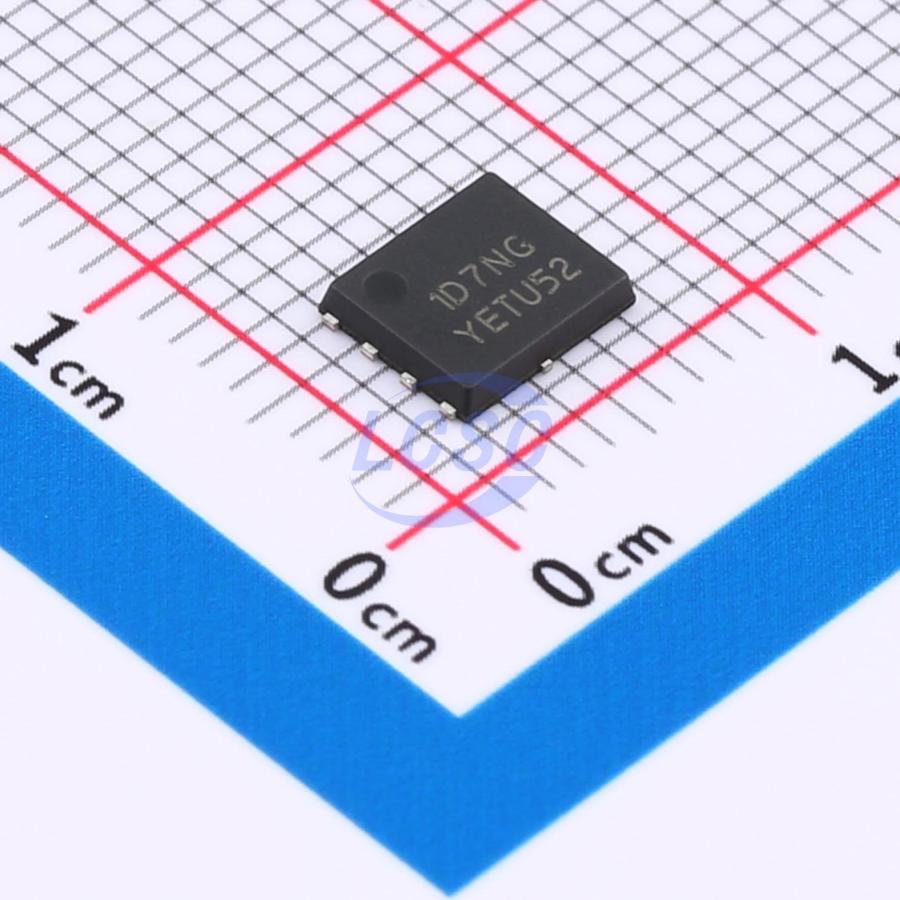

NTMFS1D7N03CGT1G
N-Channel 30V 170A 87W Surface Mount DFN-5(5.9x4.9)
DFN-5(5.9x4.9)ROHS3 CompliantActive
MOSFET N-CH 30V 170A DFN-5(5.9x4.9)
- Manufacturer
- onsemi
- Manufacturer part #
- NTMFS1D7N03CGT1G
- Store part #
- C2902061
- Package / case
- DFN-5(5.9x4.9)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C2902061
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹208.28 | ₹208.28 |
| 10+ | ₹205.49 | ₹2,054.90 |
| 30+ | ₹203.56 | ₹6,106.80 |
| 100+ | ₹201.61 | ₹20,161.00 |
1 × ₹208.28
₹208.28
excl. GST
₹245.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NTMFS1D7N03CGT1G
₹208.28 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.77nF
- Ciss-Input Capacitance
- 3.78nF
- Pd - Power Dissipation
- 87W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 170A
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 1.74mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 48nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.395 g
Overview
Applications
- Hot Swap Application
- Power Load Switch
- Battery Management and Protection
Key features
- Wide SOA to Improve Inrush Current Management
- Advanced Package (5x6 mm) with Excellent Thermal Conduction
- Ultra Low RDS(on) to Improve System Efficiency
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
