onsemiDatasheet (PDF)

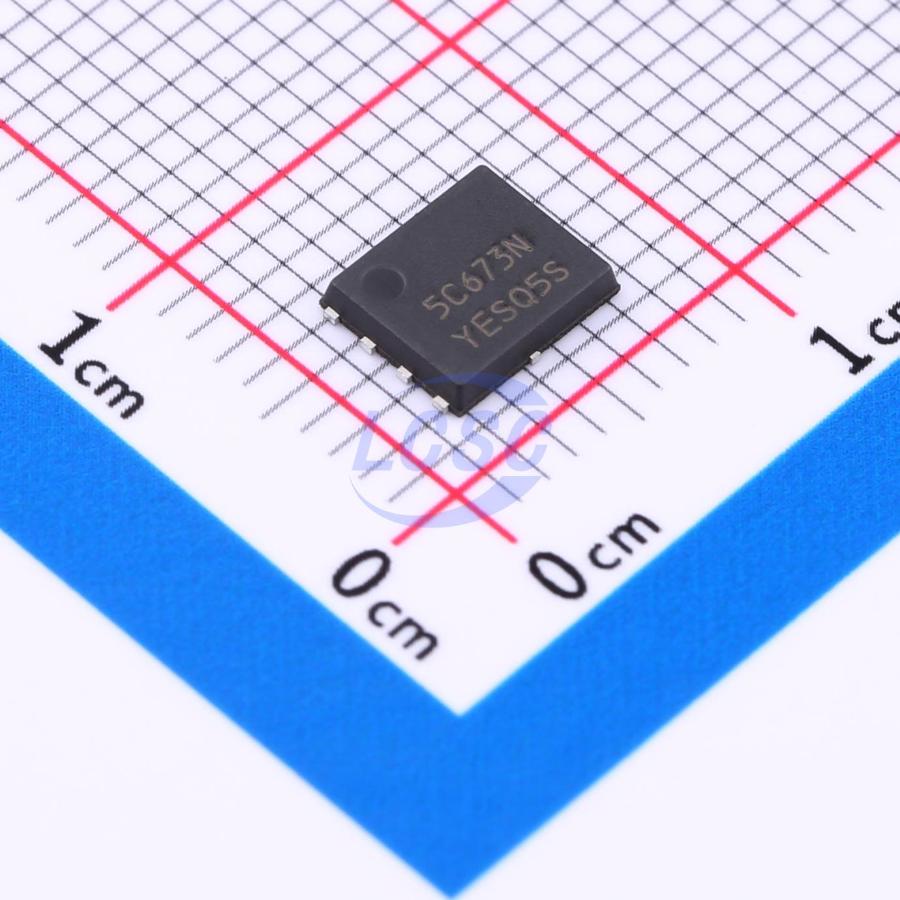

NTMFS5C673NT1G
N-Channel 60V 50A 46W DFN5(5x6)
DFN5(5x6)ROHS3 CompliantActive
MOSFET N-CH 60V 50A DFN5(5x6)
- Manufacturer
- onsemi
- Manufacturer part #
- NTMFS5C673NT1G
- Store part #
- C900313
- Package / case
- DFN5(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
99 in stock
#C900313
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹141.69 | ₹141.69 |
| 10+ | ₹138.89 | ₹1,388.90 |
| 30+ | ₹136.96 | ₹4,108.80 |
| 100+ | ₹135.01 | ₹13,501.00 |
| 102+ | ₹120.15 | ₹12,255.30 |
1 × ₹141.69
₹141.69
excl. GST
₹167.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NTMFS5C673NT1G
₹141.69 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 465pF
- Ciss-Input Capacitance
- 680pF
- Pd - Power Dissipation
- 46W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 50A
- Reverse Transfer Capacitance (Crss)
- 6pF
- RDS(on)
- 10.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9.6nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
Applications
- CPU power supply - DC-DC converter
Key features
- Small Footprint (5x6 mm) for Compact Design
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- These Devices are Pb-Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSC057N08NS3G-TP#C19829611TECH PUBLIC · DFN-8(5x6) | TECH PUBLIC | DFN-8(5x6) | 297 | ₹105.19 · 297 in stock | View |
 | NTMFS5C673NLT1G#C604444onsemi · DFN-5(4.9x5.9) | onsemi | DFN-5(4.9x5.9) | 788 | ₹79.06 · 788 in stock | View |
 | NVMFS6D1N08HT1G#C900463onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 40 | ₹433.11 · 40 in stock | View |
 | NVMFS6H818NWFT1G#C900469onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 4 | ₹415.26 · 4 in stock | View |
| NVMFS6H848NT1G#C900480onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 81 | ₹215.42 · 81 in stock | View | |
