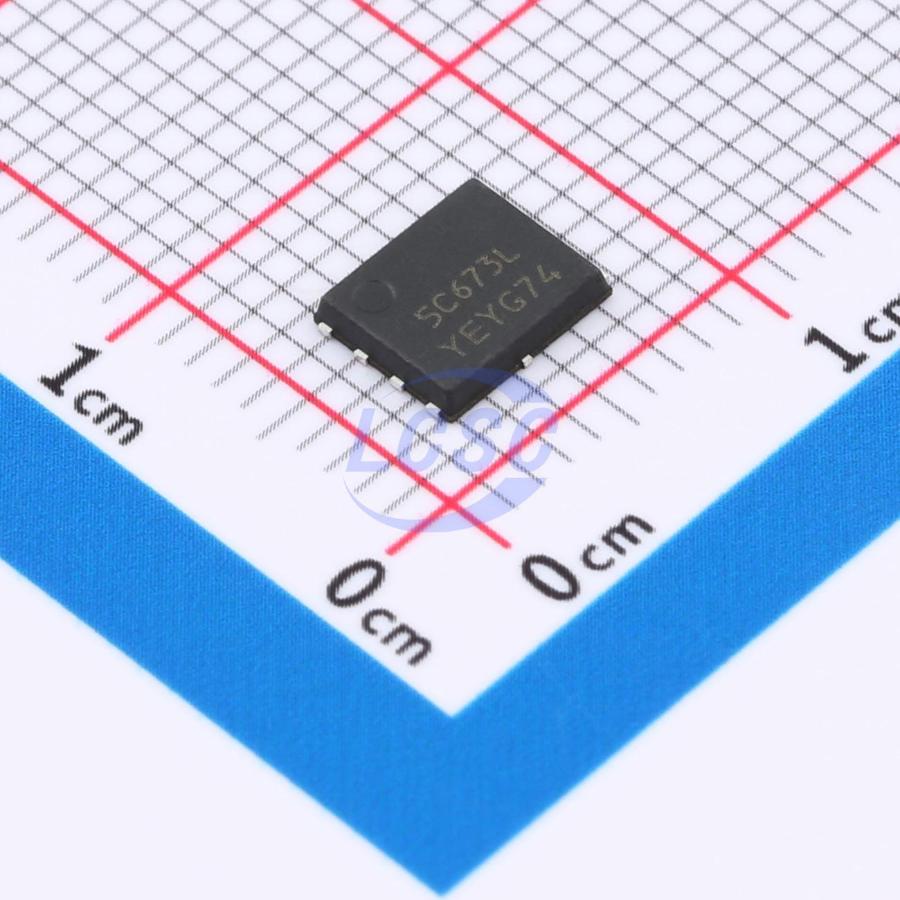

NTMFS5C673NLT1G
46W 60V 50A 9.2mΩ@10V 1 N-channel N-Channel DFN-5(4.9x5.9) Single FETs, MOSFETs RoHS
DFN-5(4.9x5.9)ROHS3 CompliantActive
MOSFET 60V 50A DFN-5(4.9x5.9)
- Manufacturer
- onsemi
- Manufacturer part #
- NTMFS5C673NLT1G
- Store part #
- C604444
- Package / case
- DFN-5(4.9x5.9)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
788 in stock
#C604444
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.06 | ₹79.06 |
| 10+ | ₹63.38 | ₹633.80 |
| 30+ | ₹55.54 | ₹1,666.20 |
| 100+ | ₹47.92 | ₹4,792.00 |
| 500+ | ₹43.13 | ₹21,565.00 |
| 1,500+ | ₹40.95 | ₹61,425.00 |
1 × ₹79.06
₹79.06
excl. GST
₹93.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NTMFS5C673NLT1G
₹79.06 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 450pF
- Ciss-Input Capacitance
- 880pF
- Pd - Power Dissipation
- 46W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 50A
- Reverse Transfer Capacitance (Crss)
- 11pF
- RDS(on)
- 9.2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9.5nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.166 g
Overview
This power MOSFET is manufactured using Maple Semi's advanced planar stripe DMOS technology. This advanced technology is specially designed to minimize on-resistance, deliver superior switching performance, and withstand high-energy pulses in avalanche and commutation modes. These devices are ideal for high-efficiency switch-mode power supplies and active power factor correction based on half-bridge topologies.
Applications
- High-efficiency switch-mode power supply
- Active power factor correction based on half-bridge topology
Key features
- Compact package (5x6 mm) for space-constrained designs
- Low RDS(on) for minimized conduction losses
- Low QG and capacitance for minimized switching losses
- Lead-free, RoHS compliant
