onsemiDatasheet (PDF)

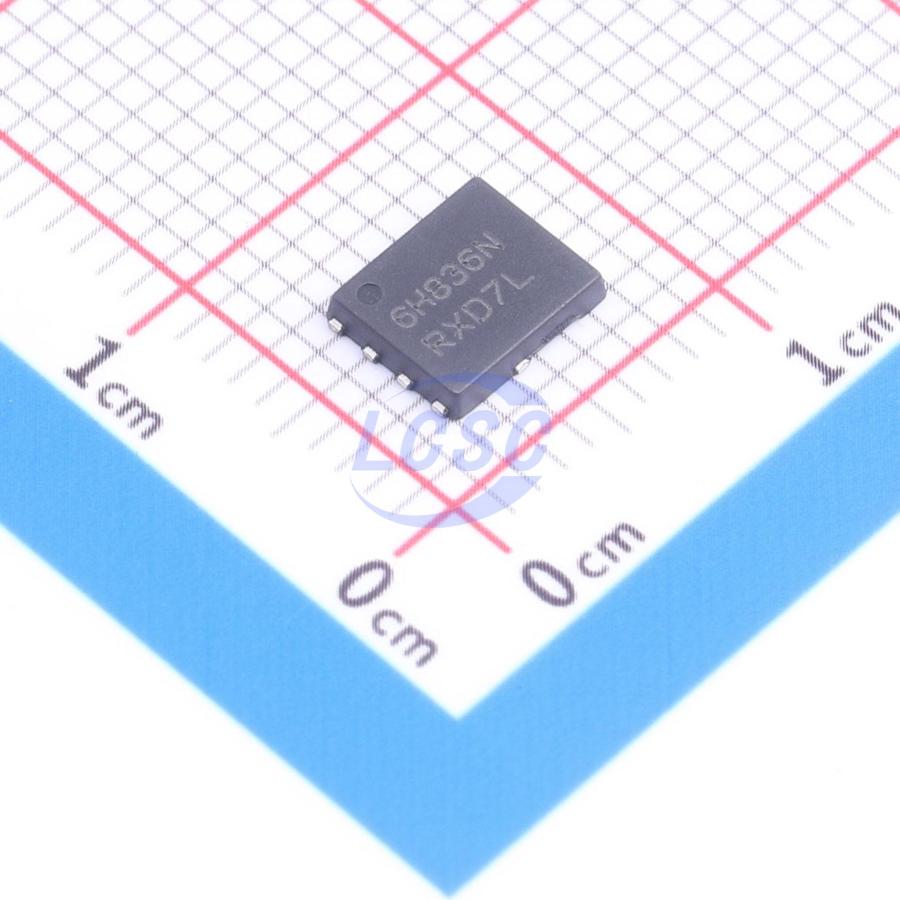

NVMFS6H836NT1G
89W 80V 74A 5.6mΩ@10V 1 N-channel N-Channel DFN-5(5.9x4.9) Single FETs, MOSFETs RoHS
DFN-5(5.9x4.9)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NVMFS6H836NT1G
- Store part #
- C900476
- Package / case
- DFN-5(5.9x4.9)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19 in stock
#C900476
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹467.71 | ₹467.71 |
| 10+ | ₹459.54 | ₹4,595.40 |
| 30+ | ₹454.17 | ₹13,625.10 |
| 100+ | ₹448.58 | ₹44,858.00 |
1 × ₹467.71
₹467.71
excl. GST
₹551.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVMFS6H836NT1G
₹467.71 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 230pF
- Ciss-Input Capacitance
- 1.64nF
- Pd - Power Dissipation
- 89W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 74A
- Reverse Transfer Capacitance (Crss)
- 8pF
- RDS(on)
- 5.6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.288 g
Overview
Key features
- Compact 5x6 mm package for space-constrained designs
- Low RDS(on) to minimize conduction losses
- Low gate charge QG and capacitance to minimize drive losses
- NVMFS6H836NWF - solderable flank option for optical inspection
- AEC-Q101 qualified, PPAP documentation available
- Lead-free, halogen-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIR826ADP#C19829612TECH PUBLIC · PDFN-8L(5x6) | TECH PUBLIC | PDFN-8L(5x6) | 5,136 | ₹147.08 · 5,136 in stock | View |
 | NTMFS6H836NLT1G#C900318onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 51 | ₹344.42 · 51 in stock | View |
| NVMFS6H836NLWFT1G#C900475onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 26 | ₹199.53 · 26 in stock | View | |
 | NVMFS6D1N08HT1G#C900463onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 40 | ₹433.11 · 40 in stock | View |
 | NVMFS6H818NWFT1G#C900469onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 4 | ₹415.26 · 4 in stock | View |
