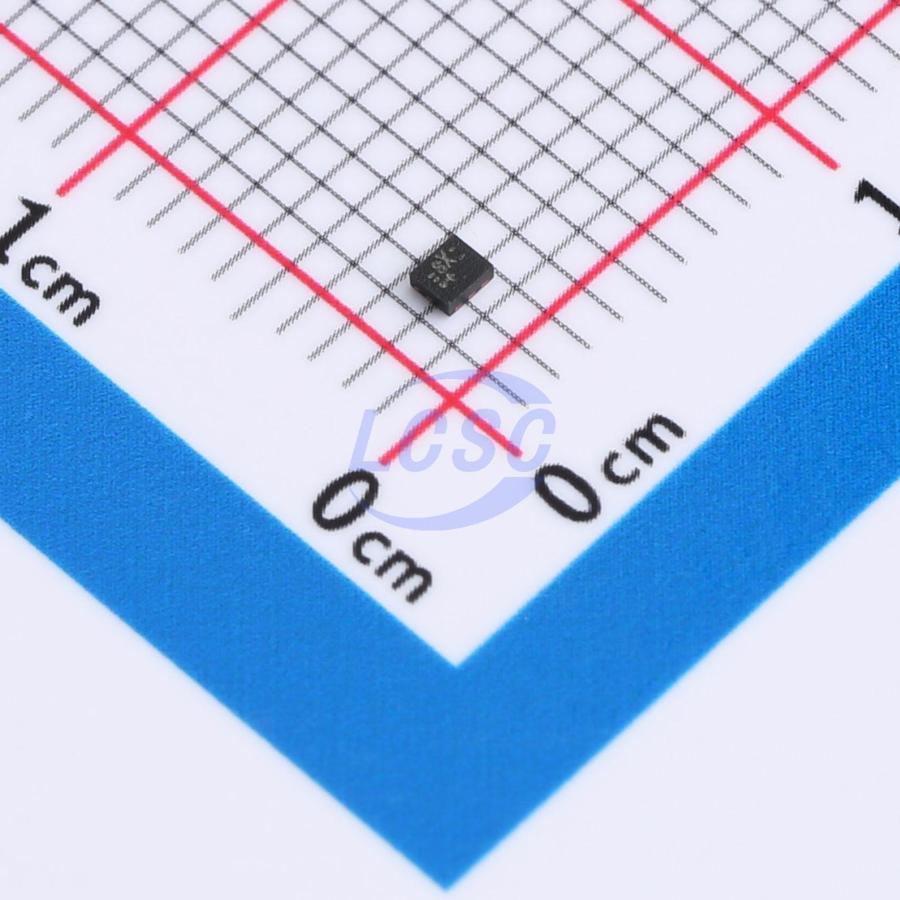

NTSX2102GU8H

The NTSX2102 is a 2-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation. It features two 2-bit input-output ports (An and Bn), one output enable input (OE) and two supply pins (VCC(A) and VCC(B)). Both supplies can be supplied at any voltage between 1.65 V and 5.5 V. This flexibility makes the device suitable for translating between any of the voltage nodes (1.8 V, 2.5 V, 3.3 V, and 5.0 V). Pins An and OE are referenced to VCC(A) and pins Bn are referenced to VCC(B). A LOW level at pin OE causes the outputs to assume a high-impedance OFF state. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.

Applications

• I2C/SMBus
• UART
• GPIO

Key features

• Wide supply voltage range: – VCC(A): 1.65 V to 5.5 V and VCC(B): 1.65 V to 5.5 V
• Maximum data rates: – 50 Mbit/s
• IOFF circuitry provides partial power-down mode operation
• Inputs accept voltages up to 5.5 V
• ESD protection: – HBM JS-001 Class 2 exceeds 2000 V – CDM JESD22-C101E exceeds 2000 V
• Latch-up performance exceeds 100 mA per JESD 78B Class II
• Multiple package options
• Specified from -40 °C to +85 °C
