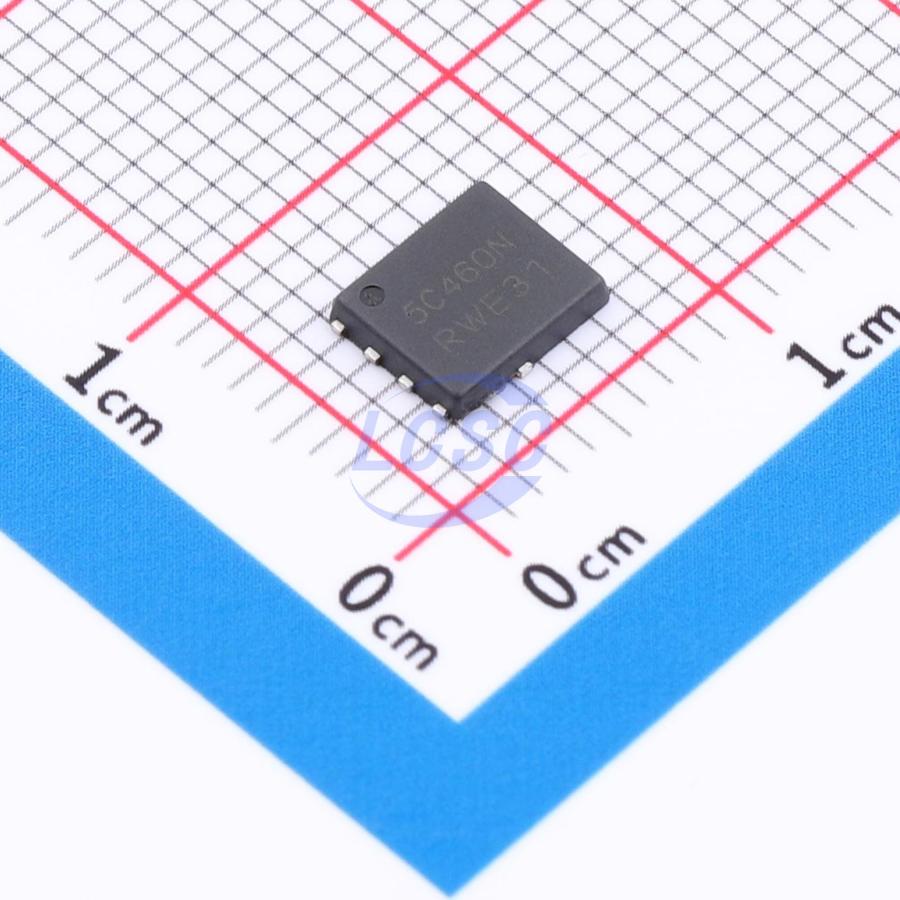

NVMFS5C460NT1G
50W 40V 71A 5.3mΩ@10V 1 N-channel N-Channel DFN-5(5.9x4.9) Single FETs, MOSFETs RoHS
DFN-5(5.9x4.9)ROHS3 CompliantActive
MOSFET N-CH 40V 71A DFN-5(5.9x4.9)
- Manufacturer
- onsemi
- Manufacturer part #
- NVMFS5C460NT1G
- Store part #
- C900437
- Package / case
- DFN-5(5.9x4.9)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C900437
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹458.47 | ₹458.47 |
| 10+ | ₹452.02 | ₹4,520.20 |
| 30+ | ₹447.72 | ₹13,431.60 |
| 100+ | ₹443.64 | ₹44,364.00 |
1 × ₹458.47
₹458.47
excl. GST
₹540.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVMFS5C460NT1G
₹458.47 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 530pF
- Ciss-Input Capacitance
- 1nF
- Pd - Power Dissipation
- 50W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 71A
- Reverse Transfer Capacitance (Crss)
- 22pF
- RDS(on)
- 5.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 16nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.22 g
Overview
Key features
- Compact package (5x6 mm) for space-constrained designs
- Low on-resistance RDS(on) for reduced conduction losses
- Low gate charge QG and capacitance for reduced driving losses
- NVMFS5C460NWF — solderable flank option for optical inspection
- AEC-Q101 qualified with PPAP documentation available
- Lead-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVMFS5C460NWFT1G#C604602onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 20 | ₹368.81 · 20 in stock | View |
 | NVMFWS2D9N04XMT1G#C39179053onsemi · DFNW-5(5x6) | onsemi | DFNW-5(5x6) | 25 | ₹380.67 · 25 in stock | View |
 | TPM4060ND56#C7472909TECH PUBLIC · DFN-8(5x6) | TECH PUBLIC | DFN-8(5x6) | 4,970 | ₹45.80 · 4,970 in stock | View |
| NVMFS5C456NT1G#C604600onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 30 | ₹260.08 · 30 in stock | View | |
| NVMFS5C456NLAFT1G#C900434onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 7 | ₹455.24 · 7 in stock | View | |
