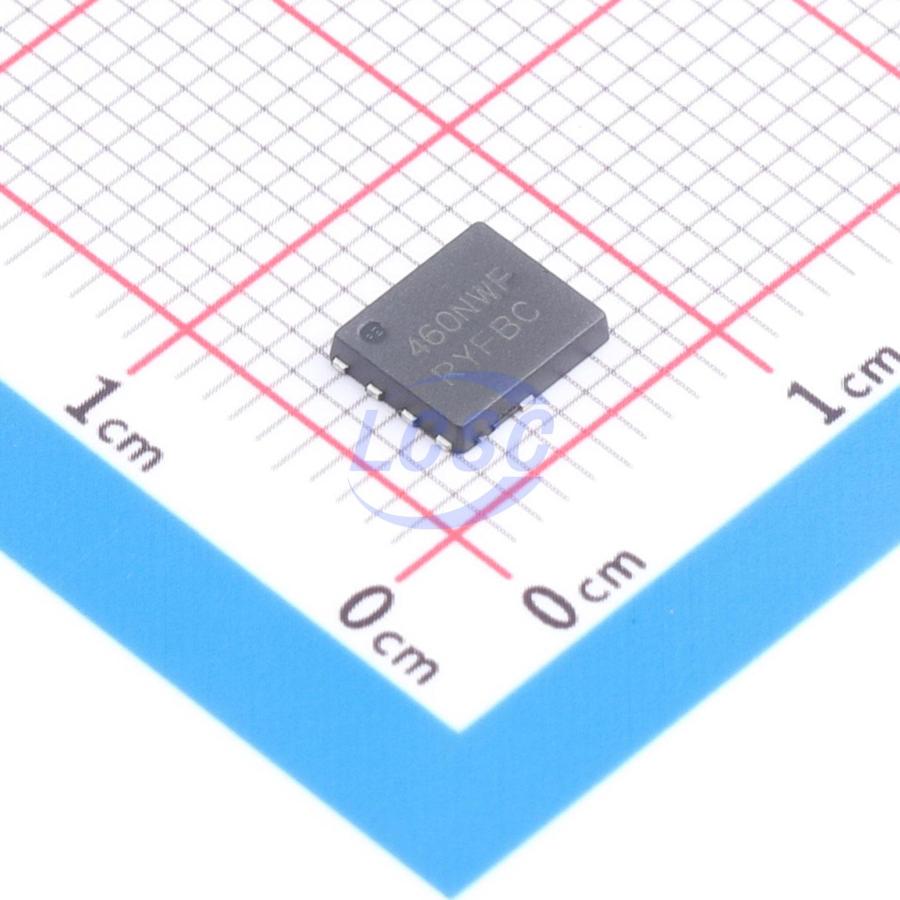

NVMFS5C460NWFT1G
40V 71A 50W 5.3mΩ@10V 1 N-channel DFN-5(5.9x4.9) Single FETs, MOSFETs RoHS
DFN-5(5.9x4.9)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NVMFS5C460NWFT1G
- Store part #
- C604602
- Package / case
- DFN-5(5.9x4.9)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C604602
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹368.81 | ₹368.81 |
| 10+ | ₹359.74 | ₹3,597.40 |
| 30+ | ₹353.68 | ₹10,610.40 |
| 100+ | ₹347.63 | ₹34,763.00 |
1 × ₹368.81
₹368.81
excl. GST
₹435.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
NVMFS5C460NWFT1G
₹368.81 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 71A
- Ciss-Input Capacitance
- 1nF
- Pd - Power Dissipation
- 50W
- Reverse Transfer Capacitance (Crss)
- 22pF
- RDS(on)
- 5.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 16nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.185 g
Overview
Key features
- Compact 5x6 mm package for space-constrained designs
- Low on-resistance RDS(on) for minimized conduction losses
- Low gate charge QG and capacitance for minimized driving losses
- NVMFS5C460NWF - solderable flank option for optical inspection
- AEC-Q101 qualified with PPAP documentation available
- Lead-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVMFS5C460NT1G#C900437onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 25 | ₹458.47 · 25 in stock | View |
 | NVMFWS2D9N04XMT1G#C39179053onsemi · DFNW-5(5x6) | onsemi | DFNW-5(5x6) | 25 | ₹380.67 · 25 in stock | View |
| NVMFS5C456NT1G#C604600onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 30 | ₹260.08 · 30 in stock | View | |
| NVMFS5C456NLAFT1G#C900434onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 7 | ₹455.24 · 7 in stock | View | |
| NVMFS5C450NWFAFT1G#C900433onsemi · DFN-5(5.9x4.9) | onsemi | DFN-5(5.9x4.9) | 25 | ₹656.21 · 25 in stock | View | |
