onsemiDatasheet (PDF)

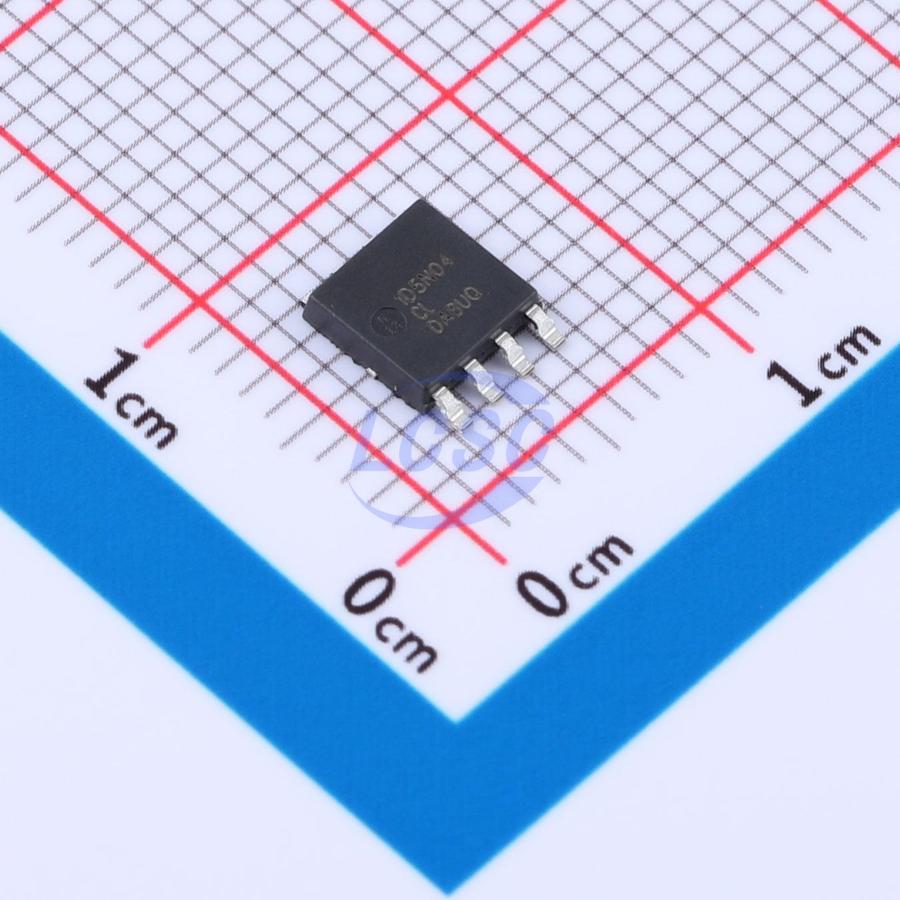

NVMJS1D5N04CLTWG
110W 40V 38A 1.4mΩ@10V 1 N-channel N-Channel LFPAK-8 Single FETs, MOSFETs RoHS
LFPAK-8ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NVMJS1D5N04CLTWG
- Store part #
- C894177
- Package / case
- LFPAK-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C894177
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹132.31 | ₹132.31 |
| 10+ | ₹129.07 | ₹1,290.70 |
| 30+ | ₹126.90 | ₹3,807.00 |
| 100+ | ₹124.96 | ₹12,496.00 |
1 × ₹132.31
₹132.31
excl. GST
₹156.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NVMJS1D5N04CLTWG
₹132.31 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.9nF
- Ciss-Input Capacitance
- 4.3nF
- Pd - Power Dissipation
- 110W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 38A
- Reverse Transfer Capacitance (Crss)
- 72pF
- RDS(on)
- 1.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 70nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
Key features
- Compact size (5x6 mm) for space-constrained designs
- Low RDS(on) minimizing conduction losses
- Low QG and capacitance minimizing drive losses
- LFPAK8 package, industry standard
- AEC-Q101 qualified, PPAP documentation available
- Lead-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| NVMJS1D4N06CLTWG#C894176onsemi · LFPAK-8 | onsemi | LFPAK-8 | 25 | ₹791.62 · 25 in stock | View | |
| NVMJS3D0N06CTWG#C5205712onsemi · LFPAK-8 | onsemi | LFPAK-8 | 51 | ₹528.10 · 51 in stock | View | |
 | NVMJS1D3N04CTWG#C894175onsemi · LFPAK-8 | onsemi | LFPAK-8 | 20 | ₹236.21 · 20 in stock | View |
 | NTMJS1D4N06CLTWG#C894049onsemi · LFPAK-8 | onsemi | LFPAK-8 | 10 | ₹1,278.57 · 10 in stock | View |
 | NVMJS0D9N04CLTWG#C894171onsemi · LFPAK-8 | onsemi | LFPAK-8 | 75 | ₹223.60 · 75 in stock | View |
