onsemiDatasheet (PDF)

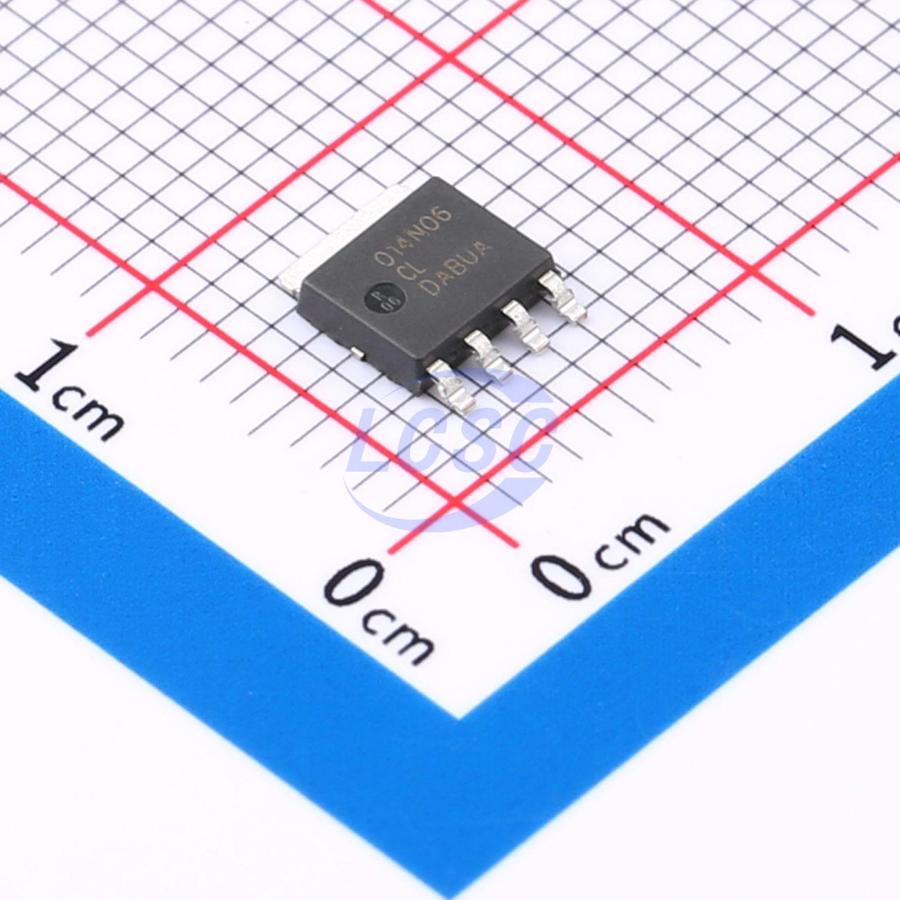

NVMYS014N06CLTWG
60V 15mΩ@10V 1 N-channel N-Channel LFPAK-4(5x6) Single FETs, MOSFETs RoHS
LFPAK-4(5x6)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NVMYS014N06CLTWG
- Store part #
- C894191
- Package / case
- LFPAK-4(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C894191
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹234.17 | ₹234.17 |
| 10+ | ₹199.05 | ₹1,990.50 |
| 30+ | ₹177.15 | ₹5,314.50 |
| 100+ | ₹154.82 | ₹15,482.00 |
| 500+ | ₹144.62 | ₹72,310.00 |
| 1,000+ | ₹140.29 | ₹1,40,290.00 |
1 × ₹234.17
₹234.17
excl. GST
₹276.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NVMYS014N06CLTWG
₹234.17 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 340pF
- Ciss-Input Capacitance
- 620pF
- Pd - Power Dissipation
- 3.8W;37W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 12A;36A
- Reverse Transfer Capacitance (Crss)
- 7pF
- RDS(on)
- 15mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9.7nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.17 g
Overview
Applications
- High-side load switch
- Mobile phones, computers, digital cameras, MP3 players, and PDAs
Key features
- Compact package (5x6 mm) for space-constrained designs
- Low on-state resistance RDS(on) for minimized conduction losses
- Low gate charge QG and capacitance for minimized switching losses
- LFPAK4 package, industry standard
- AEC-Q101 qualified, PPAP documentation available
- Lead-free, RoHS compliant
