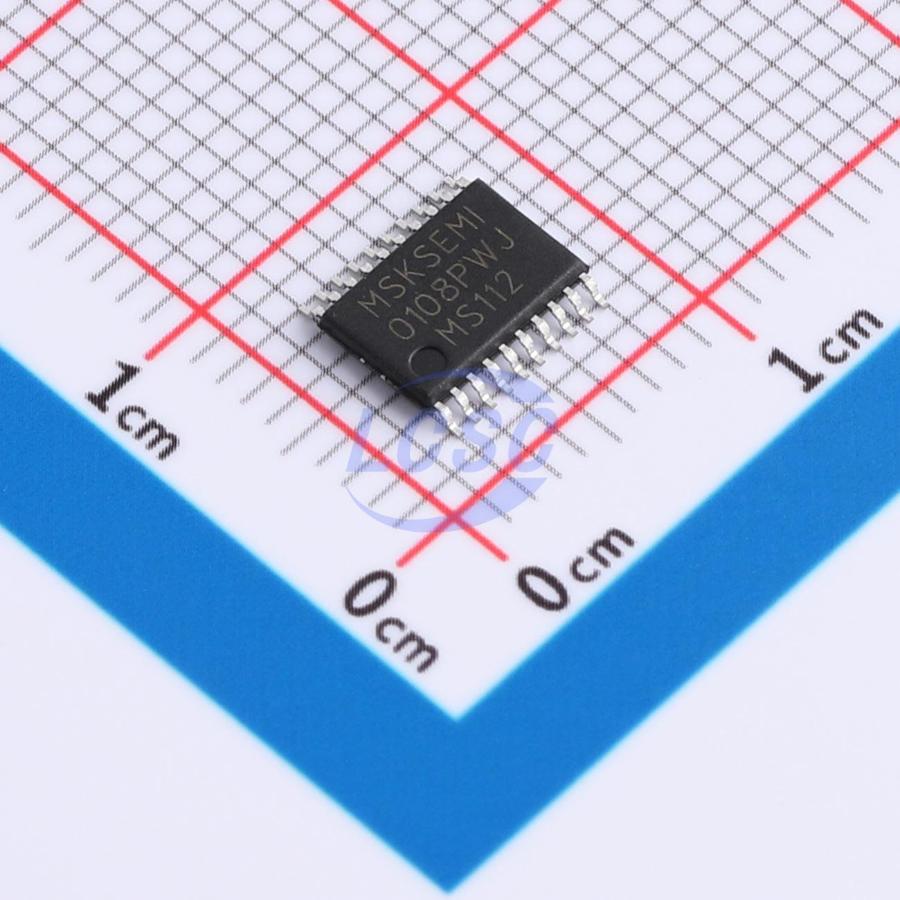

NXS0108PWJ-MS

This 8-bit non-inverting translator is a bidirectional voltage-level translator designed to establish digital switching compatibility between multi-voltage systems. The IC features two independently configurable supply rails: Port A supports an operating voltage of 1.65V to 3.6V and tracks the VCCA supply; Port B supports an operating voltage of 2.3V to 5.5V and tracks the VCCB supply. These capabilities accommodate both lower and higher logic signal levels while providing bidirectional translation between 1.8V, 2.5V, 3.3V, and 5V voltage circuit nodes. When the output enable input is driven low, all I/O ports enter a high-impedance state, significantly reducing quiescent current consumption. To ensure the high-impedance state is maintained during power-up or power-down, the output enable pin should be connected to ground through a pull-down resistor.

Applications

• Mobile Phone/Smartphone
• MART
• IPC
• GPIO

Key features

• No direction control required
• Data rate: 24 Mbps in push-pull mode, 2 Mbps in open-drain mode
• Port A voltage range 1.65V to 3.6V, Port B voltage range 2.3V to 5.5V
• VCC isolation: if either VCC input is grounded, both ports enter high-impedance state
• No power sequencing required: VCCA or VCCB can power up first
• Ioff supports partial power-down mode operation
• Operating temperature range: -40°C to +85°C
