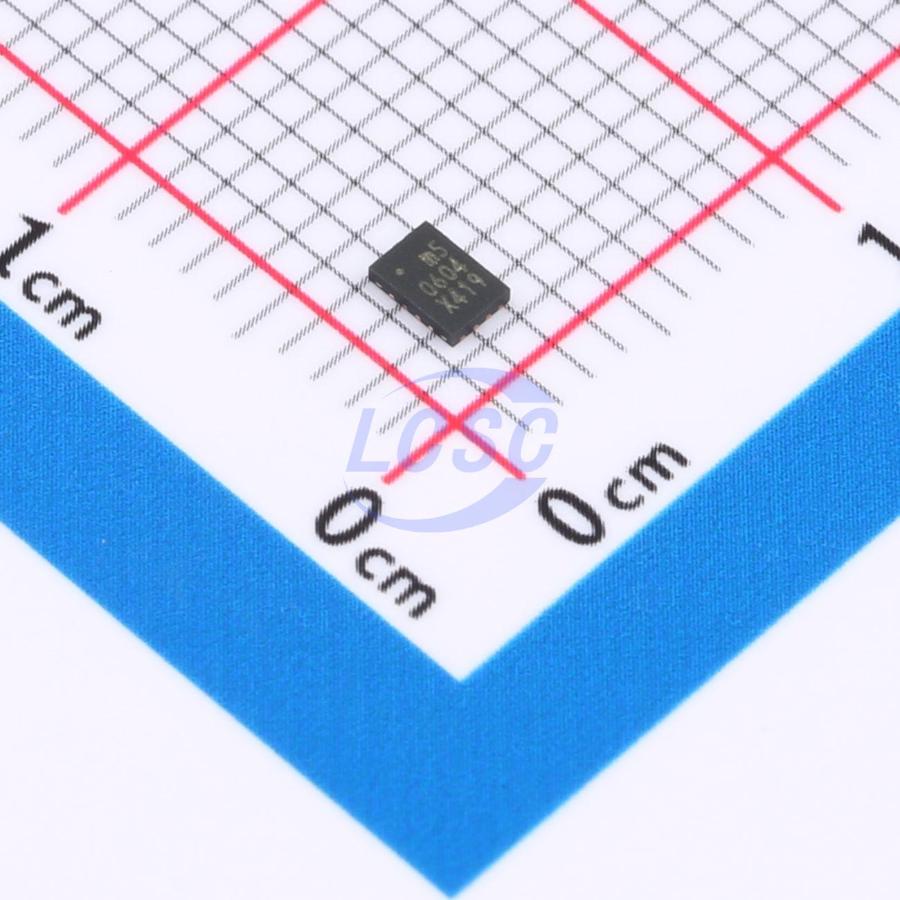

NXS0506GUX
SD interface 104Mbps 1 6 XQFN-16(1.8x2.6) Translators, Level Shifters RoHS
SD 3.0-compatible memory card integrated auto-direction control and level translator with EMI filter and ESD protection
- Manufacturer
- Nexperia
- Manufacturer part #
- NXS0506GUX
- Store part #
- C27795240
- Package / case
- XQFN-16(1.8x2.6)
- Category
- Translators, Level Shifters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,876 in stock
#C27795240
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹174.41 | ₹174.41 |
| 10+ | ₹143.14 | ₹1,431.40 |
| 30+ | ₹125.98 | ₹3,779.40 |
| 100+ | ₹106.44 | ₹10,644.00 |
| 500+ | ₹97.74 | ₹48,870.00 |
| 1,000+ | ₹93.84 | ₹93,840.00 |
1 × ₹174.41
₹174.41
excl. GST
₹205.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NXS0506GUX
₹174.41 for 1 + GST
Specifications
- output type
- Push-pull
- Interface
- SD interface
- Operating Temperature
- -40℃~+85℃
- Data Rate
- 104Mbps
- Number of Elements
- 1
- Channel Type
- Bidirectional
- Features
- Automatic direction detection;Integrated pull-up resistor
- Voltage - Supply
- 1.1V~1.95V;1.7V~3.6V
- Number of Circuits
- 6
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.061 g
Overview
The NXS0506 is an SD 3.0- compatible bidirectional dual supply level translator with auto- direction control. It is designed to interface between a memory card operating at 1.7V to 3.6V signal levels and a host with a nominal supply voltage of 1.1V to 1.95 V. The device supports SD 3.0: SDR104, SDR50, DDR50, SDR25, SDR12 and SD 2.0 High- Speed (50 MHz) and Default- Speed (25 MHz) modes. The device has a built- in EMI filter and robust ESD protection (IEC 61000- 4- 2, level 4).
Applications
- Smartphone
- Mobile handsets
- Digital cameras
- Tablet PCs
- Laptop computers
- SD, MMC or microSD card readers
Key features
- Supports up to 208 MHz clock rate SD 3.0 specification- compatible voltage translation to support: SDR104, SDR50, DDR50, SDR25, SDR12, High- Speed and Default- Speed modes
- 1.1 V to 1.95 V host side interface voltage support
- Auto- direction sensing
- Low power consumption
- Integrated pull- up resistors: no external resistors required
- Integrated EMI filters suppress higher harmonics of digital I/Os
- Level shifting buffers keep ESD stress away from the host (zero- clamping concept)
- 16- bumps WLCSP16 package; pitch 0.35mm
- 16- terminal XQFN16 package; pitch 0.4mm
- Latch- up performance exceeds 100 mA per JESD78 Class II.A
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS- 001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS- 002 class C3 exceeds 1000 V
- IEC61000- 4- 2, level 4, contact discharge on all memory card- side pins exceeds 8000 V
- IEC61000- 4- 2, level 4, air discharge on all memory card- side pins exceeds 15000 V
- Specified from - 40°C to +85°C
