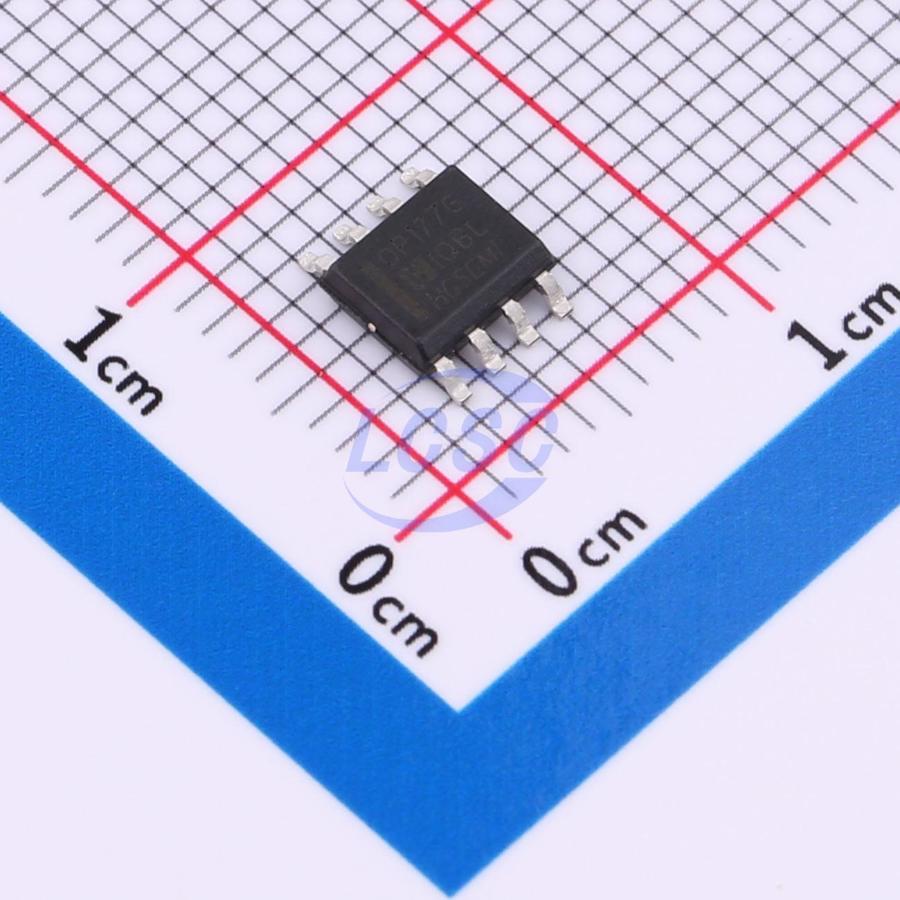

HGSEMI

OP177GM/TR

Standard (General Purpose) Amplifier 1 Circuit SOP-8

SOP-8RoHSActive

Low Offset Single Operational Amplifier

Manufacturer: HGSEMI
Manufacturer part #: OP177GM/TR
Store part #: C22446753
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,862 in stock

#C22446753

Stock & price checked 43 h ago

Quantity	Unit price	Pack price
1+	₹62.37	₹62.37
10+	₹55.20	₹552.00
30+	₹51.72	₹1,551.60
100+	₹48.24	₹4,824.00
500+	₹46.07	₹23,035.00
1,000+	₹44.98	₹44,980.00

Quantity (min 1)

1 × ₹62.37

₹62.37

excl. GST

₹73.60 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

OP177GM/TR

₹62.37 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of Channels: 1
Vos - Input Offset Voltage: 60uV
Input Offset Current(Ios): 8nA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 100dB
Ib - Input Bias Current: 28nA
Input Offset Voltage Drift(Vos TC): 1.8uV/℃
Gain Bandwidth Product: 500kHz
Quiescent Current: 3.8mA
Dual Supply: -18V~-3V;3V~18V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.26 g

Overview

The OP177 is a high-precision op-amp with a maximum offset voltage of 60μV and a gain of 200V/mV, making it particularly well-suited for instrumentation applications. With a wide input voltage range of ±13V and a CMRR exceeding 100dB, the OP177 maintains excellent linearity and gain accuracy even in high closed-loop gain circuits.
