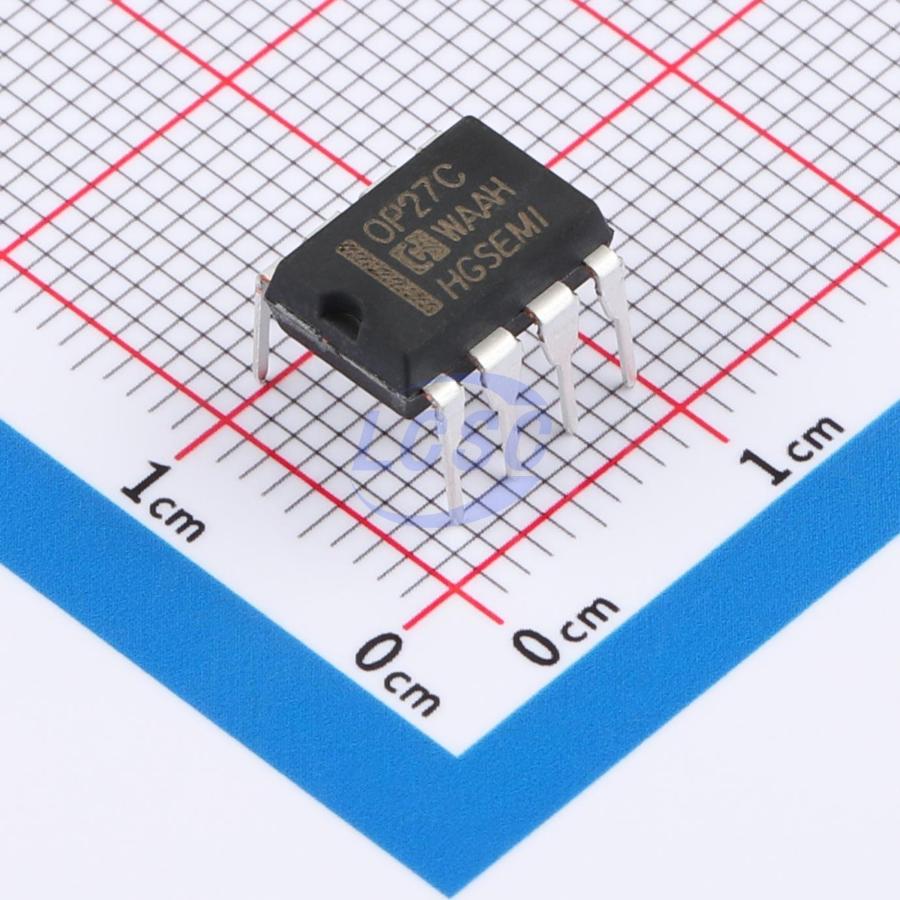

HGSEMI

OP27CN

8MHz 1mA 1 50uV 28nA 100dB DIP-8 Instrumentation, Op Amps, Buffer Amps

DIP-8RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: OP27CN
Store part #: C52204731
Package / case: DIP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,909 in stock

#C52204731

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹99.67	₹99.67
10+	₹80.65	₹806.50
50+	₹71.23	₹3,561.50
100+	₹61.81	₹6,181.00
500+	₹56.08	₹28,040.00
1,000+	₹53.22	₹53,220.00

Quantity (min 1)

1 × ₹99.67

₹99.67

excl. GST

₹117.61 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

OP27CN

₹99.67 for 1 + GST

Specifications

Gain Bandwidth Product: 8MHz
Quiescent Current: 1mA
Number of Channels: 1
Vos - Input Offset Voltage: 50uV
Input Offset Current(Ios): 8nA
Input Voltage Noise Density: 3.2nV/√Hz@1kHz
Operating Temperature: -40℃~+85℃
Ib - Input Bias Current: 28nA
Common Mode Rejection Ratio(CMRR): 100dB
Input Offset Voltage Drift(Vos TC): 1.8uV/℃

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.884 g

Overview

The OP27 is a high-precision op-amp with a maximum offset voltage of 150μV and a gain of 200V/mV. It is therefore particularly well-suited for instrumentation and similar applications. With a wide input voltage range of ±13V and a CMRR exceeding 100dB, the OP27 maintains excellent linearity and gain accuracy even in high closed-loop gain circuits.
