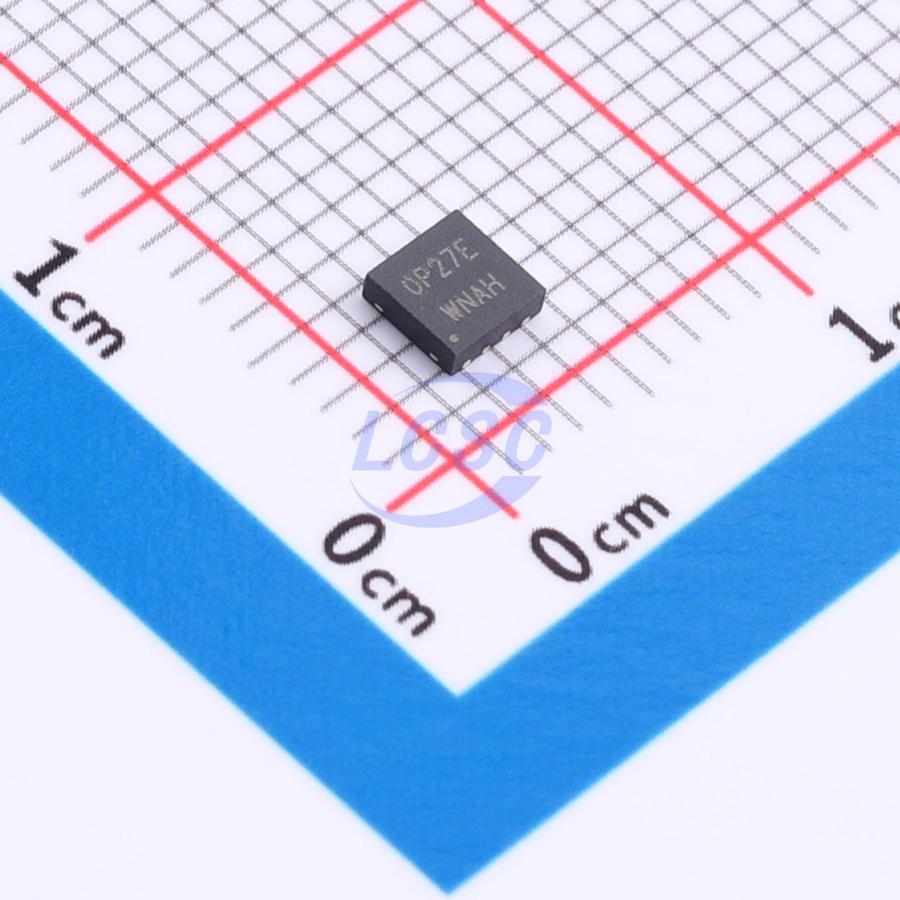

HGSEMI

OP27EDQ3/TR-HG

10uV 28nA 100dB 8MHz 1mA DFN-8(3x3) Instrumentation, Op Amps, Buffer Amps

DFN-8(3x3)RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: OP27EDQ3/TR-HG
Store part #: C52953087
Package / case: DFN-8(3x3)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,000 in stock

#C52953087

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹133.70	₹133.70
10+	₹111.04	₹1,110.40
30+	₹98.68	₹2,960.40
100+	₹84.67	₹8,467.00
500+	₹78.49	₹39,245.00
1,000+	₹75.61	₹75,610.00

Quantity (min 1)

1 × ₹133.70

₹133.70

excl. GST

₹157.77 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

OP27EDQ3/TR-HG

₹133.70 for 1 + GST

Specifications

Vos - Input Offset Voltage: 10uV
Input Offset Current(Ios): 8nA
Operating Temperature: 0℃~+70℃
Ib - Input Bias Current: 28nA
Common Mode Rejection Ratio(CMRR): 100dB
Input Offset Voltage Drift(Vos TC): 1.8uV/℃
Gain Bandwidth Product: 8MHz
Quiescent Current: 1mA
Input Voltage Noise Density: 3nV/√Hz@1kHz

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.06 g

Overview

The OP27 is a high-precision op-amp featuring a maximum offset voltage of 150 μV and a gain of 200 V/mV, making it particularly well-suited for instrumentation applications. The device offers a wide input voltage range (±13 V) and a common-mode rejection ratio exceeding 100 dB, maintaining excellent linearity and gain accuracy even in high closed-loop gain configurations.
