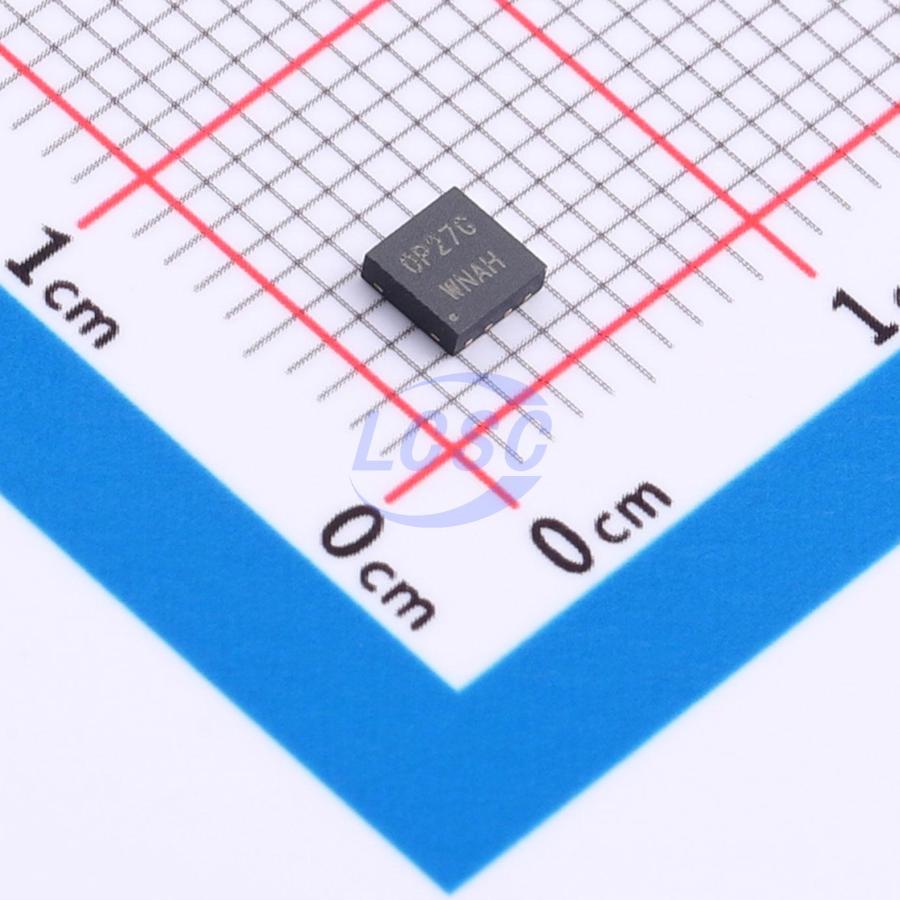

HGSEMI

OP27GDQ3/TR-HG

30uV 28nA 100dB 8MHz 1mA DFN-8(3x3) Instrumentation, Op Amps, Buffer Amps

DFN-8(3x3)RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: OP27GDQ3/TR-HG
Store part #: C52953088
Package / case: DFN-8(3x3)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,000 in stock

#C52953088

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹119.07	₹119.07
10+	₹96.42	₹964.20
30+	₹84.88	₹2,546.40
100+	₹73.76	₹7,376.00
500+	₹66.96	₹33,480.00
1,000+	₹63.45	₹63,450.00

Quantity (min 1)

1 × ₹119.07

₹119.07

excl. GST

₹140.50 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

OP27GDQ3/TR-HG

₹119.07 for 1 + GST

Specifications

Vos - Input Offset Voltage: 30uV
Input Offset Current(Ios): 8nA
Operating Temperature: -40℃~+85℃
Ib - Input Bias Current: 28nA
Common Mode Rejection Ratio(CMRR): 100dB
Input Offset Voltage Drift(Vos TC): 1.8uV/℃
Gain Bandwidth Product: 8MHz
Quiescent Current: 1mA
Input Voltage Noise Density: 3.2nV/√Hz@1kHz

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.06 g

Overview

The OP27 is a high-precision op-amp featuring a maximum offset voltage of 150 μV and a gain of 200 V/mV, making it particularly well-suited for instrumentation applications. The device offers a wide input voltage range (±13 V) and a common-mode rejection ratio exceeding 100 dB, maintaining excellent linearity and gain accuracy even in high closed-loop gain configurations.
