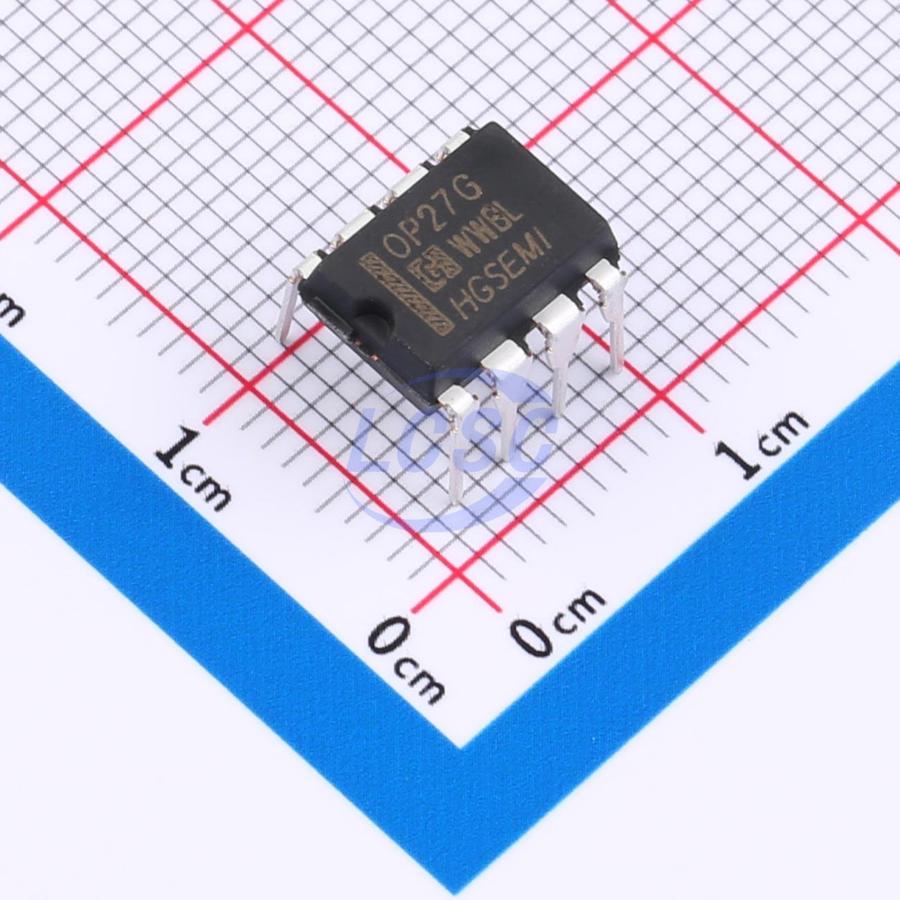

HGSEMI

OP27GN

Standard (General Purpose) Amplifier DIP-8

DIP-8RoHSActive

Low-noise, high-speed, and precise operational amplifier

Manufacturer: HGSEMI
Manufacturer part #: OP27GN
Store part #: C49021845
Package / case: DIP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,222 in stock

#C49021845

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹90.84	₹90.84
10+	₹80.41	₹804.10
50+	₹74.97	₹3,748.50
100+	₹69.76	₹6,976.00
500+	₹66.72	₹33,360.00
1,000+	₹64.97	₹64,970.00

Quantity (min 1)

1 × ₹90.84

₹90.84

excl. GST

₹107.19 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

OP27GN

₹90.84 for 1 + GST

Specifications

Quiescent Current: 3.8mA
Gain Bandwidth Product: 8MHz
Vos - Input Offset Voltage: 100uV
Input Offset Current(Ios): 8nA
Input Voltage Noise Density: 8nV/√Hz@10Hz
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 100dB
Ib - Input Bias Current: 28nA
Dual Supply: -18V~-3V;3V~18V
Input Offset Voltage Drift(Vos TC): 1.8uV/℃

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.904 g

Overview

The OP27 is a high-precision op-amp with a maximum offset voltage of 150μV and a gain of 200V/mV. It is therefore particularly well-suited for instrumentation and similar applications. With a wide input voltage range of ±13V and a CMRR exceeding 100dB, the OP27 maintains excellent linearity and gain accuracy even in high closed-loop gain circuits.
