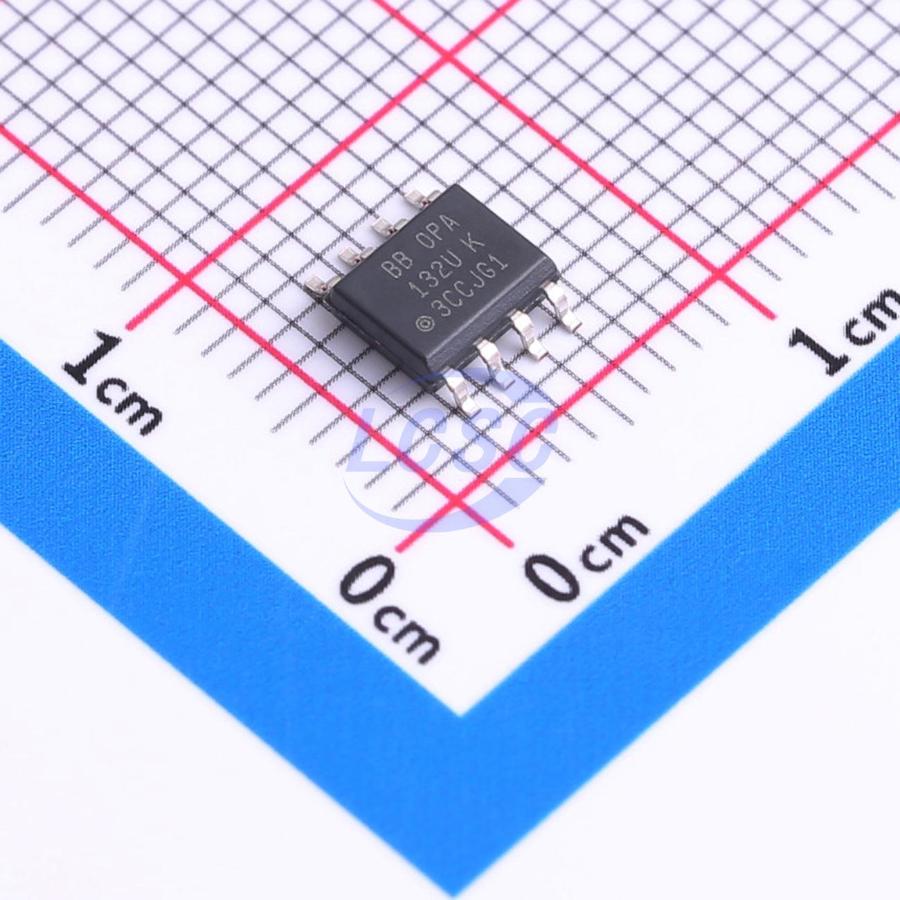

OPA132U

40mA 1 500uV 20V/us 100dB 5pA 8MHz 4.8mA SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

OPAx132 High-Speed FET-Input Operational Amplifiers

Manufacturer: TI
Manufacturer part #: OPA132U
Store part #: C2865409
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

19 in stock

#C2865409

Stock & price checked 14 days ago

Quantity	Unit price	Pack price
1+	₹1,160.10	₹1,160.10
10+	₹998.35	₹9,983.50
30+	₹899.88	₹26,996.40
75+	₹817.39	₹61,304.25

Quantity (min 1)

1 × ₹1,160.10

₹1,160.10

excl. GST

₹1,368.92 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 75 per tube

OPA132U

₹1,160.10 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 40mA
Number of Channels: 1
Vos - Input Offset Voltage: 500uV
Slew Rate: 20V/us
Input Offset Current(Ios): 2pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 100dB
Ib - Input Bias Current: 5pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Gain Bandwidth Product: 8MHz
Quiescent Current: 4.8mA
Features: Built-in compensation;High capacitive load driving
Input Voltage Noise Density: 8nV/√Hz@1kHz
Dual Supply: -18V~-2.5V;2.5V~18V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 75 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.175 g
