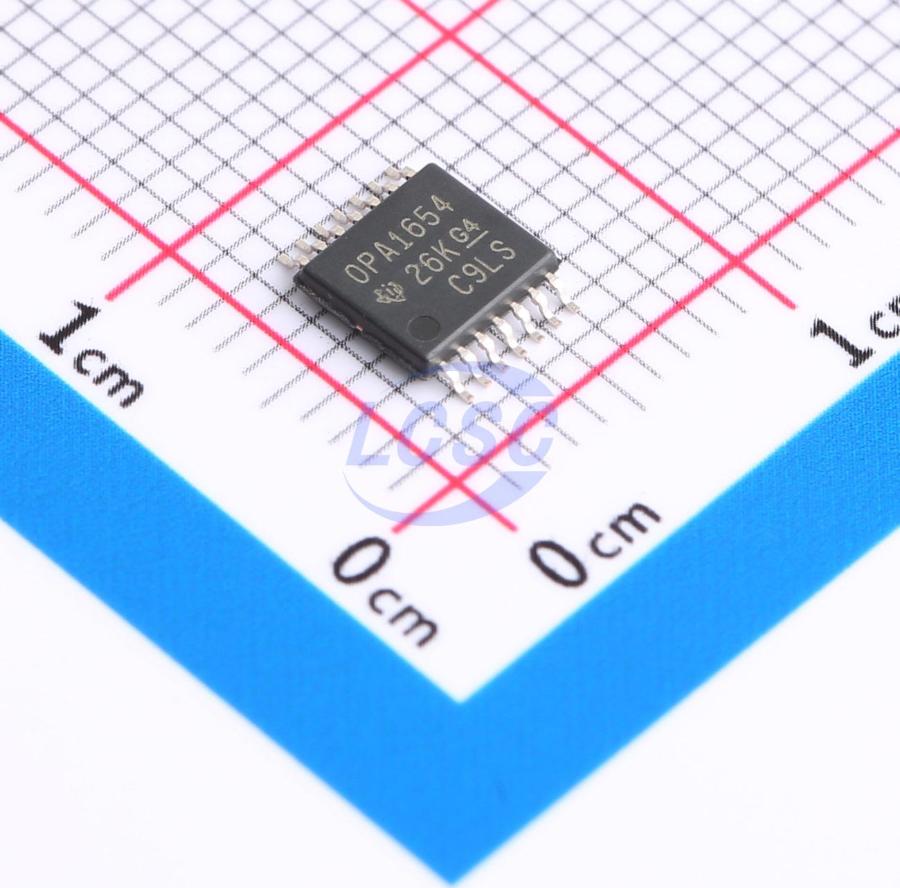

OPA1654AIPWR

The OPA1652 (dual-channel) and OPA1654 (quad-channel) FET-input operational amplifiers achieve a low noise density of 4.5 nV/√Hz at 1 kHz and ultra-low distortion of 0.00005%. The OPA1652 and OPA1654 operational amplifiers provide rail-to-rail outputs with a swing within 800 mV into a 2 kΩ load, which helps increase headroom and maximize dynamic range. Additionally, these devices feature a high output drive capability of ±30 mA. These devices can operate over a very wide supply voltage range from ±2.25 V to ±18 V, or 4.5 V to 36 V, with a supply current of only 2 mA per channel. The OPA1652 and OPA1654 series operational amplifiers are unity-gain stable and offer excellent dynamic performance over a wide load range. They also use a fully independent circuitry to minimize crosstalk and are immune to inter-channel interaction interference even during overdrive or overload conditions. The OPA1652 and OPA1654 are specified over a temperature range of -40°C to +85°C.

Applications

• Analog and digital mixer audio effects processors
• Musical instruments
• A/V receivers
• DVD and Blu-ray players
• Automotive audio systems

Key features

• Low noise:
• 4.5nV/√Hz (at 1kHz)
• 3.8nV/√Hz (at 10kHz)
• Low distortion: 0.00005% at 1kHz
• Low quiescent current: 2mA per channel
• Low input bias current: 10pA
• Slew rate: 10V/μs
• Wide gain bandwidth: 18MHz (G = 1)
• Unity-gain stable
• Rail-to-rail output
• Wide supply voltage range: ±2.25V to ±18V or 4.5V to 36V
• Available in dual and quad versions
• Small packages:
• Dual: SO-8 and MSOP-8
• Quad: SO-14 and TSSOP-14
