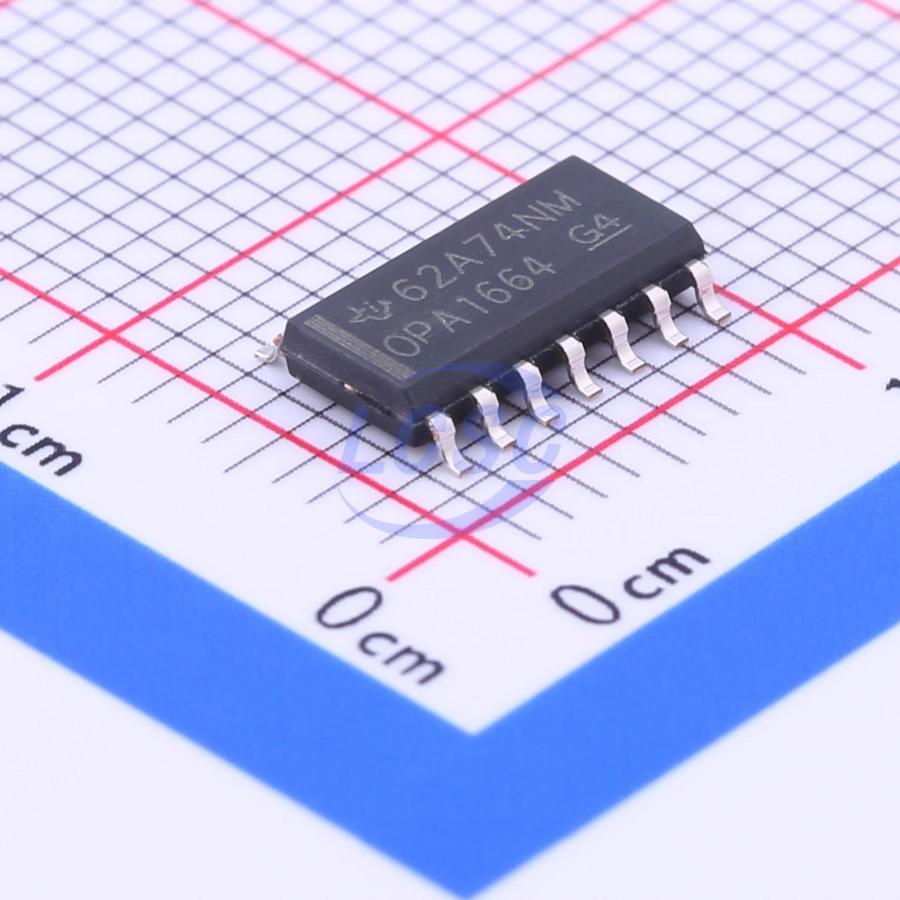

OPA1664AIDR

The OPA1662 (dual-channel) and OPA1664 (quad-channel) bipolar-input operational amplifier series can achieve an extremely low noise density of 3.3nV/√Hz with ultra-low distortion (0.00006% at 1kHz). The OPA1662 and OPA1664 series operational amplifiers support a rail-to-rail output swing of up to 600mV into a 2kΩ load, which can increase headroom and dynamic range. In addition, these devices have a high output drive capability of ±30mA. These devices can operate over a wide power supply voltage range of ±1.5V to ±18V, or +3V to +36V, with a supply current of only 1.5mA per channel. The OPA1662 and OPA1664 operational amplifiers are unity-gain stable and provide excellent dynamic performance over a wide range of load conditions. They also feature fully independent circuitry to minimize crosstalk and are immune to inter-channel interaction effects, even during overdrive or overload conditions. The OPA1662 and OPA1664 are specified for operation from -40°C to +85°C.

Applications

• USB and firmware audio systems
• Analog and digital mixers
• Portable recording systems
• Effects processors
• High-end A/V receivers
• High-end DVD and Blu-Ray players
• High-end automotive audio

Key features

• Low noise: 3.3nV/√Hz at 1kHz
• Low distortion: 0.00006% at 1kHz
• Low quiescent current: 1.5mA per channel
• Slew rate: 17V/μs
• Wide gain bandwidth: 22MHz (G = +1)
• Unity-gain stable
• Rail-to-rail output
• Wide supply range: ±1.5V to ±18V, or +3V to +36V
• Dual and quad versions available
• Small package options:
• Dual: SO-8 and MSOP-8
• Quad: SO-14 and TSSOP-14
