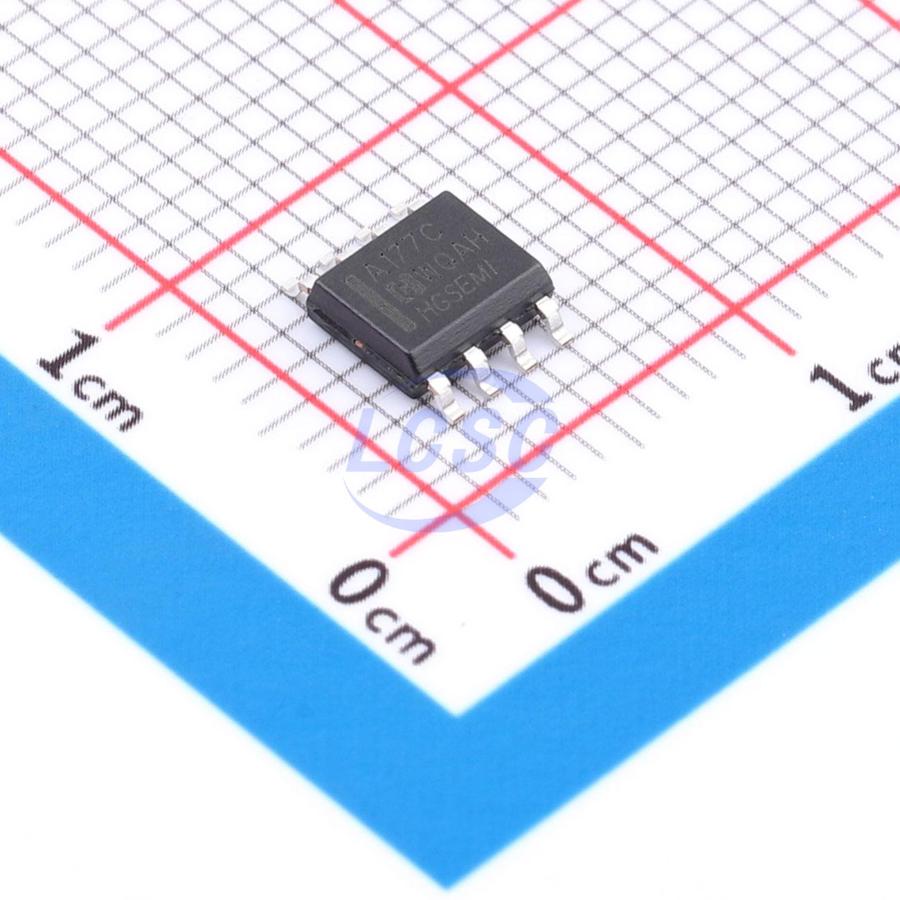

HGSEMI

OPA177CM/TR

1.3mA 600kHz 1 25uV 0.3V/us 500pA 140dB SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: OPA177CM/TR
Store part #: C2835199
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,220 in stock

#C2835199

Stock & price checked 19 h ago

Quantity	Unit price	Pack price
1+	₹59.98	₹59.98
10+	₹53.46	₹534.60
30+	₹50.21	₹1,506.30
100+	₹47.16	₹4,716.00
500+	₹40.64	₹20,320.00
1,000+	₹39.56	₹39,560.00

Quantity (min 1)

1 × ₹59.98

₹59.98

excl. GST

₹70.78 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA177CM/TR

₹59.98 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Quiescent Current: 1.3mA
Gain Bandwidth Product: 600kHz
Number of Channels: 1
Vos - Input Offset Voltage: 25uV
Slew Rate: 0.3V/us
Input Offset Current(Ios): 300pA
Operating Temperature: -40℃~+85℃
Ib - Input Bias Current: 500pA
Common Mode Rejection Ratio(CMRR): 140dB
Dual Supply: -18V~-3V;3V~18V
Input Offset Voltage Drift(Vos TC): 300nV/℃

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.315 g

Overview

The OPA177 precision bipolar op amp features ultralow offset voltage and drift. Laser-trimmed offset, drift, and input bias current virtually eliminate the need for costly external trimming. High performance and low cost make it ideal for a wide range of precision instrumentation applications. The OPA177's low quiescent current significantly reduces warm-up drift and errors caused by thermoelectric effects in input interconnects. It offers an effective alternative to chopper-stabilized amplifiers. The OPA177's low noise preserves accuracy. Performance-graded versions of the OPA177 are available. Package options include 8-pin plastic DIP and SOP-8 surface-mount packages.

Applications

Precision instruments
Data acquisition
Test equipment
Bridge amplifiers
Thermocouple amplifiers

Key features

Low offset voltage: 25µV max
Low drift: 0.3µV/°C
High open-loop gain: 130dB min
Low quiescent current: 1.5mA typical
Drop-in replacement for industry-standard op-amps: OP-07, OP-77, OP-177, AD707, etc.
