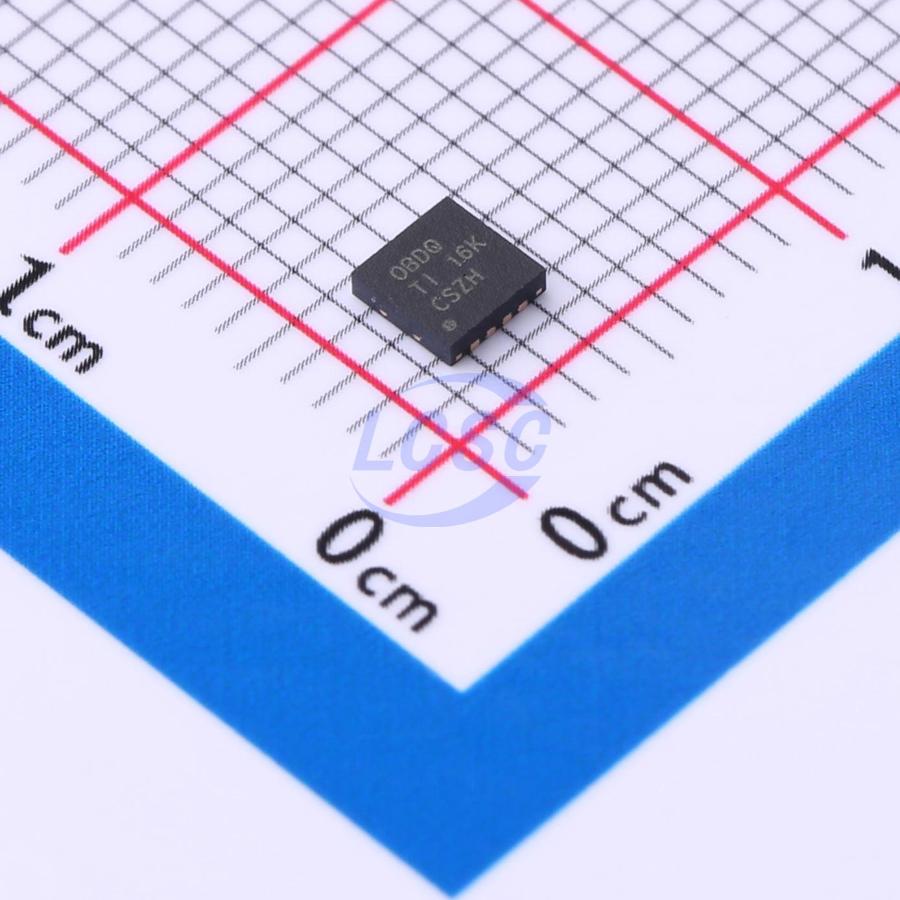

OPA211AIDRGR

The OPA2x11 series precision op-amps achieve an ultra-low noise density of 1.1nV/√Hz at a supply current of 3.6mA. These devices also feature rail-to-rail output swing to maximize dynamic range. With ultra-low voltage and current noise, high speed, and wide output swing, the OPA2x11 series serves as a high-performance loop filter amplifier for a wide range of PLL applications. In precision data acquisition applications, the OPA2x11 series op-amps provide a 700ns settling time across the full 10V output swing at 16-bit accuracy. This AC performance, combined with an offset voltage of only 125μV and a temperature drift of 0.35μV/°C, makes the OPA2x11 series ideal for driving high-precision 16-bit ADCs or buffering high-resolution DAC outputs. The OPA2x11 series operates over a wide dual-supply voltage range of ±2.25V to ±18V or a single-supply voltage range of 4.5V to 36V.

Applications

• PLL loop filter
• Low-noise, low-power signal processing
• 16-bit ADC driver
• DAC output amplifier
• Active filter
• Low-noise instrumentation amplifier
• Ultrasonic amplifier
• Professional audio preamplifier
• Low-noise frequency synthesizer
• Infrared detector amplifier
• Hydrophone amplifier
• Geophone amplifier
• Medical instrumentation

Key features

• Low voltage noise: 1.1nV/√Hz at 1kHz
• Input voltage noise: 80nVPP, 0.1Hz to 10Hz
• Total Harmonic Distortion + Noise (THD+N): -136dB (G = 1, f = 1kHz)
• Offset voltage: 125μV (maximum)
• Offset voltage drift: 0.35μV/°C (typical)
• Low supply current: 3.6mA/channel (typical)
• Unity-gain stable
• Gain bandwidth product:
• 80MHz (G = 100)
• 45MHz (G = 1)
• Slew rate: 27V/μs
• 16-bit settling time: 700ns
• Wide supply range:
• ±2.25 to ±18V, 4.5V to 36V
• Rail-to-rail output
• Output current: 30mA
• SON-8 (3mm×3mm), VSSOP-8, and SOIC-8
