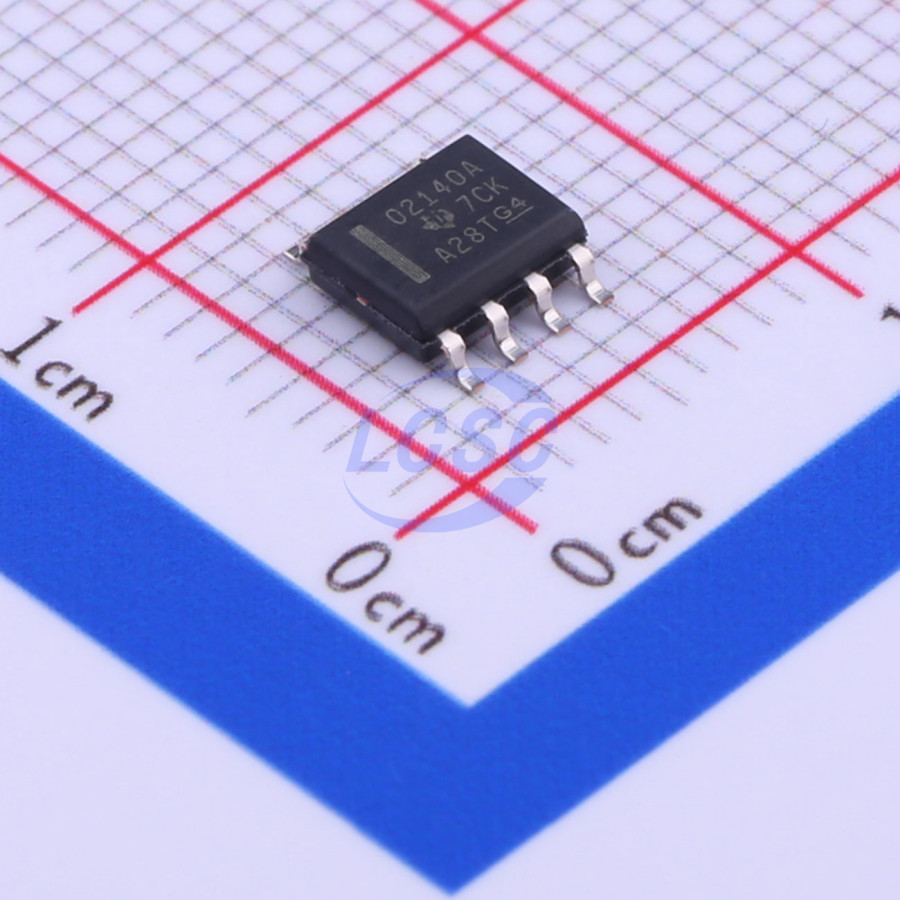

OPA2140AIDR

36mA 2 120uV 20V/us 120dB 10pA 1.8mA 11MHz Rail-to-rail output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

High-Precision, Low-Noise, Rail-to-Rail Output, JFET Op Amp

Manufacturer: TI
Manufacturer part #: OPA2140AIDR
Store part #: C335586
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,462 in stock

#C335586

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹743.16	₹743.16
10+	₹664.28	₹6,642.80
30+	₹588.44	₹17,653.20
100+	₹541.08	₹54,108.00
500+	₹519.13	₹2,59,565.00
1,000+	₹509.36	₹5,09,360.00

Quantity (min 1)

1 × ₹743.16

₹743.16

excl. GST

₹876.93 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA2140AIDR

₹743.16 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 36mA
Number of Channels: 2
Vos - Input Offset Voltage: 120uV
Slew Rate: 20V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 120dB
Ib - Input Bias Current: 10pA
Input Offset Voltage Drift(Vos TC): 0.35uV/℃
Quiescent Current: 1.8mA
Gain Bandwidth Product: 11MHz
Features: Short-Circuit Protection
Input Voltage Noise Density: 5.1nV/√Hz@1kHz
Dual Supply: -18V~-2.25V;2.25V~18V
Rail to Rail: Rail-to-rail output
Single Supply: 4.5V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.175 g

Overview

The OPA140, OPA2140, and OPA4140 operational amplifier (op amp) family is a series of low-power JFET input amplifiers that features good drift and low input bias current. The rail-to-rail output swing and input range that includes V- allow designers to take advantage of the low-noise characteristics of JFET amplifiers while also interfacing to modern, single-supply, precision analog-to-digital converters (ADCs) and digital-to-analog converters (DACs). The OPA140 achieves 11-MHz unity-gain bandwidth and 20 V/μs slew rate while consuming only 1.8 mA (typical) of quiescent current. It runs on a single 4.5 V to 36 V supply or dual ±2.25 V to ±18 V supplies. All versions are fully specified from -40 ℃ to 125 ℃ for use in the most challenging environments. The OPA140 (single) is available in the 5-pin SOT-23, 8-pin VSSOP, and 8-pin SOIC packages; the OPA2140 (dual) is available in both 8-pin VSSOP and 8-pin SOIC packages; and the OPA4140 (quad) is available in the 14-pin SOIC and 14-pin TSSOP packages.
