TIDatasheet (PDF)

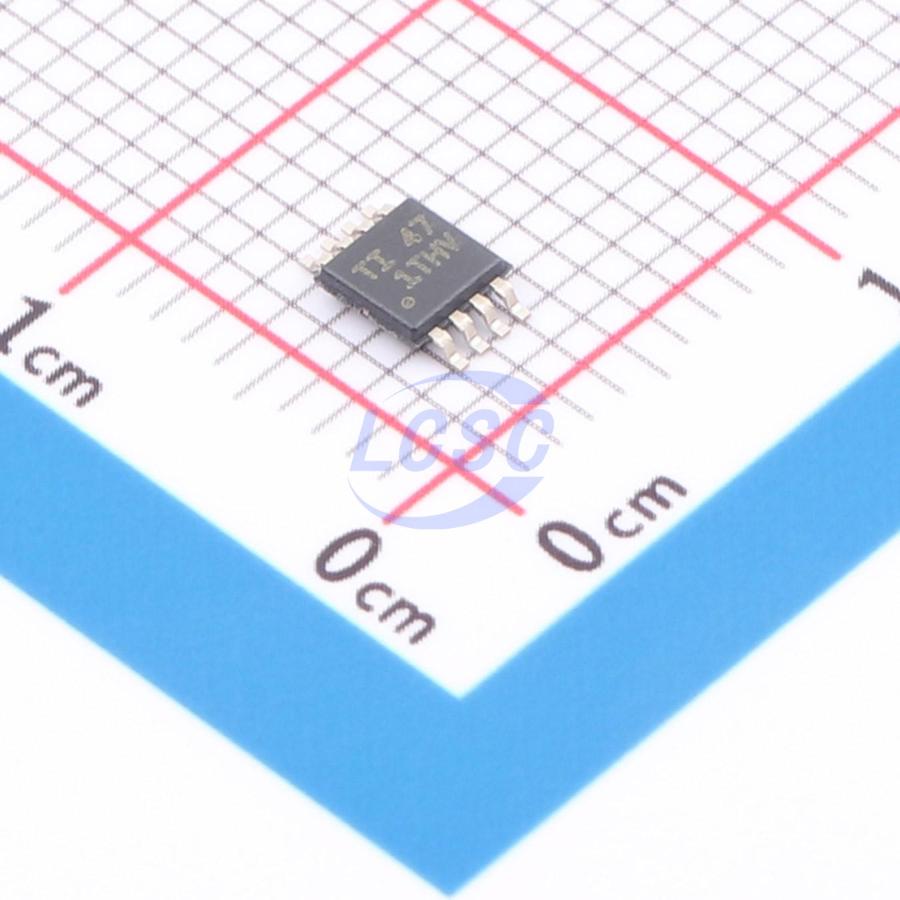

OPA2156IDGKR
100mA 2 25uV 40V/us 120dB 5pA 4.4mA 25MHz Rail-to-Rail Input, Rail-to-Rail Output VSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
VSSOP-8ROHS3 CompliantActive
Ultra-low noise, high bandwidth, CMOS, precision rail-to-rail operational amplifier
- Manufacturer
- TI
- Manufacturer part #
- OPA2156IDGKR
- Store part #
- C2867809
- Package / case
- VSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,117 in stock
#C2867809
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹369.75 | ₹369.75 |
| 10+ | ₹325.60 | ₹3,256.00 |
| 30+ | ₹302.98 | ₹9,089.40 |
| 100+ | ₹272.75 | ₹27,275.00 |
| 500+ | ₹261.87 | ₹1,30,935.00 |
| 1,000+ | ₹257.31 | ₹2,57,310.00 |
1 × ₹369.75
₹369.75
excl. GST
₹436.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OPA2156IDGKR
₹369.75 for 1 + GST
Specifications
- Output Current
- 100mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 25uV
- Slew Rate
- 40V/us
- Input Offset Current(Ios)
- 40pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Ib - Input Bias Current
- 5pA
- Input Offset Voltage Drift(Vos TC)
- 500nV/℃
- Quiescent Current
- 4.4mA
- Gain Bandwidth Product
- 25MHz
- Features
- Reverse-phase input protection;ESD protection
- Input Voltage Noise Density
- 3nV/√Hz@10kHz
- Dual Supply
- -18V~-2.25V;2.25V~18V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 4.5V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.095 g
Overview
This device features very low offset voltage (±25μV), drift (±0.5μV/°C), and low bias current (±5pA), along with very low wideband voltage noise (3nV/√Hz). The OPA2156 offers unique characteristics such as rail-to-rail input and output voltage range, wide bandwidth (25MHz), high output current (100mA), and high slew rate (40V/μs), making it a powerful, high-performance op amp ideal for space-saving designs in high-voltage precision industrial applications. The OPA2156 op amp is available in 8-pin SOIC and VSSOP packages and operates over an industrial temperature range of -40°C to +125°C.
Applications
- Data Acquisition (DAQ)
- Photodiode Transimpedance Amplifier
- Vibration Monitor Module
- Analog Input Module
- High-Resolution ADC Driver Amplifier
- Medical Equipment
Key features
- Ultra-low noise: 3nV/√Hz at 10kHz
- Low offset voltage: ±25μV
- Low offset voltage drift: ±0.5μV/°C
- Low bias current: ±5pA
- Common-mode rejection: 120dB
- High bandwidth: 25MHz GBW
- Open-loop voltage gain: 154dB
- High output current: 100mA
- Rail-to-rail input and output
- High slew rate: 40V/μs
- Short settling time: 600ns (10V step, 0.01%)
- Wide supply voltage range: ±2.25V to ±18V, 4.5V to 36V
- Industry-standard packages: SOIC-8 and VSSOP-8 dual packages
