TIDatasheet (PDF)

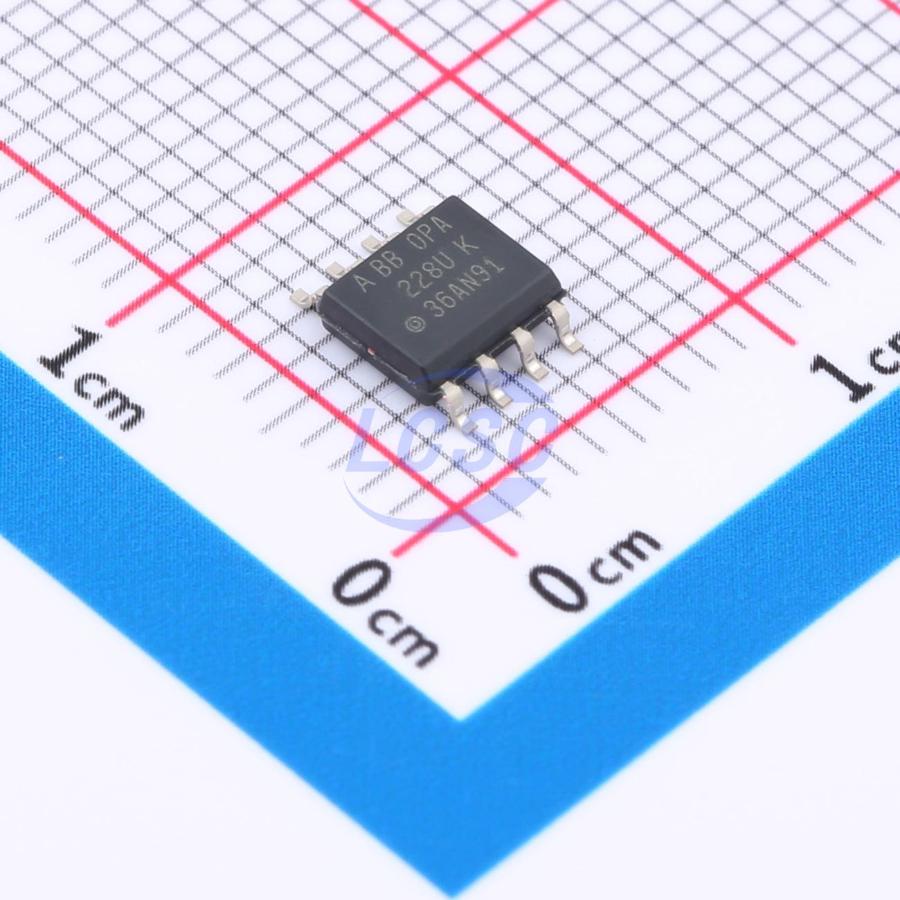

OPA228UA/2K5
45mA 1 10uV 11V/us 138dB 2.5nA 3.8mA 33MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
- Manufacturer
- TI
- Manufacturer part #
- OPA228UA/2K5
- Store part #
- C2057421
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C2057421
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹690.44 | ₹690.44 |
| 10+ | ₹601.02 | ₹6,010.20 |
| 30+ | ₹546.40 | ₹16,392.00 |
| 100+ | ₹500.80 | ₹50,080.00 |
1 × ₹690.44
₹690.44
excl. GST
₹814.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OPA228UA/2K5
₹690.44 for 1 + GST
Specifications
- Output Current
- 45mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 10uV
- Slew Rate
- 11V/us
- Input Offset Current(Ios)
- 2.5nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 138dB
- Ib - Input Bias Current
- 2.5nA
- Input Offset Voltage Drift(Vos TC)
- 300nV/℃
- Quiescent Current
- 3.8mA
- Gain Bandwidth Product
- 33MHz
- Features
- Decompensated stable;Reverse-phase input protection
- Input Voltage Noise Density
- 3nV/√Hz@1kHz
- Dual Supply
- -18V~-2.25V;2.25V~18V
- Single Supply
- 4.5V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.108 g
