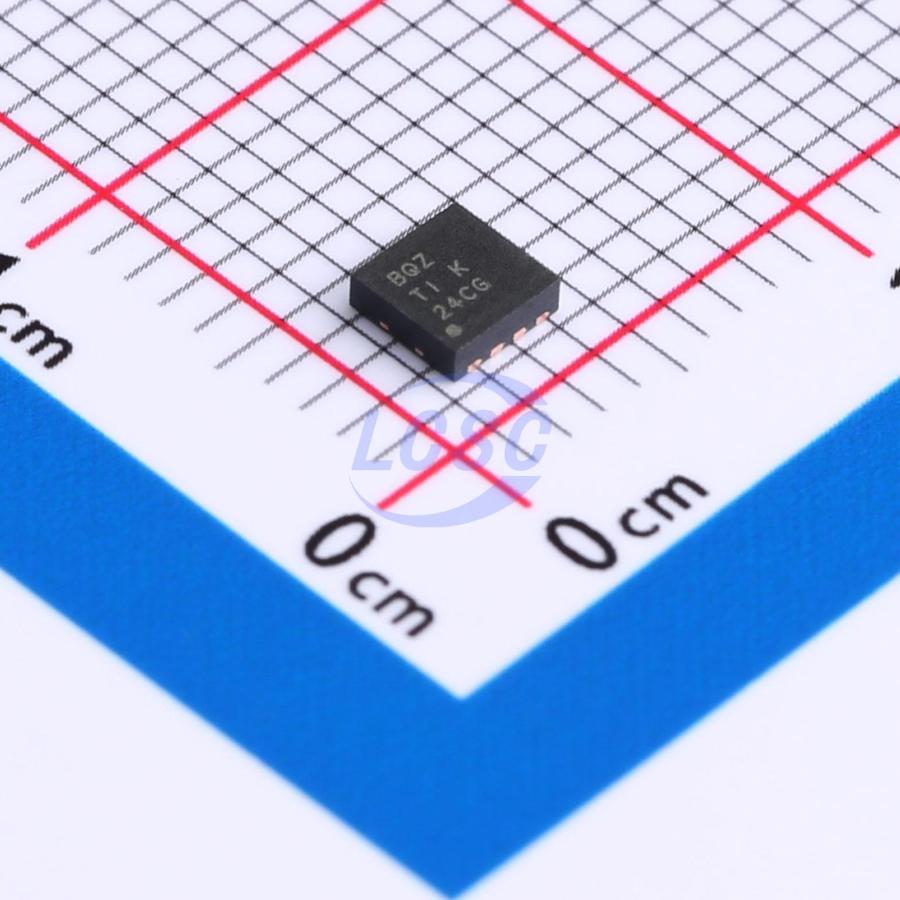

OPA2333AIDRBT

The CMOS OPAx333 series operational amplifiers use proprietary auto-calibration technology to provide extremely low offset voltage (10 μV, maximum) and achieve near-zero drift over time and temperature changes. These high-precision, low quiescent current micro-amplifiers offer high-impedance inputs (common-mode range extends 100 mV beyond the supply rails) and rail-to-rail outputs (swing within 50 mV of the supply rails). They can operate from single or dual supplies as low as 1.8 V (±0.9 V) and up to 5.5 V (±2.75 V). These devices are optimized for low-voltage, single-supply operation. The OPAx333 series provides excellent CMRR without the crossover associated with traditional complementary input stages. This design delivers excellent performance when driving analog-to-digital converters (ADCs) without degrading differential linearity. The OPA333 (single-channel version) is available in 5-pin SOT-23, SOT, and 8-pin SOIC packages, while the OPA2333 (dual-channel version) is available in 8-pin VSON, SOIC, and VSSOP packages. All versions are specified for operation from -40°C to 125°C.

Applications

• Sensors
• Temperature measurement
• Electronic scales
• Medical instrumentation
• Battery-powered instruments
• Handheld test equipment

Key features

• Low offset voltage: 10μV (max)
• Zero drift: 0.05μV/°C (max)
• 0.01Hz to 10Hz noise: 1.1μVPP
• Quiescent current: 17μA
• Single-supply operation
• Supply voltage: 1.8V to 5.5V
• Rail-to-rail input/output
• Miniature packages: SC70 and SOT23
