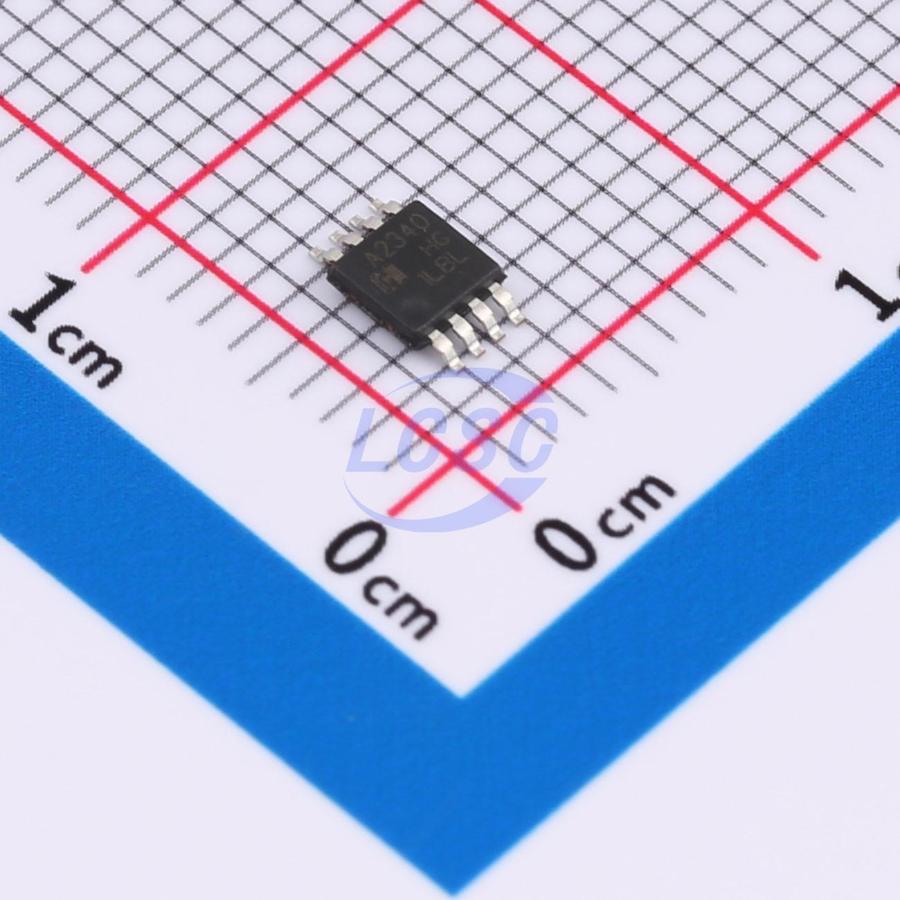

OPA2340MM/TR

30mA 30uV 2.5V/us 20pA 110dB 550uA 4.5MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps

MSOP-8RoHSActive

4.5MHz Zero-Drift CMOS Rail-to-Rail IO Opamp

Manufacturer: HGSEMI
Manufacturer part #: OPA2340MM/TR
Store part #: C22446596
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,827 in stock

#C22446596

Stock & price checked 26 h ago

Quantity	Unit price	Pack price
1+	₹44.43	₹44.43
10+	₹38.68	₹386.80
30+	₹36.36	₹1,090.80
100+	₹33.38	₹3,338.00
500+	₹30.61	₹15,305.00
1,000+	₹29.98	₹29,980.00

Quantity (min 1)

1 × ₹44.43

₹44.43

excl. GST

₹52.43 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

OPA2340MM/TR

₹44.43 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 30mA
Vos - Input Offset Voltage: 30uV
Slew Rate: 2.5V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -45℃~+125℃
Ib - Input Bias Current: 20pA
Common Mode Rejection Ratio(CMRR): 110dB
Input Offset Voltage Drift(Vos TC): 10nV/℃
Quiescent Current: 550uA
Gain Bandwidth Product: 4.5MHz
Features: Zero drift / auto-zero;EMI filtering/RF suppression
Input Voltage Noise Density: 30nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-900mV;900mV~2.75V
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.193 g

Overview

The OPAx340 family of single, dual, and quad op amps represents a new generation of general-purpose, low-power op amps. The family features rail-to-rail input and output swing, low quiescent current (750 µA typical), wide bandwidth (11 MHz), and very low noise (8 nV/√Hz at 10 kHz), making it highly attractive for a wide range of battery-powered applications that require a good balance of cost and performance, such as audio output, motor phase current sensing, photodiode amplification, barcode scanners, and white goods. Low input bias current enables these amplifiers to be used in applications with megaohm-level source impedances. The robust design of the OPAx340 amplifiers provides ease of use for circuit designers: unity-gain stable, capable of driving capacitive loads up to 300 pF, integrated RF/EMI rejection filter, no phase reversal under overdrive conditions, and high ESD protection (4 kV HBM). The OPAx340 amplifiers are optimized for operation over a voltage range of +1.8 V (±0.9 V) to +5.5 V (±2.75 V) at temperatures from 0℃ to 70℃, and can operate over a voltage range of +2.0 V (±1.0 V) to +5.5 V (±2.75 V) over an extended temperature range of −40℃ to +125℃.
