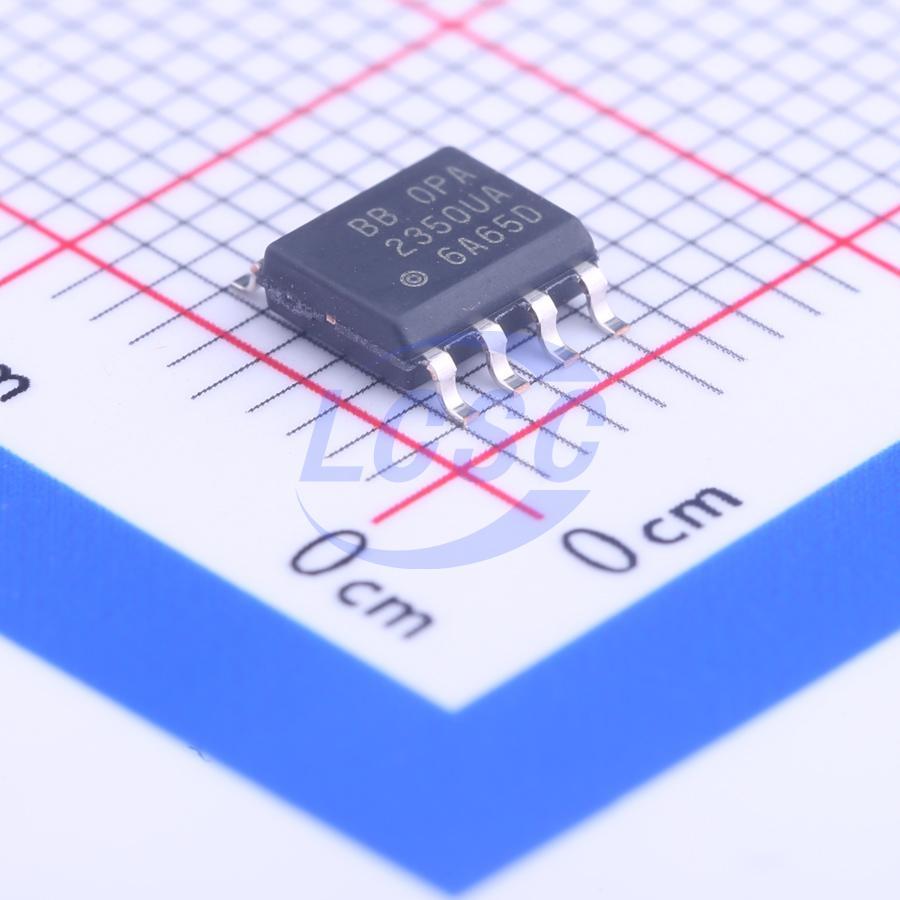

OPA2350UA/2K5

80mA 2 150uV 22V/us 90dB 0.5pA 5.2mA 38MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

High-Speed, Single-Supply, Rail-to-Rail Operational Amplifiers

Manufacturer: TI
Manufacturer part #: OPA2350UA/2K5
Store part #: C55904
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,856 in stock

#C55904

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹320.89	₹320.89
10+	₹277.09	₹2,770.90
30+	₹249.56	₹7,486.80
100+	₹221.38	₹22,138.00
500+	₹208.80	₹1,04,400.00
1,000+	₹203.16	₹2,03,160.00

Quantity (min 1)

1 × ₹320.89

₹320.89

excl. GST

₹378.65 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA2350UA/2K5

₹320.89 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 80mA
Number of Channels: 2
Vos - Input Offset Voltage: 150uV
Slew Rate: 22V/us
Input Offset Current(Ios): 0.5pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 0.5pA
Input Offset Voltage Drift(Vos TC): 4uV/℃
Quiescent Current: 5.2mA
Gain Bandwidth Product: 38MHz
Features: Built-in compensation;ESD protection;Reverse-phase input protection
Input Voltage Noise Density: 7nV/√Hz@10kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.326 g

Overview

The OPA350 series rail-to-rail CMOS operational amplifiers are optimized for low voltage, single-supply operation. Rail-to-rail input/output, low noise (5nV/√Hz), and high speed operation (38MHz, 22V/μs) make them ideal for driving sampling Analog-to-Digital (A/D) converters. They are also well suited for cell phone PA control loops and video processing (75Ω drive capability) as well as audio and general purpose applications. Single, dual, and quad versions have identical specifications for maximum design flexibility. The OPA350 series operates on a single supply as low as 2.5V with an input common-mode voltage range that extends 300mV below ground and 300mV above the positive supply. Output voltage swing is to within 10mV of the supply rails with a 10 kΩ load. Dual and quad designs feature completely independent circuitry for lowest crosstalk and freedom from interaction. The single (OPA350) and dual (OPA2350) come in the miniature MSOP-8 surface mount, SO-8 surface mount, and DIP-8 packages. The quad (OPA4350) packages are the space-saving SSOP-16 surface mount and SO-14 surface mount. All are specified from -40°C to +85°C and operate from -55°C to +150°C.
