TIDatasheet (PDF)

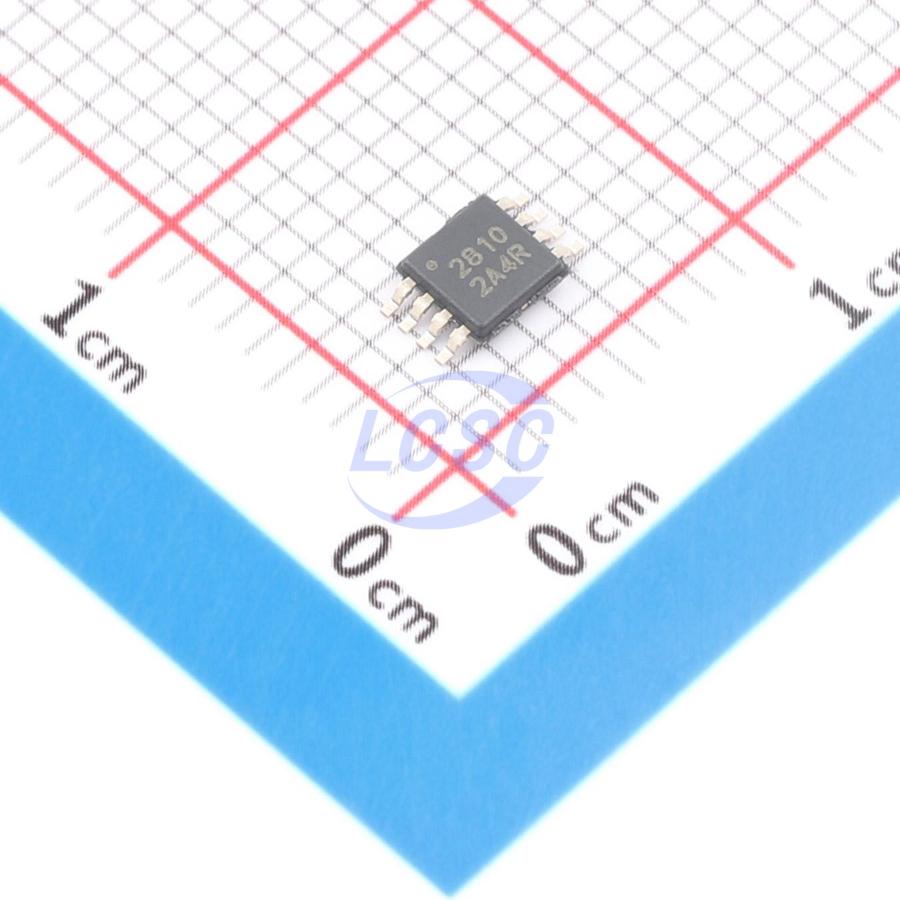

OPA2810IDGKR
50mA 2 500uV 180V/us 100dB 2pA 3.5mA 70MHz Rail-to-Rail Input, Rail-to-Rail Output VSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
VSSOP-8ROHS3 CompliantActive
Dual-channel, high-performance, low-power, wide power supply range rail-to-rail input/output FET-input operational amplifier
- Manufacturer
- TI
- Manufacturer part #
- OPA2810IDGKR
- Store part #
- C2864204
- Package / case
- VSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
86 in stock
#C2864204
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹757.77 | ₹757.77 |
| 10+ | ₹649.80 | ₹6,498.00 |
| 30+ | ₹584.32 | ₹17,529.60 |
| 100+ | ₹529.25 | ₹52,925.00 |
1 × ₹757.77
₹757.77
excl. GST
₹894.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OPA2810IDGKR
₹757.77 for 1 + GST
Specifications
- Output Current
- 50mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 180V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 2pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 3.5mA
- Gain Bandwidth Product
- 70MHz
- Features
- Built-in compensation;ESD protection;Short-Circuit Protection;High capacitive load driving
- Input Voltage Noise Density
- 5.7nV/√Hz@100kHz
- Dual Supply
- -13.5V~-2.375V;2.375V~13.5V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 4.75V~27V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.557 g
