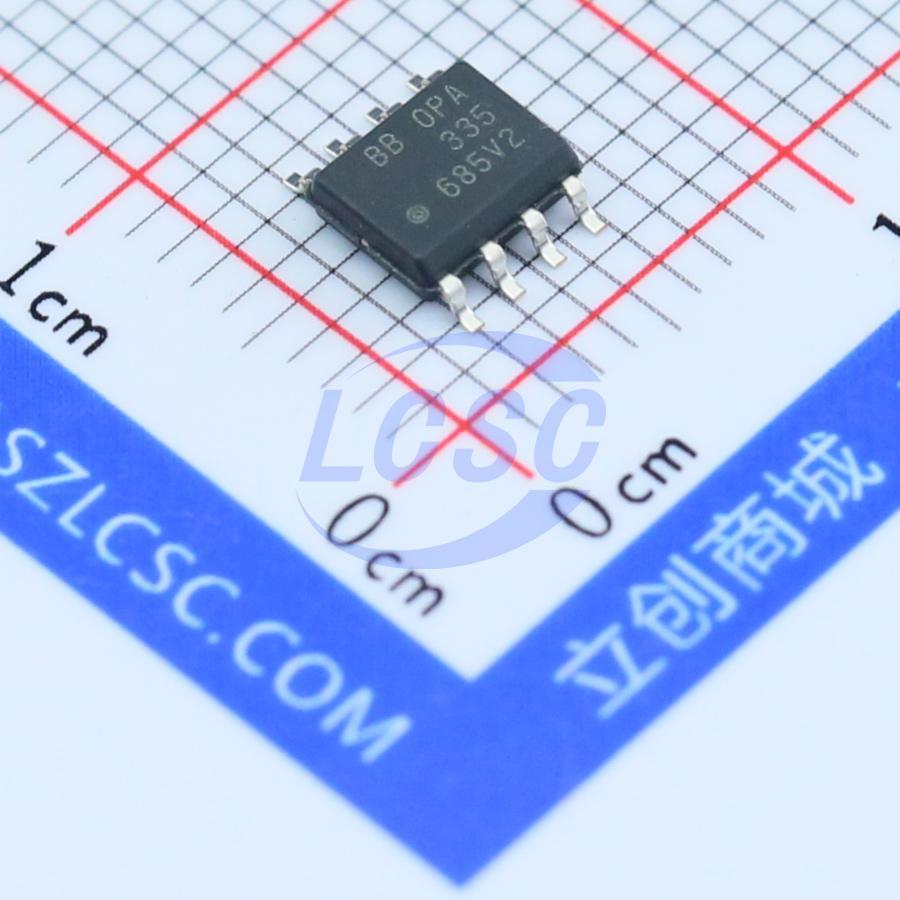

OPA335AIDR

50mA 1 1uV 1.6V/us 130dB 70pA 285uA 2MHz Rail-to-rail output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

Single-Supply CMOS Operational Amplifiers, Zero-Drift Series

Manufacturer: TI
Manufacturer part #: OPA335AIDR
Store part #: C53869
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,841 in stock

#C53869

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹228.10	₹228.10
10+	₹189.15	₹1,891.50
30+	₹167.60	₹5,028.00
100+	₹130.38	₹13,038.00
500+	₹119.72	₹59,860.00
1,000+	₹114.93	₹1,14,930.00

Quantity (min 1)

1 × ₹228.10

₹228.10

excl. GST

₹269.16 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA335AIDR

₹228.10 for 1 + GST

Specifications

Output Current: 50mA
Number of Channels: 1
Vos - Input Offset Voltage: 1uV
Slew Rate: 1.6V/us
Input Offset Current(Ios): 120pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 130dB
Ib - Input Bias Current: 70pA
Input Offset Voltage Drift(Vos TC): 50nV/℃
Quiescent Current: 285uA
Gain Bandwidth Product: 2MHz
Features: Zero drift / auto-zero;Built-in compensation;Reverse-phase input protection
Dual Supply: -2.75V~-1.35V;1.35V~2.75V
Rail to Rail: Rail-to-rail output
Single Supply: 2.7V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.173 g

Overview

The OPA334 and OPA335 series of CMOS operational amplifiers use auto-zeroing techniques to simultaneously provide very low offset voltage (5μV max), and near-zero drift over time and temperature. These miniature, high-precision, low quiescent current amplifiers offer high input impedance and rail-to-rail output swing. Single or dual supplies as low as +2.7V (±1.35V) and up to +5.5V (±2.75V) may be used. These op amps are optimized for low-voltage, single-supply operation. The OPA334 family includes a shutdown mode. Under logic control, the amplifiers can be switched from normal operation to a standby current of 2μA. When the Enable pin is connected high, the amplifier is active. Connecting Enable low disables the amplifier, and places the output in a high-impedance state. The OPA334 (single version with shutdown) comes in MicroSIZE SOT23-6. The OPA335 (single version without shutdown) is available in SOT23-5, and SO-8. The OPA2334 (dual version with shutdown) comes in MicroSIZE MSOP-10. The OPA2335 (dual version without shutdown) is offered in the MSOP-8 and SO-8 packages. All versions are specified for operation from -40°C to +125°C.
