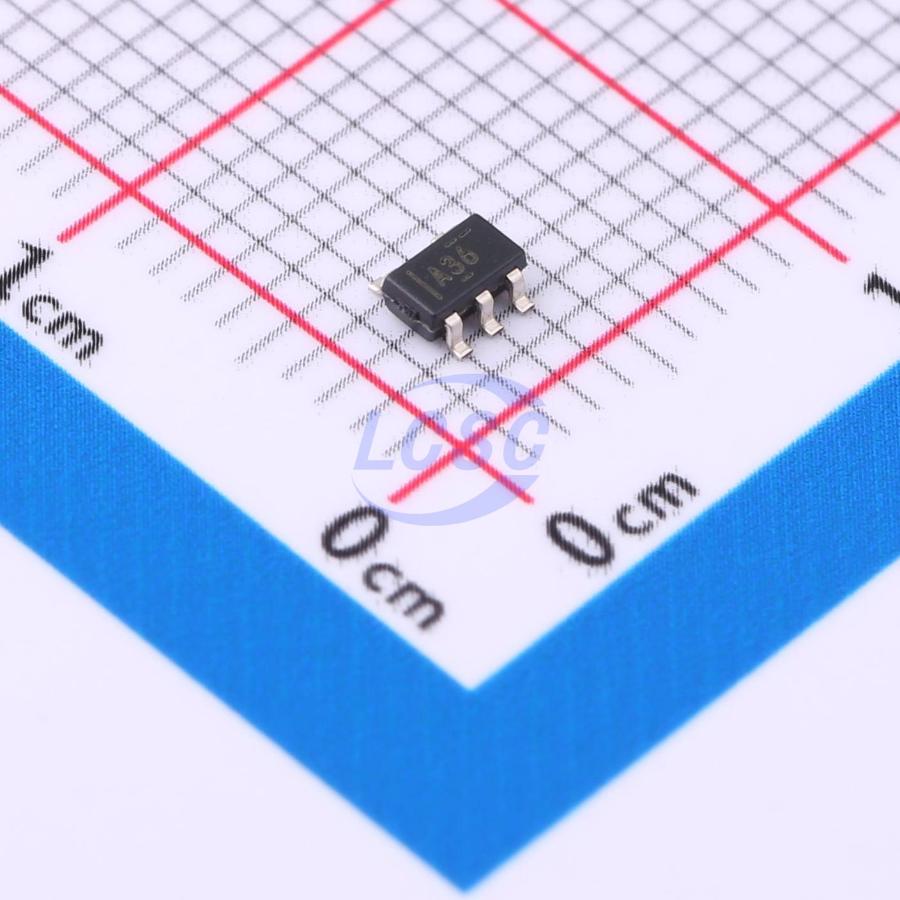

OPA336NA/250
5mA 1 125uV 0.03V/us 90dB 1pA 20uA 100kHz Rail-to-rail output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS3 CompliantActive
SINGLE-SUPPLY, microPower CMOS OPERATIONAL AMPLIFIERS
- Manufacturer
- TI
- Manufacturer part #
- OPA336NA/250
- Store part #
- C2057608
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
46 in stock
#C2057608
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹345.53 | ₹345.53 |
| 10+ | ₹293.30 | ₹2,933.00 |
| 30+ | ₹260.46 | ₹7,813.80 |
| 250+ | ₹227.07 | ₹56,767.50 |
| 500+ | ₹211.82 | ₹1,05,910.00 |
| 1,000+ | ₹205.35 | ₹2,05,350.00 |
1 × ₹345.53
₹345.53
excl. GST
₹407.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 250 per reel
OPA336NA/250
₹345.53 for 1 + GST
Specifications
- Output Current
- 5mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 125uV
- Slew Rate
- 0.03V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 1.5uV/℃
- Quiescent Current
- 20uA
- Gain Bandwidth Product
- 100kHz
- Features
- Built-in compensation;Reverse-phase input protection
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.3V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 250 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
