TECH PUBLICDatasheet (PDF)

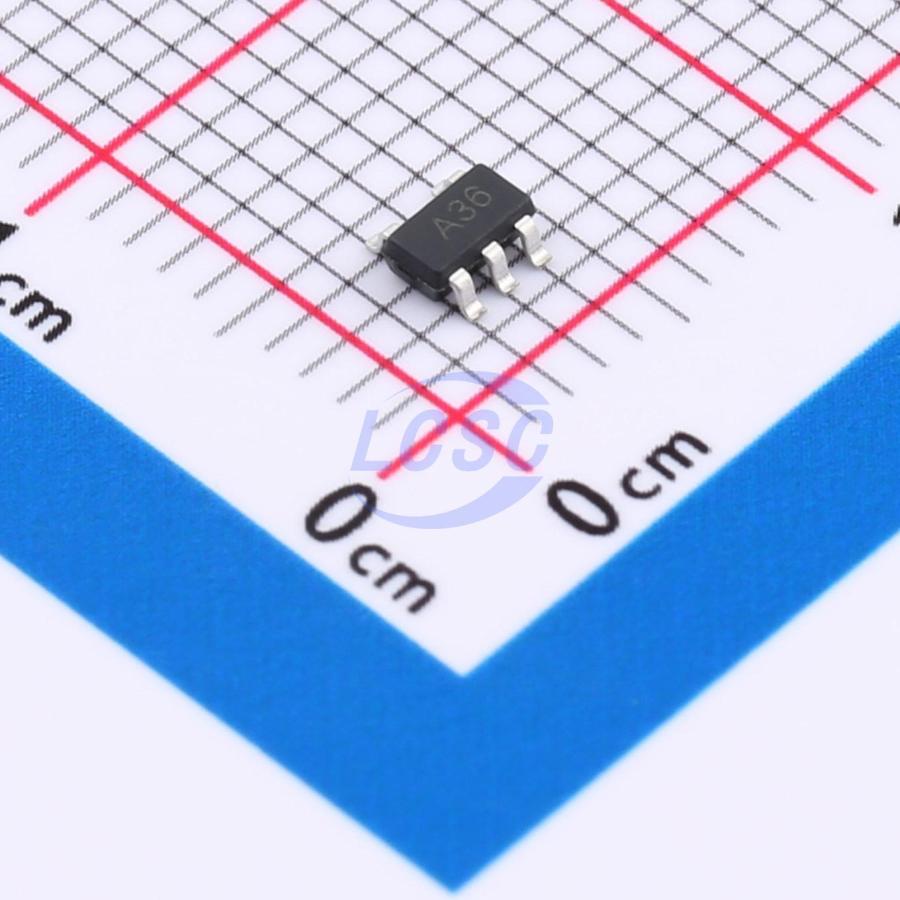

OPA336NA-TP
21mA 8uV 0.1V/us 1pA 135dB 21uA 200kHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
CMOS Operational Amplifier Zero Drift
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- OPA336NA-TP
- Store part #
- C41431829
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,031 in stock
#C41431829
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹47.81 | ₹47.81 |
| 10+ | ₹41.73 | ₹417.30 |
| 30+ | ₹39.12 | ₹1,173.60 |
| 100+ | ₹35.85 | ₹3,585.00 |
| 500+ | ₹34.56 | ₹17,280.00 |
| 1,000+ | ₹33.68 | ₹33,680.00 |
1 × ₹47.81
₹47.81
excl. GST
₹56.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
OPA336NA-TP
₹47.81 for 1 + GST
Specifications
- Output Current
- 21mA
- Vos - Input Offset Voltage
- 8uV
- Slew Rate
- 0.1V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -50℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 135dB
- Input Offset Voltage Drift(Vos TC)
- 10nV/℃
- Quiescent Current
- 21uA
- Gain Bandwidth Product
- 200kHz
- Features
- Zero drift / auto-zero;Built-in compensation
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-900mV;900mV~2.75V
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.039 g
Overview
The OPA336N of CMOS operational amplifiers use a proprietary auto-calibration technique to simultaneously provide very low offset voltage (±10μV, maximum) and near-zero drift over time and temperature. These miniature, high-precision, low quiescent current (21uA) amplifiers offer high impedance inputs that have a common-mode range 100 mV beyond the rails, and rail-to-rail output that swings within 50 mV of the rails. Single or dual supplies as low as 1.8V (±0.9V) and up to 5.5V (+2.75V) can be used. These devices are optimized for low voltage, single-supply operation.
Applications
- Temperature Sensors
- Battery-Powered Instruments
- Smoke/Gas/Environment Sensors
- Medical Equipment
- Portable Instruments and Mobile Device
- Active Filters
- Piezo Electrical Transducer Amplifier
- Sensor Interface
- Handheld Test Equipment
Key features
- General Purpose, Low Cost
- Gain Bandwidth Product: 200KHz
- Low Quiescent Current: 21μA/Amplifier
- 0.01Hz - 10Hz Noise: 1.5μVₚ₋ₚ
- Zero Drift: 0.01μV/°C (Typ)
- Input Bias Current: 20pA
- Unity Gain Stable
- Rail-to-Rail Input and Output
- Single or Dual Supply Operation
- Supply Voltage Range: 1.8V to 5.5V
- Operating Temperature: -50°C ~ +125°C
- Type Package: SOT23-5
