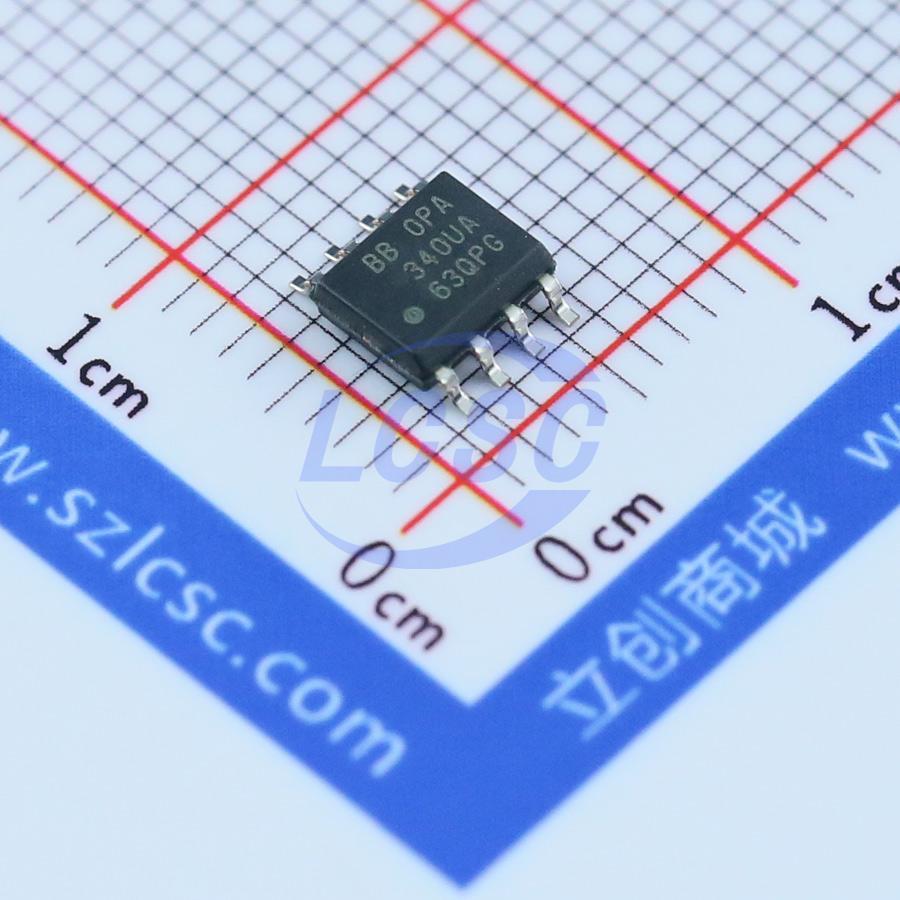

OPA340UA/2K5

OPA340 series rail-to-rail CMOS operational amplifiers are optimized for low-voltage, single-supply operation. Rail-to-rail input/output and high-speed operation make them ideal for driving sampling analog-to-digital (A/D) converters. They are also well-suited for general purpose and audio applications as well as providing I/V conversion at the output of digital-to-analog (D/A) converters. Single, dual, and quad versions have identical specifications for design flexibility. The OPA340 series operate on a single supply as low as 2.5V with an input common-mode voltage range that extends 500mV below ground and 500mV above the positive supply. Output voltage swing is to within 1mV of the supply rails with a 100kΩ load. They offer excellent dynamic response (BW = 5.5MHz, SR = 6V/μs), yet quiescent current is only 750μA. Dual and quad designs feature completely independent circuitry for lowest crosstalk and freedom from interaction. The single (OPA340) packages are the tiny 5-lead SOT23-5 surface mount, SO-8 surface mount, and DIP-8. The dual (OPA2340) comes in the miniature MSOP-8 surface mount, SO-8 surface mount, and DIP-8 packages. The quad (OPA4340) packages are the space-saving SSOP-16 surface mount and SO-14 surface mount. All are specified from -40°C to +85°C and operate from -55°C to +125°C. A SPICE macromodel is available for design analysis.

Applications

• DRIVING A/D CONVERTERS
• PCMCIA CARDS
• DATA ACQUISITION
• PROCESS CONTROL
• AUDIO PROCESSING
• COMMUNICATIONS
• ACTIVE FILTERS
• TEST EQUIPMENT

Key features

• RAIL-TO-RAIL INPUT
• RAIL-TO-RAIL OUTPUT (within 1mV)
• MicroSIZE PACKAGES
• WIDE BANDWIDTH: 5.5MHz
• HIGH SLEW RATE: ±6V/μs
• LOW THD + NOISE: 0.0007% (f = 1kHz)
• LOW QUIESCENT CURRENT: 750μA/channel
• SINGLE, DUAL, AND QUAD VERSIONS
