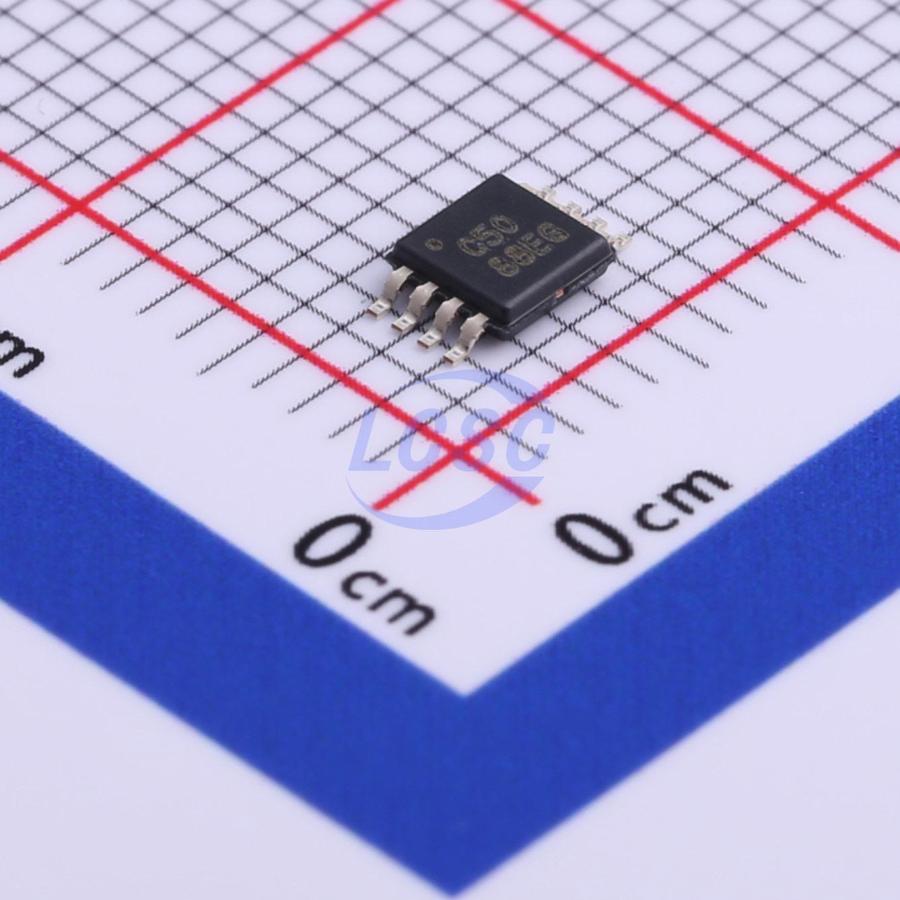

OPA350EA/2K5

The OPA350 series of rail-to-rail CMOS operational amplifiers are optimized for low voltage, single-supply operation. Rail-to-rail input and output, low noise (5 nV/√Hz), and high speed operation (38 MHz, 22 V/μs) make the amplifiers ideal for driving sampling Analogto-Digital (A/D) converters. They are also suited for cell phone PA control loops and video processing (75-Ω drive capability), as well as audio and general purpose applications. Single, dual, and quad versions have identical specifications for maximum design flexibility. The OPA350 series operates on a single supply as low as 2.5 V, with an input common-mode voltage range that extends 300 mV below ground and 300 mV above the positive supply. Output voltage swing is to within 10 mV of the supply rails, with a 10-kΩ load. Dual and quad designs feature completely independent circuitry for lowest crosstalk and freedom from interaction. The single (OPA350) and dual (OPA2350) come in the miniature MSOP-8 surface mount, SO-8 surface mount, and DIP-8 packages. The quad (OPA4350) packages are in the space-saving SSOP-16 surface mount and SO-14 surface mount. All are specified from -40°C to 85°C and operate from -55°C to 150°C.

Applications

• Cell Phone PA Control Loops
• Driving A/D Converters
• Video Processing
• Data Acquisition
• Process Controls
• Audio Processing
• Communications
• Active Filters
• Test Equipment

Key features

• Rail-to-Rail Input
• Rail-to-Rail Output (Within 10 mV)
• Wide Bandwidth: 38 MHz
• High Slew Rate: 22 V/μs
• Low Noise: 5 nV/√Hz
• Low THD + Noise: 0.0006%
• Unity-Gain Stable
• MicroSize Packages Single, Dual, and Quad
