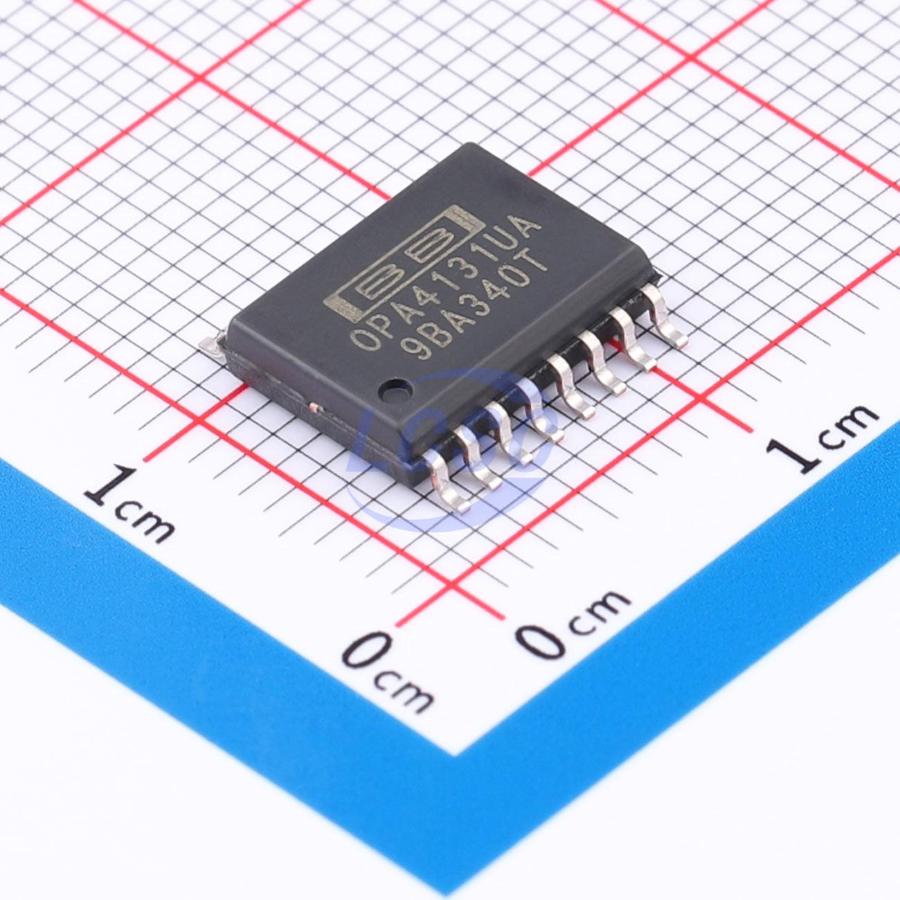

OPA4131UA/1K

25mA Four channels 200uV 10V/us 80dB 5pA 1.5mA 4MHz SOIC-16-300mil Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-16-300milROHS3 CompliantActive

General-Purpose FET-INPUT OPERATIONAL AMPLIFIERS

Manufacturer: TI
Manufacturer part #: OPA4131UA/1K
Store part #: C2060799
Package / case: SOIC-16-300mil
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C2060799

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹1,580.43	₹1,580.43
10+	₹1,525.66	₹15,256.60

Quantity (min 1)

1 × ₹1,580.43

₹1,580.43

excl. GST

₹1,864.91 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

OPA4131UA/1K

₹1,580.43 for 1 + GST

Specifications

Output Current: 25mA
Number of Channels: Four channels
Vos - Input Offset Voltage: 200uV
Slew Rate: 10V/us
Input Offset Current(Ios): 50pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 5pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 1.5mA
Gain Bandwidth Product: 4MHz
Features: High capacitive load driving;Short-Circuit Protection
Input Voltage Noise Density: 15nV/√Hz@1kHz
Dual Supply: -18V~-4.5V;4.5V~18V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.001 g
