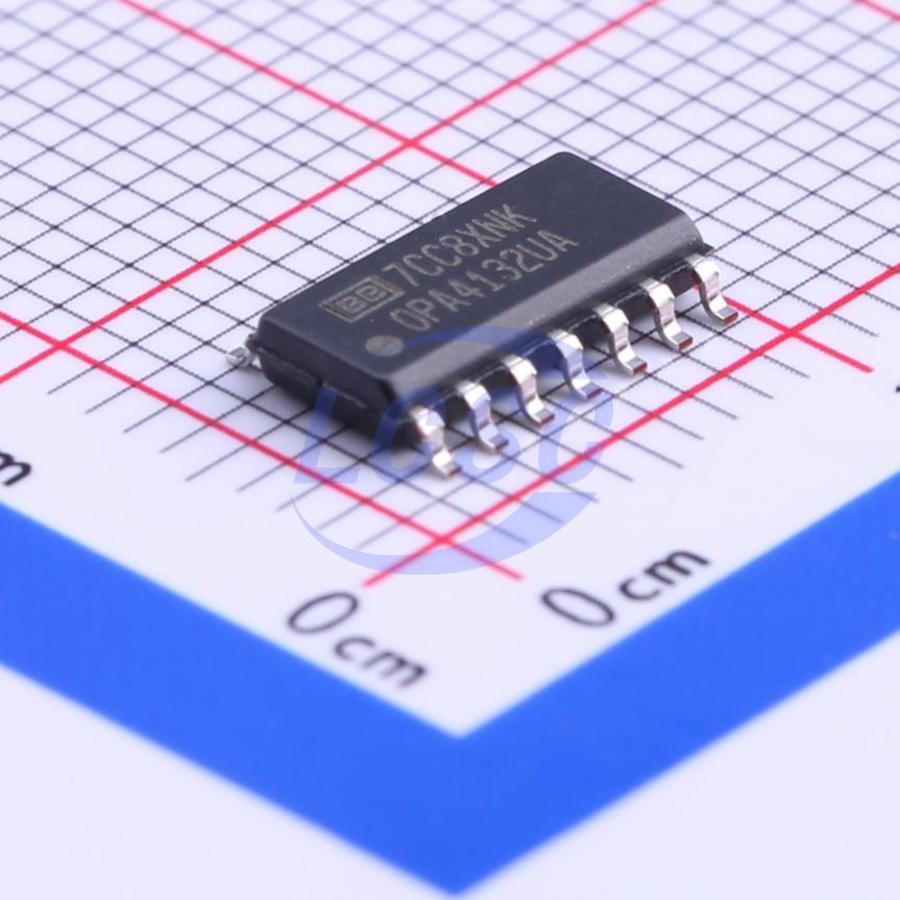

OPA4132UA/2K5

36mA 4 500uV 20V/us 96dB 50pA 4.8mA 8MHz SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-14ROHS3 CompliantActive

Manufacturer: TI
Manufacturer part #: OPA4132UA/2K5
Store part #: C192725
Package / case: SOIC-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

18 in stock

#C192725

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
1+	₹1,350.49	₹1,350.49
10+	₹1,320.51	₹13,205.10
30+	₹1,300.32	₹39,009.60
100+	₹1,280.33	₹1,28,033.00

Quantity (min 1)

1 × ₹1,350.49

₹1,350.49

excl. GST

₹1,593.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA4132UA/2K5

₹1,350.49 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 36mA
Number of Channels: 4
Vos - Input Offset Voltage: 500uV
Slew Rate: 20V/us
Input Offset Current(Ios): 2pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 96dB
Ib - Input Bias Current: 50pA
Input Offset Voltage Drift(Vos TC): 10uV/℃
Quiescent Current: 4.8mA
Gain Bandwidth Product: 8MHz
Features: Built-in compensation;High capacitive load driving
Input Voltage Noise Density: 8nV/√Hz@1kHz
Dual Supply: -18V~-2.5V;2.5V~18V
Single Supply: 9V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.34 g
