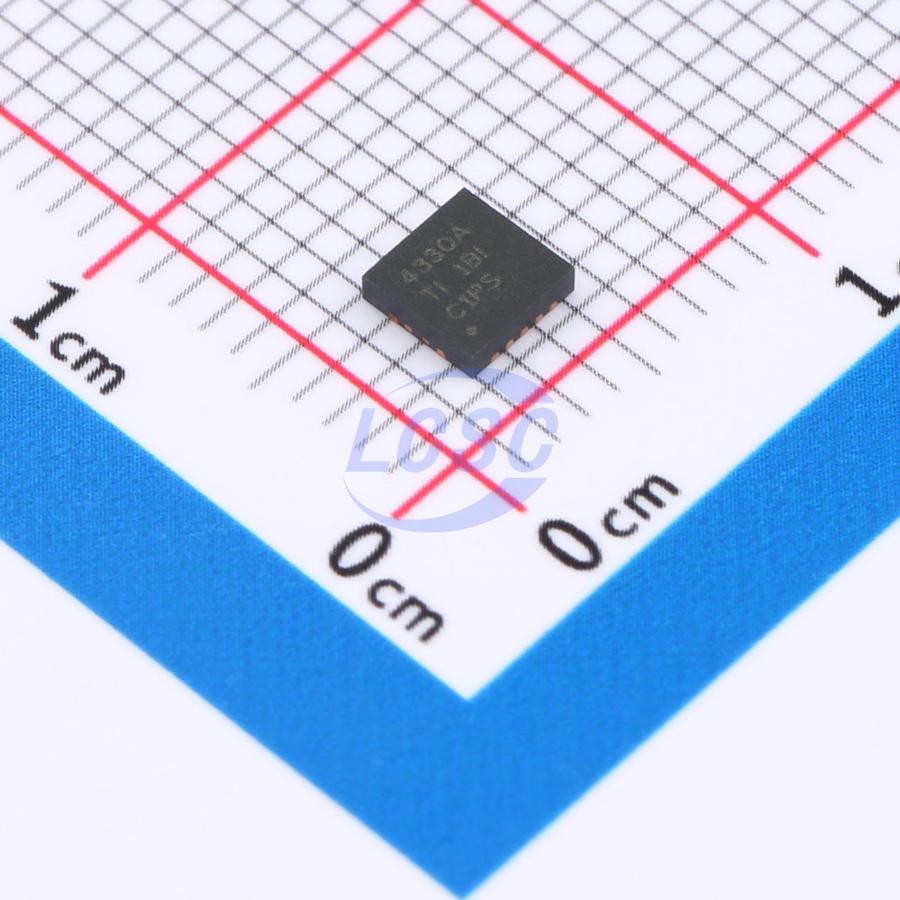

OPA4330AIRGYR

5mA Four channels 8uV 0.16V/us 70pA 115dB 350kHz 21uA Rail-to-Rail Input, Rail-to-Rail Output VQFN-14-EP(3.5x3.5) Instrumentation, Op Amps, Buffer Amps RoHS

VQFN-14-EP(3.5x3.5)ROHS3 CompliantActive

OPAx330 CMOS Operational Amplifiers Zero-Drift Series

Manufacturer: TI
Manufacturer part #: OPA4330AIRGYR
Store part #: C2059987
Package / case: VQFN-14-EP(3.5x3.5)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

52 in stock

#C2059987

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹751.99	₹751.99
10+	₹649.78	₹6,497.80
30+	₹588.79	₹17,663.70
100+	₹527.37	₹52,737.00
500+	₹498.94	₹2,49,470.00
1,000+	₹486.14	₹4,86,140.00

Quantity (min 1)

1 × ₹751.99

₹751.99

excl. GST

₹887.35 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

OPA4330AIRGYR

₹751.99 for 1 + GST

Specifications

Output Current: 5mA
Number of Channels: Four channels
Vos - Input Offset Voltage: 8uV
Slew Rate: 0.16V/us
Input Offset Current(Ios): 140pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 70pA
Common Mode Rejection Ratio(CMRR): 115dB
Input Offset Voltage Drift(Vos TC): 20nV/℃
Gain Bandwidth Product: 350kHz
Quiescent Current: 21uA
Features: Zero drift / auto-zero;EMI filtering/RF suppression
Input Voltage Noise Density: 55nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-900mV;900mV~2.75V
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.06 g
