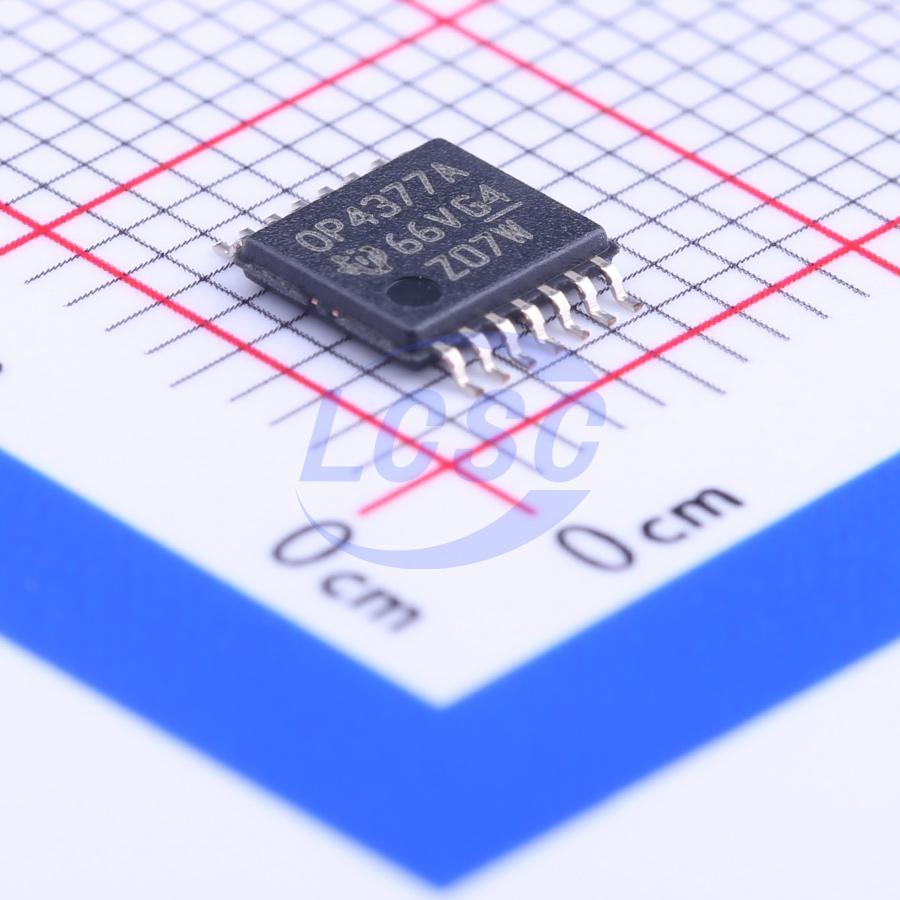

OPA4377AIPWR

The OPA377 family of operational amplifiers are wide-bandwidth CMOS amplifiers that provide very low noise, low input bias current, and low offset voltage while operating on a low quiescent current of 0.76mA (typ). The OPA377 op amps are optimized for low-voltage, single-supply applications. The exceptional combination of ac and dc performance make them ideal for a wide range of applications, including small signal conditioning, audio, and active filters. In addition, these parts have a wide supply range with excellent PSRR, making them attractive for applications that run directly from batteries without regulation. The OPA377 is available in the SC70-5, SOT23-5, and SO-8 packages. The dual OPA2377 is offered in the SO-8 and MSOP-8, and the quad OPA4377 in the TSSOP-14 packages. All versions are specified for operation from -40°C to +125°C.

Applications

• PHOTODIODE PREAMP
• PIEZOELECTRIC SENSOR PREAMP
• SENSOR SIGNAL CONDITIONING
• AUDIO EQUIPMENT
• ACTIVE FILTERS

Key features

• GAIN BANDWIDTH PRODUCT: 5.5MHz
• LOW NOISE: 7.5nV/√Hz at 1kHz
• OFFSET VOLTAGE: 1mV (max)
• INPUT BIAS CURRENT: 0.2pA
• RAIL-TO-RAIL OUTPUT
• UNITY-GAIN STABLE
• EMI INPUT FILTERING
• QUIESCENT CURRENT: 0.76mA/ch
• SUPPLY VOLTAGE: 2.2V to 5.5V
• SMALL PACKAGES: SC70, SOT23, and MSOP
