TIDatasheet (PDF)

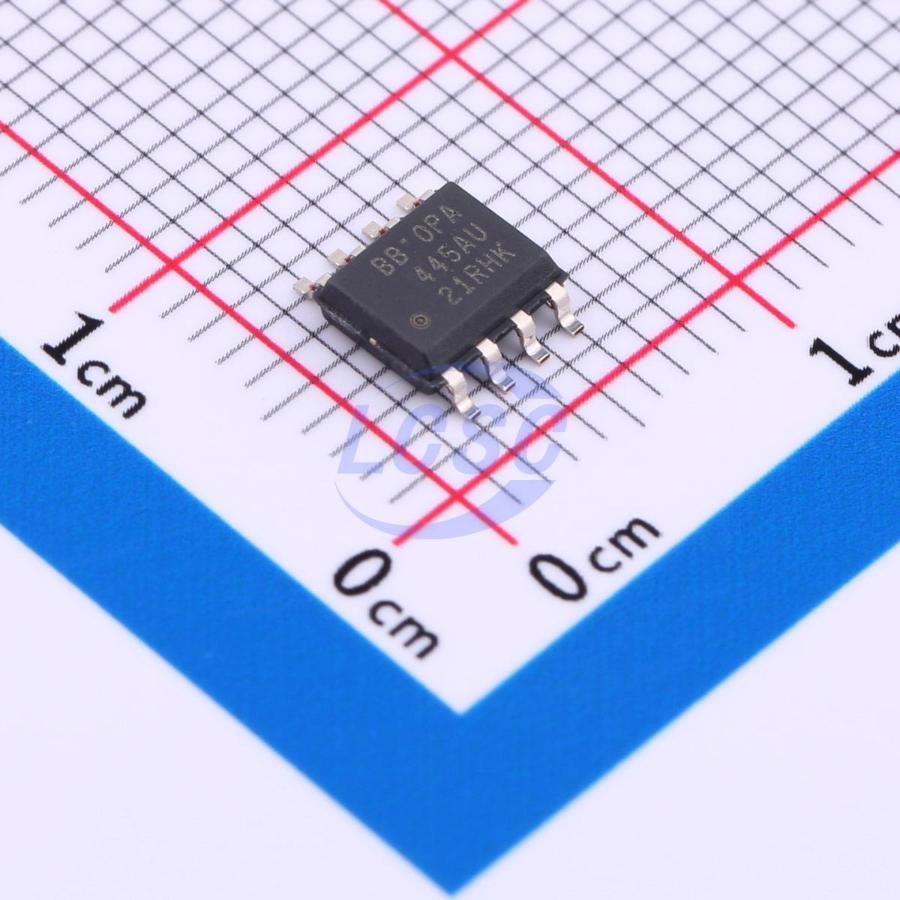

OPA445AU/2K5
15mA 1 1.5mV 15V/us 80dB 10pA 4.2mA 97MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS CompliantActive
High Voltage FET-Input Operational Amplifier
- Manufacturer
- TI
- Manufacturer part #
- OPA445AU/2K5
- Store part #
- C1348606
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,878 in stock
#C1348606
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,649.97 | ₹1,649.97 |
| 10+ | ₹1,495.81 | ₹14,958.10 |
| 30+ | ₹1,397.15 | ₹41,914.50 |
| 100+ | ₹1,301.75 | ₹1,30,175.00 |
1 × ₹1,649.97
₹1,649.97
excl. GST
₹1,946.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OPA445AU/2K5
₹1,649.97 for 1 + GST
Specifications
- Output Current
- 15mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 1.5mV
- Slew Rate
- 15V/us
- Input Offset Current(Ios)
- 4pA
- Operating Temperature
- -55℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 10pA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 4.2mA
- Gain Bandwidth Product
- 97MHz
- Input Voltage Noise Density
- 15nV/√Hz@1kHz
- Dual Supply
- -45V~-10V;10V~45V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
The OPA445 is a monolithic operational amplifier capable of operation from power supplies up to ±45V and output currents of 15mA. It is useful in a wide variety of applications requiring high output voltage or large common - mode voltage swings. The OPA445's high slew rate provides wide power bandwidth response, which is often required for high - voltage applications. FET input circuitry allows the use of high - impedance feedback networks, thus minimizing their output loading effects. Laser trimming of the input circuitry yields low input offset voltage and drift. The OPA445 is available in standard pinout TO - 99, DIP - 8, and SO - 8 surface - mount packages as well as an SO - 8 PowerPAD package for reducing junction temperature. It is fully specified from - 25°C to + 85°C and operates from - 55°C to + 125°C.
Applications
- TEST EQUIPMENT
- HIGH - VOLTAGE REGULATORS
- POWER AMPLIFIERS
- DATA ACQUISITION
- SIGNAL CONDITIONING
- AUDIO
- PIEZO DRIVERS
Key features
- WIDE - POWER SUPPLY RANGE: ±10V to ±45V
- HIGH SLEW RATE: 15V/μs
- LOW INPUT BIAS CURRENT: 10pA
- STANDARD - PINOUT TO - 99, DIP, SO - 8 PowerPADTM, AND SO - 8 SURFACE - MOUNT PACKAGES
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| OPA445AU#C1346162TI · SOIC-8 | TI | SOIC-8 | On request | Price on request | Quote | |
