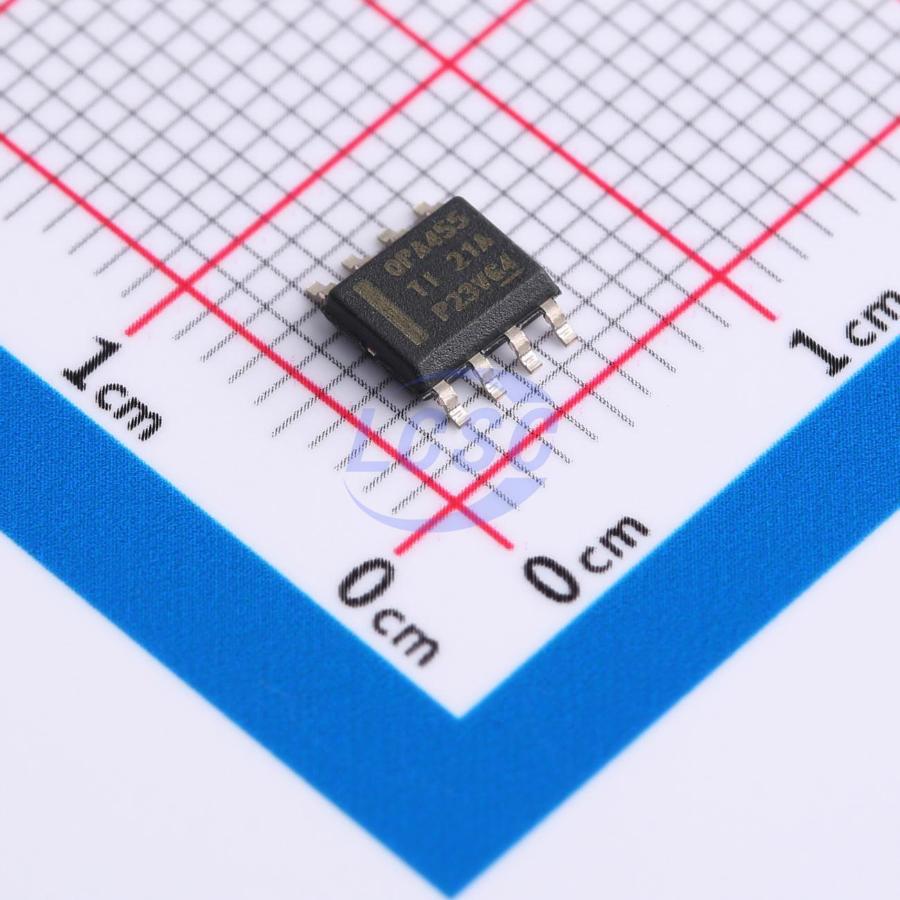

OPA455IDDAR

The OPA455 is a high-voltage (150V), high output current drive (45mA), unity-gain stable op-amp with a gain bandwidth product of 6.5MHz and a slew rate of 32V/µs. Due to its wide output swing, this device is well-suited for high-voltage piezoelectric driving, avalanche photodiode biasing, and high-voltage Howland current pumps or voltage output stages. The OPA455 features internal protection against overtemperature conditions and current overload. The device operates fully over a wide supply voltage range of ±6V to ±75V or from a single supply of 12V to 150V. The status flag is an open-drain output, allowing the device to conveniently use standard low-voltage logic circuits as a reference. This high-voltage op-amp offers excellent precision and wide output swing without the phase reversal issues found in similar op-amps. The output can be disabled via the Enable/Disable (E/D) pin. The E/D pin features a common return pin for easy interfacing with low-voltage logic. This disable function operates without disturbing the input signal path, saving power while protecting the load.

Applications

• Semiconductor testing
• Optical modules
• Laboratory and field instrumentation
• Semiconductor manufacturing
• Multi-parameter patient monitors
• PC and laptop display panels

Key features

• Wide supply range: – ±6 V to ±75 V– 12 V to 150 V
• High output load drive: IO ±45mA
• Current limit protection
• Thermal shutdown protection
• Status flag
• Independent output disable
• Gain bandwidth: 6.5 MHz
• Slew rate: 32 V/µs
• Wide temperature range: – -40°C to +85°C
• 8-pin HSOIC (SO PowerPAD) package
