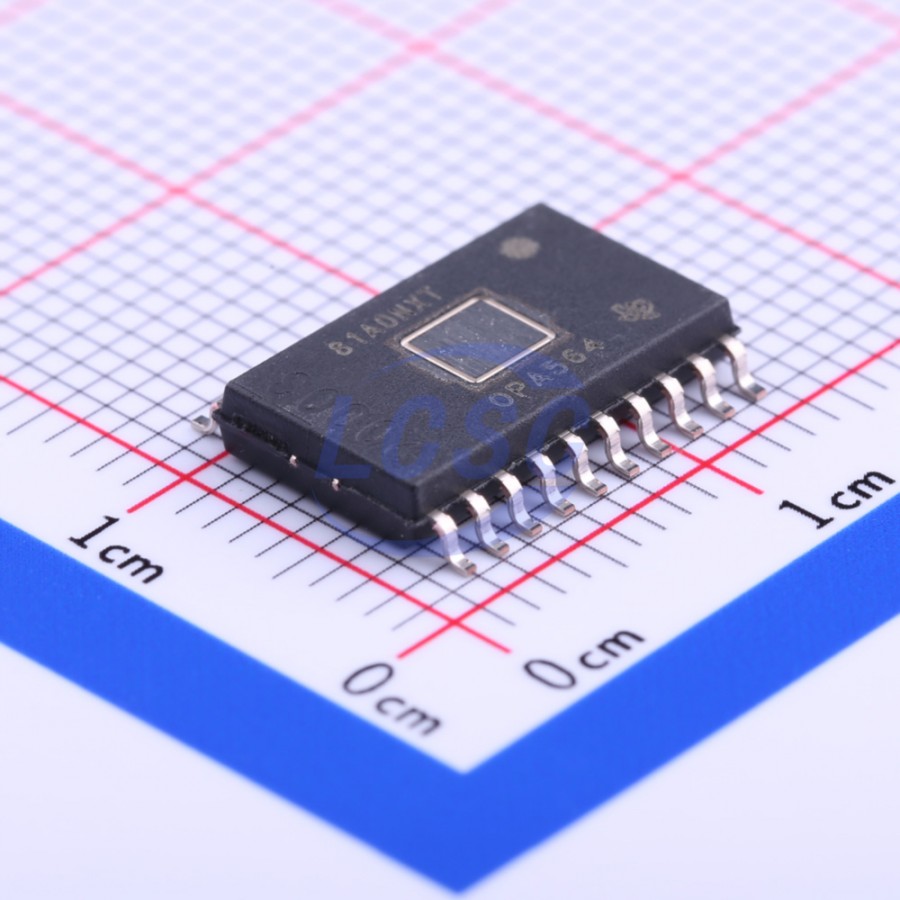

OPA564AIDWDR
1.5A 1 20mV 40V/us 80dB 150pA 39mA 17MHz HSOP-20-300mil Instrumentation, Op Amps, Buffer Amps RoHS
HSOP-20-300milROHS3 CompliantActive
1.5A, 24V, 17MHz Power Operational Amplifier
- Manufacturer
- TI
- Manufacturer part #
- OPA564AIDWDR
- Store part #
- C201690
- Package / case
- HSOP-20-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,185 in stock
#C201690
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹493.07 | ₹493.07 |
| 10+ | ₹418.21 | ₹4,182.10 |
| 30+ | ₹349.46 | ₹10,483.80 |
| 100+ | ₹301.59 | ₹30,159.00 |
| 500+ | ₹279.83 | ₹1,39,915.00 |
| 1,000+ | ₹270.47 | ₹2,70,470.00 |
1 × ₹493.07
₹493.07
excl. GST
₹581.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
OPA564AIDWDR
₹493.07 for 1 + GST
Specifications
- Output Current
- 1.5A
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 20mV
- Slew Rate
- 40V/us
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 150pA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 39mA
- Gain Bandwidth Product
- 17MHz
- Features
- Enable/shutdown function
- Input Voltage Noise Density
- 10nV/√Hz@1kHz
- Dual Supply
- -12V~-3.5V;3.5V~12V
- Single Supply
- 7V~24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.8 g
Overview
The OPA564 is a low-cost, high-current operational amplifier that is ideal for driving up to 1.5A into reactive loads. The high slew rate provides 1.3MHz full-power bandwidth and excellent linearity. These monolithic integrated circuits provide high reliability in demanding powerline communications and motor control applications. The OPA564 operates from a single supply of 7V to 24V, or dual power supplies of ±3.5V to ±12V. In single-supply operation, the input common-mode range extends to the negative supply. At maximum output current, a wide output swing provides a 20VPP (IOUT = 1.5A) capability with a nominal 24V supply. The OPA564 is internally protected against over-temperature conditions and current overloads. It is designed to provide an accurate, user-selected current limit. Two flag outputs are provided; one indicates current limit and the second shows a thermal over-temperature condition. It also has an Enable/Shutdown pin that can be forced low to shut down the output, effectively disconnecting the load. The OPA564 is housed in a thermally-enhanced, surface-mount PowerPAD package (HSOP-20) with the choice of the thermal pad on either the top side or the bottom side of the package. Operation for both versions is specified over the industrial temperature range, -40°C to +85°C.
Applications
- POWERLINE COMMUNICATIONS
- VALVE, ACTUATOR DRIVER
- Vcom DRIVER
- MOTOR DRIVER
- AUDIO POWER AMPLIFIER
- POWER-SUPPLY OUTPUT AMPLIFIER
- TEST EQUIPMENT AMPLIFIER
- TRANSDUCER EXCITATION
- LASER DIODE DRIVER
- GENERAL-PURPOSE LINEAR POWER BOOSTER
Key features
- HIGH OUTPUT CURRENT: 1.5A
- WIDE POWER-SUPPLY RANGE:
- Single Supply: +7V to +24V; Dual Supply: ±3.5V to ±12V
- LARGE OUTPUT SWING: 20VPP at 1.5A
- FULLY PROTECTED:
- THERMAL SHUTDOWN
- ADJUSTABLE CURRENT LIMIT
- DIAGNOSTIC FLAGS:
- OVER-CURRENT
- THERMAL SHUTDOWN
- OUTPUT ENABLE/SHUTDOWN CONTROL
- HIGH SPEED:
- GAIN-BANDWIDTH PRODUCT: 17MHz
- FULL-POWER BANDWIDTH AT 10VPP: 1.3MHz
- SLEW RATE: 40V/μs
- DIODE FOR JUNCTION TEMPERATURE MONITORING
- HSOP-20 PowerPAD PACKAGE (Bottom- and Top-Side Thermal Pad Versions)
