DIODESDatasheet (PDF)

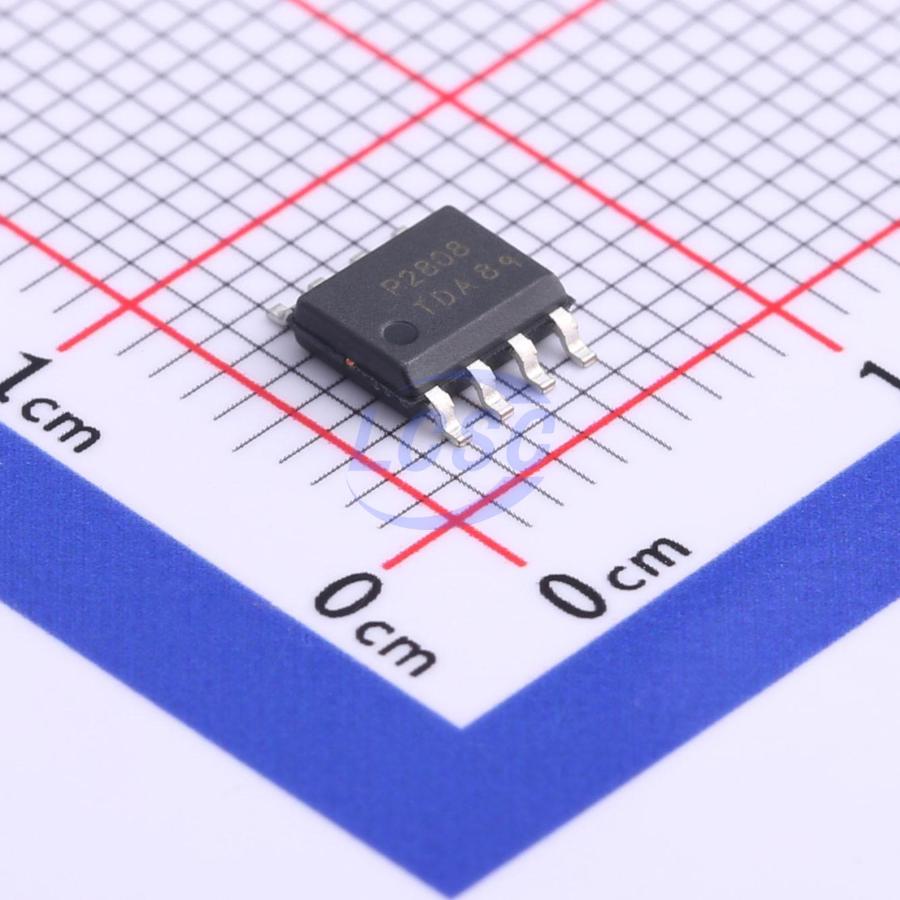

PAM2808BLBR
PWM 1 DC-DC 1.5A 2.5V~6V SO-8-EP LED Drivers RoHS
SO-8-EPROHS3 CompliantActive
5W High Power HBLED Driver
- Manufacturer
- DIODES
- Manufacturer part #
- PAM2808BLBR
- Store part #
- C780872
- Package / case
- SO-8-EP
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,500 in stock
#C780872
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.55 | ₹202.75 |
| 50+ | ₹31.78 | ₹1,589.00 |
| 150+ | ₹28.02 | ₹4,203.00 |
| 500+ | ₹23.34 | ₹11,670.00 |
| 2,500+ | ₹21.25 | ₹53,125.00 |
| 5,000+ | ₹20.00 | ₹1,00,000.00 |
5 × ₹40.55
₹202.75
excl. GST
₹239.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
PAM2808BLBR
₹202.75 for 5 + GST
Specifications
- Dimming
- PWM
- Number of Channels
- 1
- Type
- DC-DC
- Switch tube (built-in/external)
- Built-in
- Operating Temperature
- -40℃~+85℃
- Output Current
- 1.5A
- Features
- LED open-circuit protection;Over-Temperature Protection (OTP);Short Circuit Protection
- Voltage - Input(DC)
- 2.5V~6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.189 g
Overview
The PAM2808 is a 5W high power HBLED driver with 1.5A constant current. It features high efficiency and low quiescent current, making it ideal for battery powered applications. The PAM2808 features overcurrent protection and over temperature shutdown. The PAM2808 is stable with a ceramic output capacitor of 4.7μF or higher. PAM2808 is available in SO-8EP (Type B) package.
Applications
- High Bright LED Driver
- White LED Torch (Flashlight)
Key features
- High Output Current Up to 1.5A
- Low Feedback Voltage: 0.1V
- Stable with a Ceramic Output Capacitor Low Quiescent Current
- Open Load LED Protection
- Over Temperature Shutdown
- Low Temperature Coefficient
- Standard SOP-8(EP) Packages Pb-Free Package
