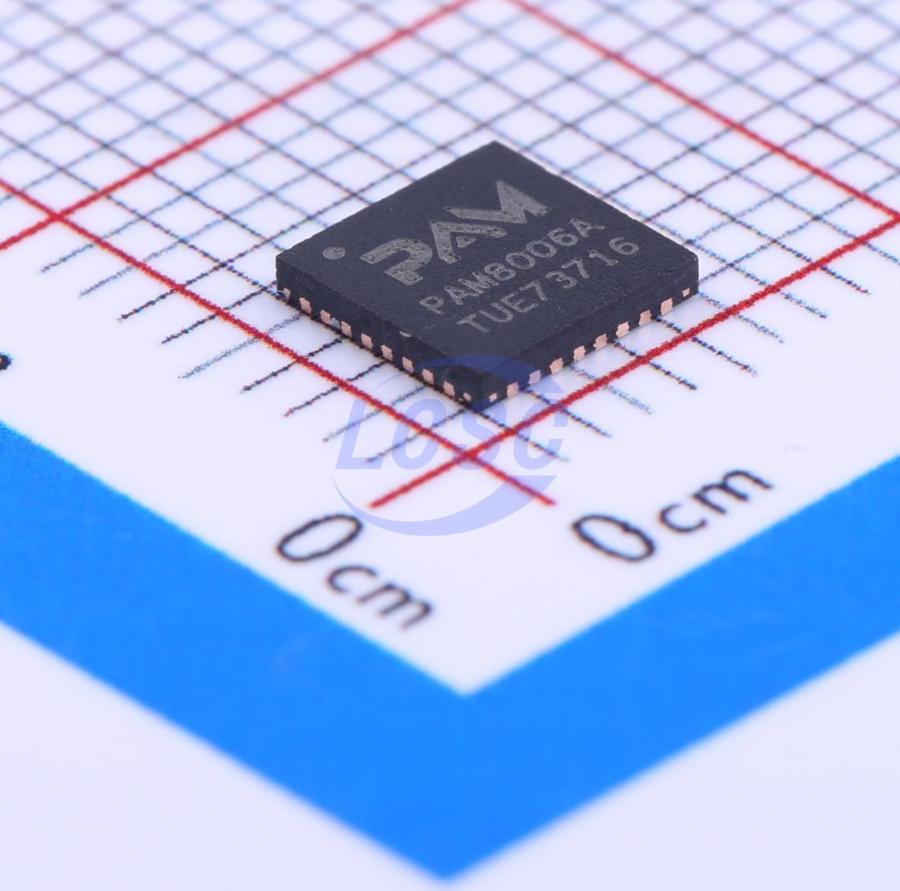

PAM8006ATR
16.5mA 8V~18V 2-Channel 10Wx2@8Ω Class D QFN-32-EP(5x5) Audio Amplifiers RoHS
10W Stereo Class D Audio Power Amplifier
- Manufacturer
- DIODES
- Manufacturer part #
- PAM8006ATR
- Store part #
- C167118
- Package / case
- QFN-32-EP(5x5)
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,999 in stock
#C167118
Stock & price checked 44 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹116.23 | ₹116.23 |
| 10+ | ₹92.81 | ₹928.10 |
| 30+ | ₹81.10 | ₹2,433.00 |
| 100+ | ₹69.60 | ₹6,960.00 |
| 500+ | ₹62.67 | ₹31,335.00 |
| 1,000+ | ₹58.98 | ₹58,980.00 |
1 × ₹116.23
₹116.23
excl. GST
₹137.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PAM8006ATR
₹116.23 for 1 + GST
Specifications
- Quiescent Current
- 16.5mA
- Voltage - Supply
- 8V~18V
- Features
- Enable/shutdown function;Overvoltage protection;Automatic mute/no-noise switch
- Total Harmonic Distortion + Noise (THD+N)
- 0.2%
- Operating Temperature
- -20℃~+85℃
- Signal-to-Noise Ratio
- 90dB
- Number of Inputs
- 2 Pairs Differential Inputs
- Speaker Channels
- 2-Channel
- Efficiency
- 90%
- Output Power
- 10Wx2@8Ω
- Class
- Class D
- Power Supply Rejection Ratio (PSRR)
- -65dB
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.193 g
Overview
The PAM8006A is a 15w (per channel) stereo Class- D audio amplifier which offers low THD+N (0.2%) low EMI and good PSRR thus high quality sound reproduction. The PAM8006A runs off of an 8V to 18V supply at much higher efficiency than competitors i.e. The PAM8006A only requires very few external components, significantly saving cost and board space. The PAM8006A is available in a QFN5x5- 32L package.
Applications
- Flat Monitor /LCD TVs
- Multi- Media Speaker System
- DVD Players, Game Machines
- Boom Box
- Music Instruments
Key features
- 15W x2 into a 8Ω speaker
- Low Noise: - 90dB
- Over 90% Efficiency
- With Shutdown/Mute Function
- Over Current, OVP, UVLO, Thermal and Short- Circuit Protection
- Low THD+N
- Power Limit with Non- Clip
- Low Quiescent Current
- Pop Noise Suppression
- Small Package Outlines: QFN5x5- 32L
- Pb- Free Package (RoHS Compliant)
