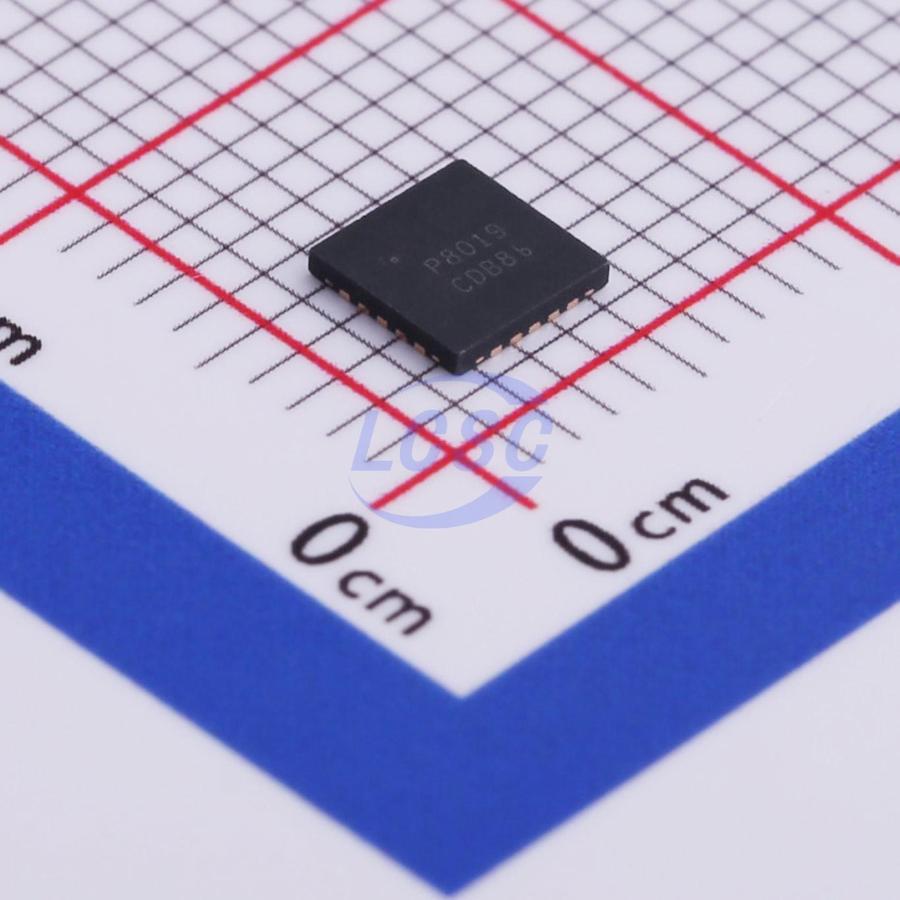

PAM8019KGR
7mA 2.8V~5.5V 2-Channel 3Wx2@4Ω Class D QFN-20-EP(4x4) Audio Amplifiers RoHS
3W Stereo Class-D Audio Amplifier and Class AB Headphone Driver with DC Volume Control, Non-Clip Power Limit and UVP
- Manufacturer
- DIODES
- Manufacturer part #
- PAM8019KGR
- Store part #
- C507850
- Package / case
- QFN-20-EP(4x4)
- Category
- Audio Amplifiers
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,535 in stock
#C507850
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.25 | ₹79.25 |
| 10+ | ₹63.61 | ₹636.10 |
| 30+ | ₹56.02 | ₹1,680.60 |
| 100+ | ₹48.20 | ₹4,820.00 |
| 500+ | ₹42.98 | ₹21,490.00 |
| 1,000+ | ₹40.60 | ₹40,600.00 |
1 × ₹79.25
₹79.25
excl. GST
₹93.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per tray
PAM8019KGR
₹79.25 for 1 + GST
Specifications
- Quiescent Current
- 7mA
- Voltage - Supply
- 2.8V~5.5V
- Features
- Filterless architecture;Built-in audio processing;Analog voltage gain;Enable/shutdown function;Overvoltage protection
- Total Harmonic Distortion + Noise (THD+N)
- 0.08%
- Operating Temperature
- -40℃~+85℃
- Signal-to-Noise Ratio
- 83dB
- Speaker Channels
- 2-Channel
- Efficiency
- 90%
- Output Power
- 3Wx2@4Ω
- Class
- Class D
- Power Supply Rejection Ratio (PSRR)
- 0.61dB
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tray
- Standard pack
- 3,000 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
The PAM8019 is a Stereo 3w Class D audio power amplifier for driving bridged- tied speakers and includes a Stereo Class AB amplifier for driving headphones. The advanced 64 step DC volume control minimizes external components allowing simple and accurate volume control over the gain range of +20dB (Volume = 0V) to - 60dB (Volume = 5V). Integrated non- clip power limit technology suppresses output automatically with programmable power limit, improving the sound quality and helping to protect the speakers. Programmable undervoltage protection (UVP) can be used to shut down the PAM8019 at a pre- determined voltage level helping to eliminate speaker pop by shutting down before the power supply collapses. The PAM8019 is available in the power efficient and space saving U- QFN4040- 20 package.
Key features
- 3w Stereo Class D Amplifier with Class AB Headphone Amplifier
- Filter Free and Low EMI Architecture
- Operating Voltage: 2.3V to 5.5V
- Low Quiescent Current of 7mA at a VDD of 5V
- 64 Step DC Volume Control with Hysteresis from -60dB to +20dB
- Output Power
- Class D Amplifier THD+N = 1%
- VDD = 5V, Load = 4Ω; PO = 2.4W / Load = 8Ω; PO = 1.4W
- Class D Amplifier THD+N = 10%
- VDD = 5V, Load = 4Ω; PO = 3.0W / Load = 8Ω; PO = 1.7W
- Class AB Headphone Amplifier
- VDD = 5V, Load = 32Ω; PO = 60mW
- Speaker or Headphone Select
- Non-Clip Power Limit (NcPL) Function
- OVP and Programmable UVP Protection
- Thermal and Overcurrent Protection with Auto-Recovery
- Power Enhance Package U-QFN4040-20
- Lead Free and Green Devices Available (RoHS Compliant)
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green Device
