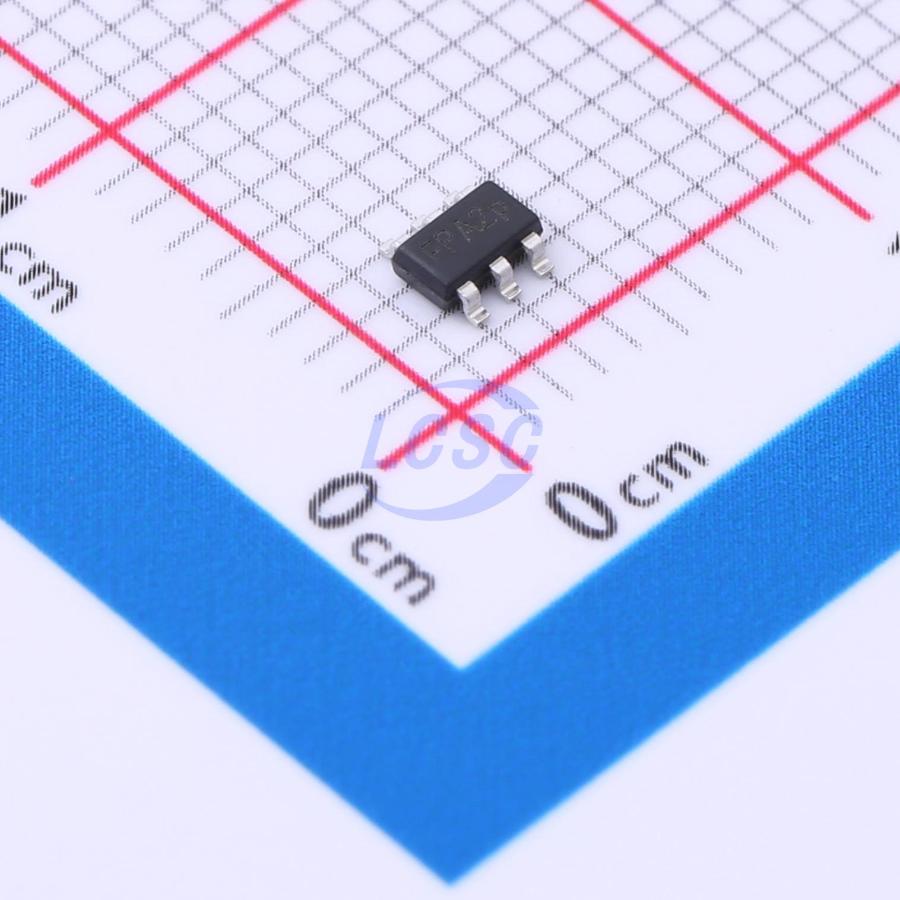

PAM8301AAF
4mA 2.5V~5.5V 1-Channel 1.5Wx1@8Ω Class D SOT-23-6 Audio Amplifiers RoHS
Filterless Class-D Mono Audio Amplifier
- Manufacturer
- DIODES
- Manufacturer part #
- PAM8301AAF
- Store part #
- C3001605
- Package / case
- SOT-23-6
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,910 in stock
#C3001605
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.77 | ₹213.85 |
| 50+ | ₹38.55 | ₹1,927.50 |
| 150+ | ₹36.74 | ₹5,511.00 |
| 500+ | ₹33.27 | ₹16,635.00 |
| 3,000+ | ₹32.27 | ₹96,810.00 |
| 6,000+ | ₹31.66 | ₹1,89,960.00 |
5 × ₹42.77
₹213.85
excl. GST
₹252.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PAM8301AAF
₹213.85 for 5 + GST
Specifications
- Quiescent Current
- 4mA
- Voltage - Supply
- 2.5V~5.5V
- Total Harmonic Distortion + Noise (THD+N)
- 0.2%
- Features
- Filterless architecture;Enable/shutdown function
- Operating Temperature
- -40℃~+85℃
- Signal-to-Noise Ratio
- 78dB
- Speaker Channels
- 1-Channel
- Efficiency
- 88%
- Output Power
- 1.5Wx1@8Ω
- Class
- Class D
- Power Supply Rejection Ratio (PSRR)
- 50dB
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.052 g
Overview
The PAM8301 is a 1.5W Class-D mono audio amplifier. Its low Total Harmonic Distortion + Noise (THD+N) feature offers high quality sound reproduction. The new filterless architecture allows the device to drive speaker directly instead of using low-pass output filters, therefore saving system cost and PCB area. With the same number of external components, the efficiency of the PAM8301 is much better than that of Class-AB cousins. It can optimize battery life thus is ideal for portable applications. The PAM8301 is available in SOT23-6 package.
Applications
- PMP/MP4
- GPS
- Portable Speakers
- Walkie Talkie
- Handsfree Phones/Speaker Phones
- Cellular Phones
Key features
- 1.5W Output at 10% THD with a 8Ω Load and 5V Power Supply
- Filterless, Low Quiescent Current and Low EMI
- High Efficiency up to 88%
- Superior Low Noise
- Short Circuit Protection
- Thermal Shutdown
- Few External Components to Save Space and Cost
- Tiny SOT23-6 Package Pb-Free Package
