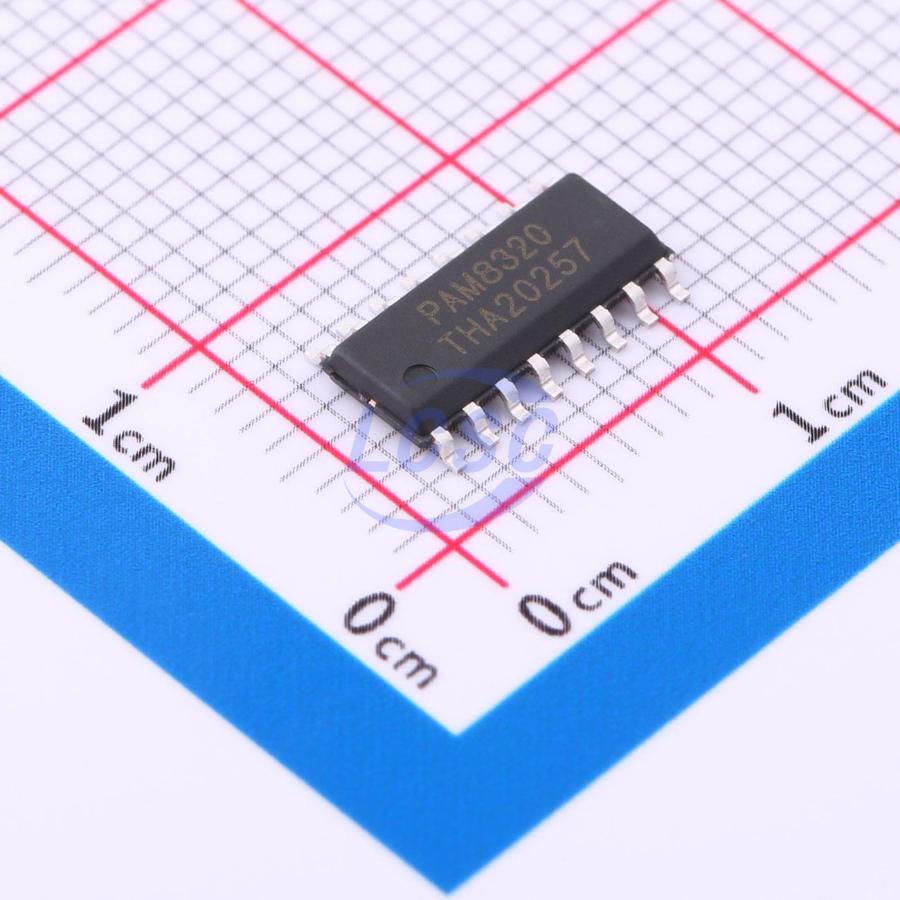

PAM8320RDR
4.5V~15V 15mA 1-Channel 20W×1@4Ω Class D SO-16-EP Audio Amplifiers RoHS
20W Mono Class-D Audio Amplifier
- Manufacturer
- DIODES
- Manufacturer part #
- PAM8320RDR
- Store part #
- C2895159
- Package / case
- SO-16-EP
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,403 in stock
#C2895159
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹81.44 | ₹81.44 |
| 10+ | ₹66.12 | ₹661.20 |
| 30+ | ₹58.57 | ₹1,757.10 |
| 100+ | ₹51.01 | ₹5,101.00 |
| 500+ | ₹46.61 | ₹23,305.00 |
| 1,000+ | ₹44.08 | ₹44,080.00 |
1 × ₹81.44
₹81.44
excl. GST
₹96.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
PAM8320RDR
₹81.44 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~15V
- Quiescent Current
- 15mA
- Features
- Enable/shutdown function;Overvoltage protection;Automatic mute/no-noise switch
- Total Harmonic Distortion + Noise (THD+N)
- 0.05%
- Operating Temperature
- -40℃~+85℃
- Signal-to-Noise Ratio
- 95dB
- Speaker Channels
- 1-Channel
- Efficiency
- 95%
- Output Power
- 20W×1@4Ω
- Class
- Class D
- Power Supply Rejection Ratio (PSRR)
- -60dB
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.278 g
Overview
The PAM8320 is an efficient 20W mono Class-D audio power amplifier, designed to drive speakers as low as 4Ω in a bridge-tied load configuration. Due to the low power dissipation and high efficiency of up to 95%, the device can be used without any external heat sink whilst playing music. The PAM8320 features short circuit protection, thermal shutdown, over voltage protection and under voltage lock-out. The PAM8320 is available in a SO-16EP package.
Applications
- PC Speaker
- Blue Tooth Speaker
- Home Sound Systems
- Active Speakers
- Docking stations
Key features
- Operates from 4.5V to 15V
- 20W into 4Ω BTL Load from 12V Supply
- Single-Ended Analog Input
- No Pop Noise for Start-up and Shut-down Sequences
- Internal Oscillator (No External Components Required)
- High Efficient Class-D Operation Eliminates Need for Heat Sinks
- Thermal and Short-Circuit Protection with Auto Recovery
- Over Voltage Protection and Under Voltage Lock-out
- Space-Saving Surface-Mount SO-16EP Package
- Pb-Free Package
