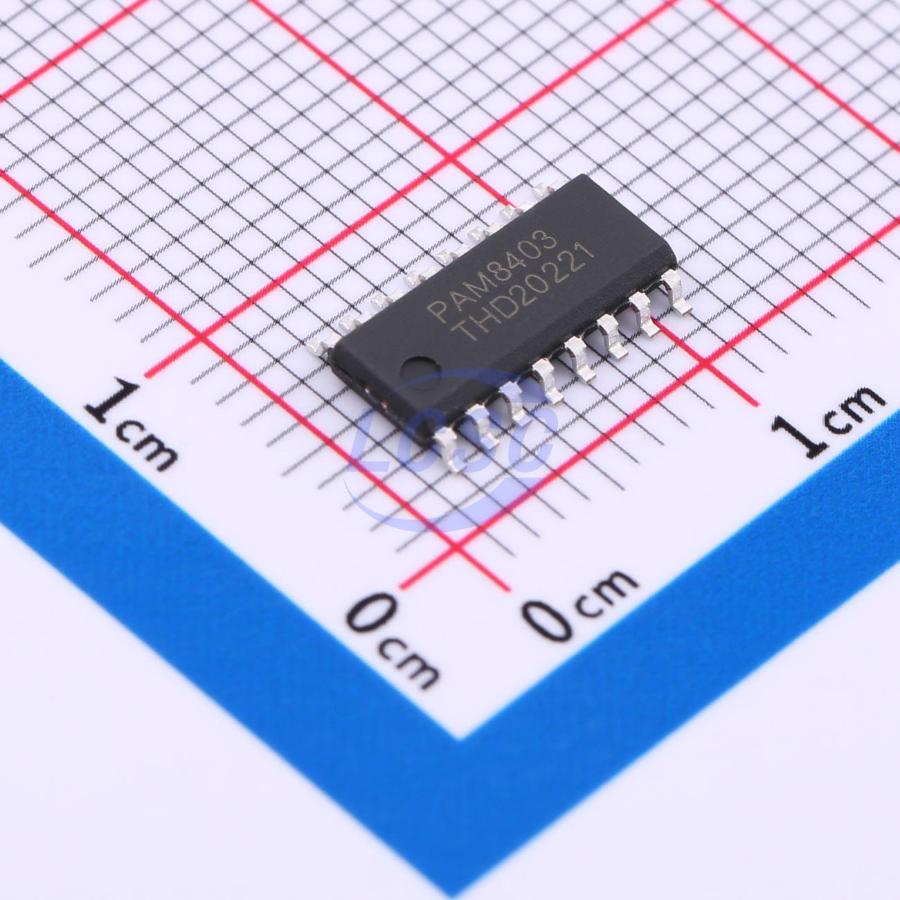

PAM8403
6.3mA 2.2V~5.5V 2-Channel 3Wx2@4Ω Class D SOP-16 Audio Amplifiers
3W Filterless Class-D Stereo Audio Power Divider
- Manufacturer
- Slkor
- Manufacturer part #
- PAM8403
- Store part #
- C5122557
- Package / case
- SOP-16
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,865 in stock
#C5122557
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.68 | ₹188.40 |
| 50+ | ₹30.20 | ₹1,510.00 |
| 150+ | ₹27.00 | ₹4,050.00 |
| 500+ | ₹22.99 | ₹11,495.00 |
| 3,000+ | ₹20.51 | ₹61,530.00 |
| 6,000+ | ₹19.45 | ₹1,16,700.00 |
5 × ₹37.68
₹188.40
excl. GST
₹222.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PAM8403
₹188.40 for 5 + GST
Specifications
- Quiescent Current
- 6.3mA
- Voltage - Supply
- 2.2V~5.5V
- Features
- Filterless architecture;Enable/shutdown function;Automatic mute/no-noise switch
- Operating Temperature
- -40℃~+85℃
- Number of Inputs
- 2 Single-Ended Inputs
- Speaker Channels
- 2-Channel
- Efficiency
- 90%
- Output Power
- 3Wx2@4Ω
- Class
- Class D
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.28 g
Overview
The PAM8403 stereo power amplifier delivers Class AB performance with Class D efficiency. Its low-noise, filterless architecture eliminates the output low-pass filter required by conventional Class D amplifiers. Minimal external components reduce PCB space and system cost, making it ideal for portable applications. The PAM8403 delivers 3W output power at efficiency above 85%, with system shutdown and mute control functions. A proprietary circuit topology enhances noise immunity and reduces RFI.
Applications
- LCD TVs, monitors
- Mobile handsfree phones
- Notebook computers
- Portable DVD players, gaming consoles
Key features
- Filterless Class-D amplifier with low quiescent current and low EMI
- Up to 3W output power at 4Ω load and 5V supply
- Up to 90% efficiency
- Low THD and low noise
- Short-circuit current protection
- Thermal protection
- Minimal external components for reduced board space and cost
- Package: SOP-16, lead-free
- Shutdown current 16uA
- Standby current 6.3mA
