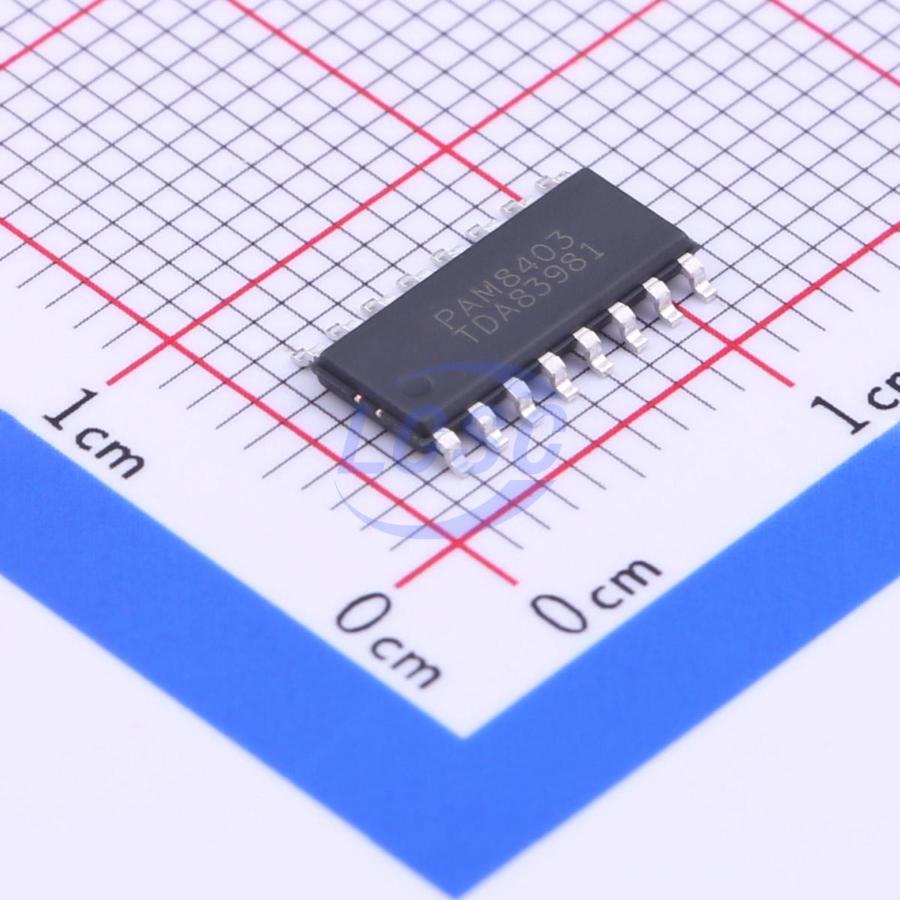

DIODES

PAM8403DR-H

2.8V~5.5V 2-Channel 3Wx2@4Ω Class D SOIC-16 Audio Amplifiers RoHS

SOIC-16ROHS3 CompliantActive

Filterless 3W Class-D Stereo Audio Amplifier

Manufacturer: DIODES
Manufacturer part #: PAM8403DR-H
Store part #: C17337
Package / case: SOIC-16
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,607 in stock

#C17337

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹59.54	₹59.54
10+	₹46.07	₹460.70
30+	₹40.42	₹1,212.60
100+	₹33.25	₹3,325.00
500+	₹30.20	₹15,100.00
1,000+	₹28.25	₹28,250.00

Quantity (min 1)

1 × ₹59.54

₹59.54

excl. GST

₹70.26 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

PAM8403DR-H

₹59.54 for 1 + GST

Specifications

Quiescent Current: 16mA;10mA;8mA
Voltage - Supply: 2.8V~5.5V
Features: Filterless architecture;Enable/shutdown function;Automatic mute/no-noise switch
Total Harmonic Distortion + Noise (THD+N): 0.15%;0.11%
Operating Temperature: -40℃~+85℃
Signal-to-Noise Ratio: 80dB
Speaker Channels: 2-Channel
Efficiency: 87%;83%
Output Power: 3Wx2@4Ω
Class: Class D
Power Supply Rejection Ratio (PSRR): -59dB;-58dB

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.264 g

Overview

The PAM8403 is a 3W, class- D audio amplifier. It offers low THD+N, allowing it to achieve high- quality sound reproduction. The new filterless architecture allows the device to drive the speaker directly, requiring no low- pass output filters, thus saving system cost and PCB area. With the same numbers of external components, the efficiency of the PAM8403 is much better than that of Class- AB cousins. It can extend the battery life, which makes it well- suited for portable applications. The PAM8403 is available in SOP- 16 package.
